How to select the ideal ProBell Atomiser configuration
Discover Graco’s ProBell Rotary Applicator models and build the perfect paint spraying solution.
Your robot or reciprocator set-up, the application and the material to be sprayed all have a considerable influence on choosing a suitable applicator. In this article, you’ll learn about the various ProBell models and discover exactly which solution fits your needs.
ProBellⓇ Rotary Bell Atomisers help you achieve superb finishing results and offer many other benefits. Compatible with both solvent-borne and waterborne paints and coatings, ProBell can be used with or without electrostatics, depending on your business’s needs.
Configurations
Graco’s ProBell series comes in three configurations that cover any possible robot or reciprocator set-up. All models are safe to use, easy to service and flexible.

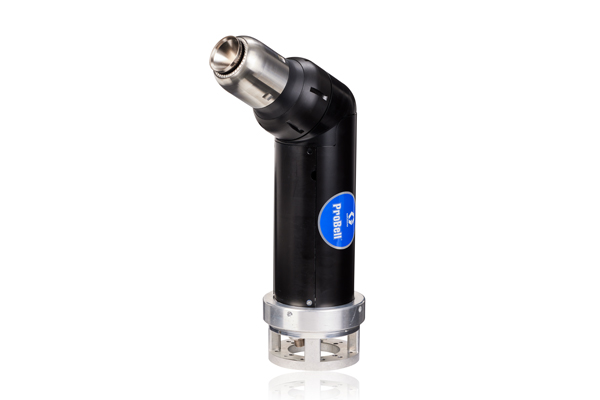

- Hollow Wrist Robot
The hollow wrist robot model makes maintenance easy with a quick disconnect plate that allows you to remove the applicator from the robot without touching the hose connections. The applicator’s tubing goes through the hollow wrist to prevent it moving around during the painting process.

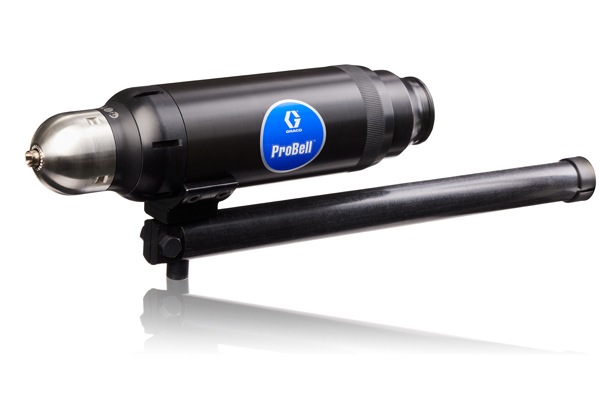

- Solid Wrist Robot
This compact model weighs in at 4 kg (9 lb) with electrostatics and 3.1 kg (6.9 lb) without. It is mounted in a fixed position.

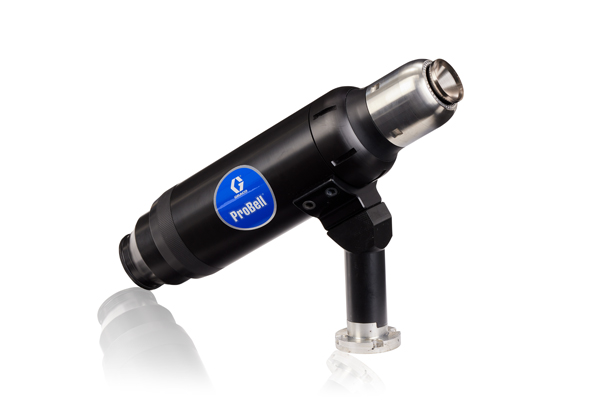

- Reciprocator or Fixed Mount
This model is used for reciprocators or fixed mounts. Thanks to its lightweight design, it can also be used for lower payload set-ups.
Bell cups
The ProBell’s bell cups are optimised for superior spraying with a variety of pattern sizes and flow rates. They are available in two aluminium finishes (including high wear for abrasive materials) or in a composite construction. Every bell cup is tested and delivered with a certificate indicating the spray pattern size. The precision-balanced cups meet stringent Graco requirements so you can be assured of the product’s quality.

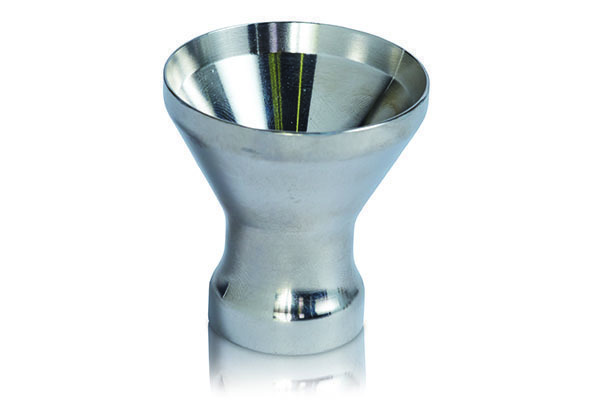

- Smooth edge cup
The smooth edge cup has optimum durability and works well for many metallics.

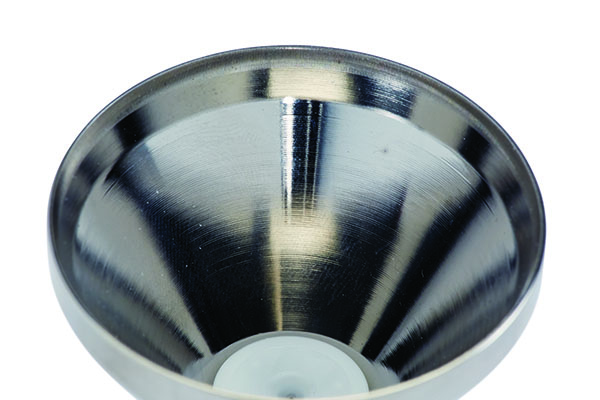

- Serrated bell cup
The serrated cup edge has equally spaced axial grooves that act as channels for paint flow. This produces uniform particles – ideal for atomising difficult material like clear coatings.
Specific configurations for every application
No matter what your specific application requires, we’ve got you covered. The ProBell combines flexible mounts with high-quality bell cups to provide the exact set-up you need. Whether you spray waterborne or solvent-borne material, with or without electrostatics, delivering high-quality results has never been easier.
