19.05 cm (7.5 in.) OD Flange Mount Agitator Motor (7.62 cm / 3 in. 150# ANSI Flange Mounting Holes), UL
Part Number: 25C454

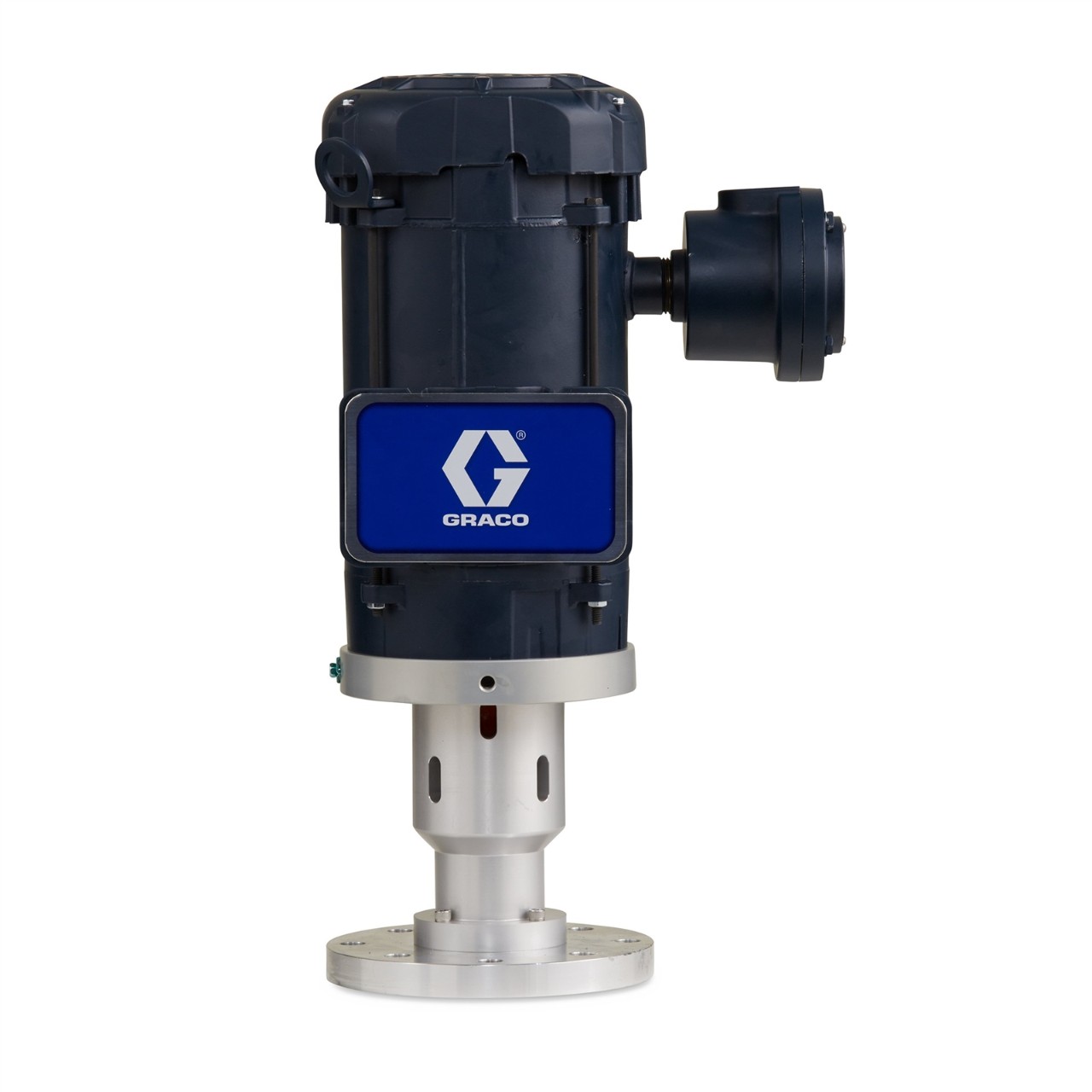

Image is for illustrative purposes only.
19.05 cm (7.5 in.) OD Flange Mount Agitator Motor (7.62 cm / 3 in. 150# ANSI Flange Mounting Holes), UL
Part Number: 25C454
Low shear, electric, direct drive agitator mixes and maintains suspension of industrial coatings stored in fluid tanks.
Product is Discontinued
Replacement Product Not Available
Features
Product Brochure
Low shear, electric, direct drive agitator mixes and maintains suspension of industrial coatings stored in fluid tanks.
For advanced control and energy savings, switch to electric agitators.
- Electric agitators are up to five times more efficient than pneumatic agitators
- Speed remains constant, regardless of material level in tank
- Low shear mixing ensures uniform particle dispersion without material degradation
- Quiet electric motor improves work environment
Specifications & Documents
Technical Specifications
Convert to Imperial| For Use With | Drum or Pressure Tank |
|---|---|
| Includes | Motor, Flange |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Speed (RPM) | 500 |
| Maximum Viscosity (cP) | 300 |
| Minimum Operating Temperature (°F) | 32 |
| Motor Type | Electric |
| Power Rating (HP) | 0.75 |
| Power Rating (kW) | 0.37 |
| Type | Agitator |
| Weight Range (lb) | 55-65 |
| Wetted Material | Stainless Steel |
| For Use With | Drum or Pressure Tank |
| Includes | Motor, Flange |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Speed (RPM) | 500 |
| Maximum Viscosity (cP) | 300 |
| Minimum Operating Temperature (°C) | 0 |
| Motor Type | Electric |
| Power Rating (kW) | 0.37 |
| Type | Agitator |
| Weight Range (kg) | 25-30 |
| Wetted Material | Stainless Steel |
