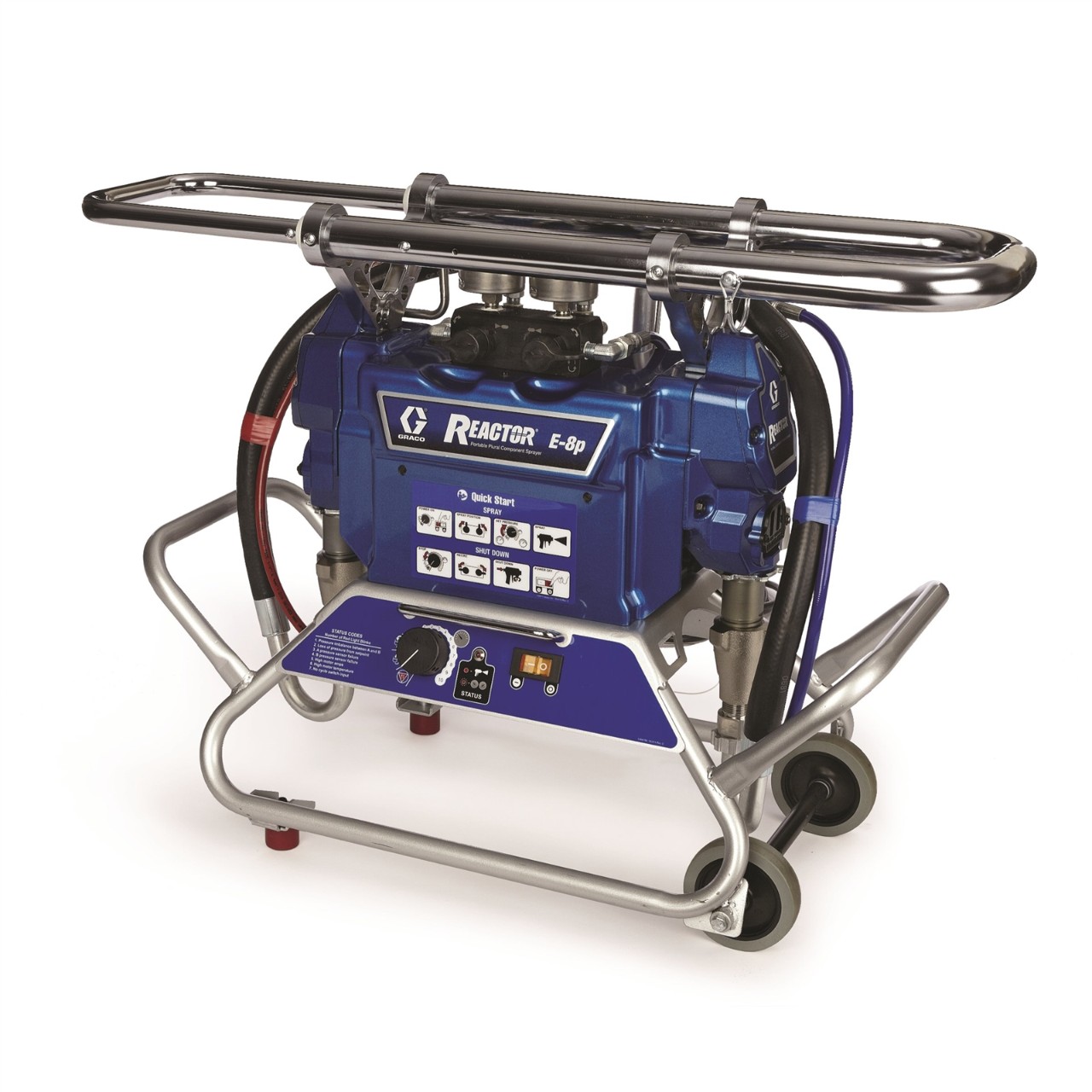

Reactor E-8P
Reactor E-8P Bare Sprayer, 120 V
Part Number: 259082



Reactor E-8P
Reactor E-8P Bare Sprayer, 120 V
Part Number: 259082
The Reactor E-8p Portable Plural-Component Sprayer offers the mobility and efficiency you need to complete small to medium sized joint filling jobs with ease. With easy control and the ability to pump directly from 5 Gallon (20 Liter) material pails, the Reactor E-8p can help you reduce work time an...
More InfoFeatures
Product BrochureThe Reactor E-8p Portable Plural-Component Sprayer offers the mobility and efficiency you need to complete small to medium sized joint filling jobs with ease. With easy control and the ability to pump directly from 5 Gallon (20 Liter) material pails, the Reactor E-8p can help you reduce work time and labor costs.
The Reactor E-8p is ideal for small to mid-sized no-heat joint fill applications

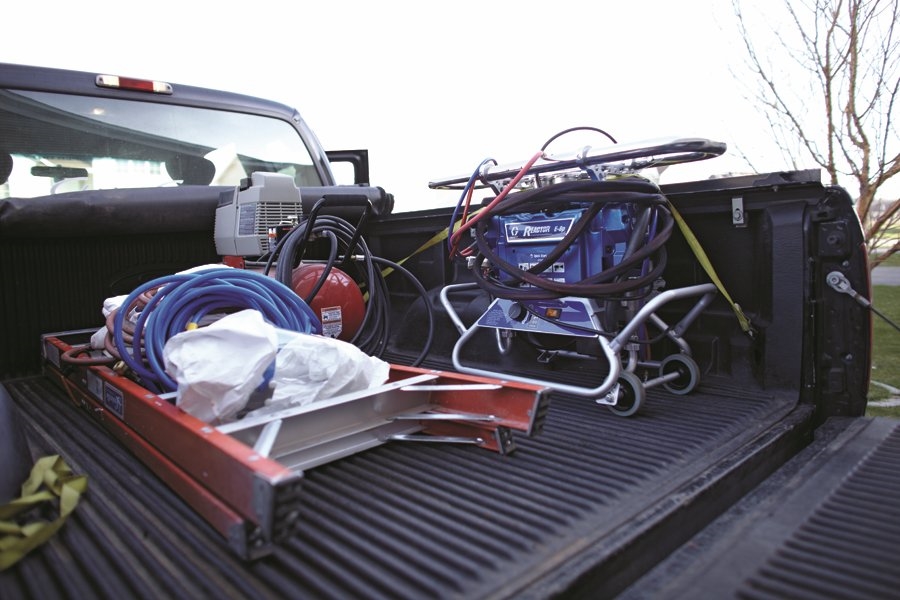

Lightweight and Portable
- Built in handles for easy carrying
- Weighs just 95 pounds (43 kg)
- Easy to maneuver

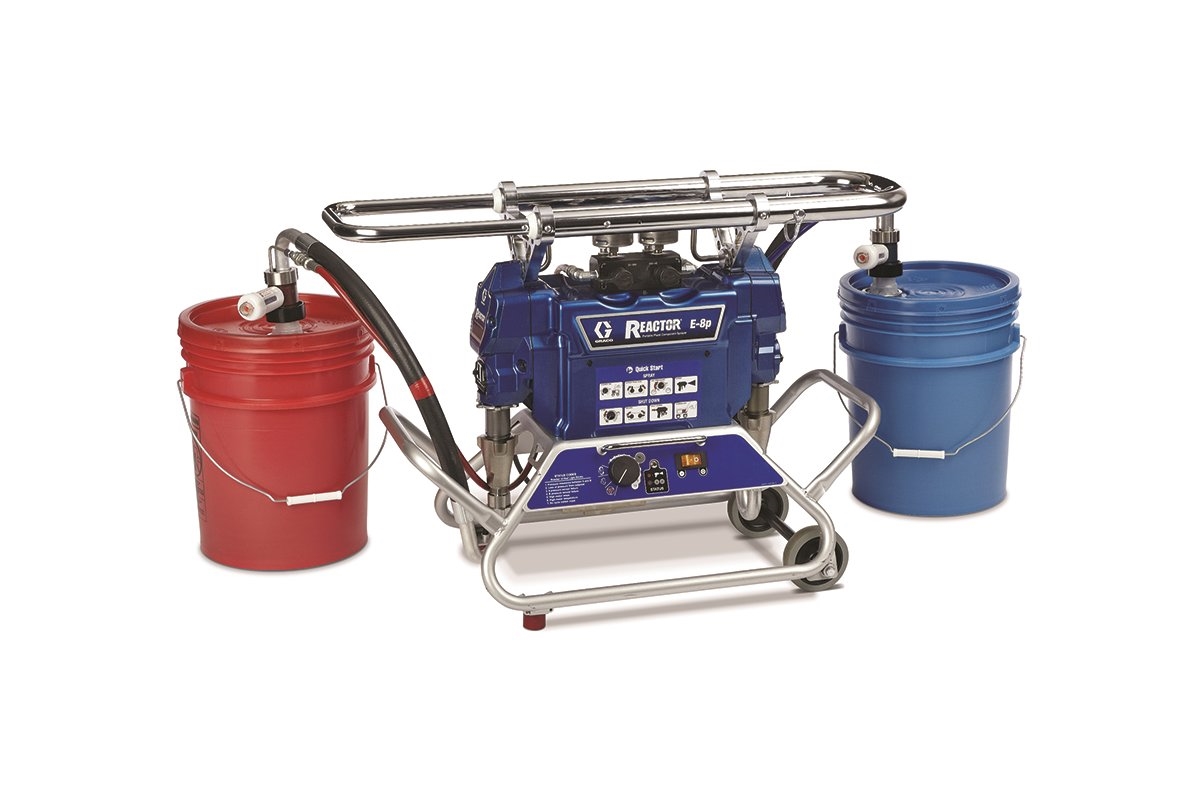

- Simple siphon feeding from 5 gal (19 L) buckets
Efficient and Fast
- Simple user controls
- Electric motor offers high performance while reducing operating costs
- Recommended maximum output of 0.25 gpm (.95 lpm)
Built for Maximum Usability
- Simple, single control knob operation
- Onboard hose wrap makes storing equipment simple and fast
- Plugs into standard electrical wall outlet
- Built-in suction lines allow for use with 5-gal (19 L) pails
Holster for Suction Lines
- Keeps tubes in place during transport; prevents drips.
Lightweight and Portable
- Easy to maneuver up and down stairs, wherever the job goes – only 95 lb (43 kg)
Alarm / Status Indicator
- Shuts down unit if off-ratio conditions exist – assures good quality foam at the job site
Desiccant Air Dryer
- Allows air to be drawn into pail; protects material from contamination.
Pressure Balance Valves
- Quick and easy balancing of system pressures enables correct start-up
Threaded Bucket Spout Connection
- Keeps your connection secure and prevents spills
Electric Motor
- Proven motor performance and reduced operating costs; plugs into a standard residential outlet
Specifications & Documents
Technical Specifications
Convert to MetricAir Inlet Size (in) | 1/4 |
---|---|
Air Outlet Size (in) | 1/4 |
Air Outlet Thread Type | NPSM |
Amperage (A) | 15 |
Application | Spray Foam |
Applicator Type | Manual |
Compatible Material | Plural Components |
Component Type | Two Component |
Construction | Aluminum, Brass, Carbide, Carbon Steel, Chrome, PTFE, Stainless Steel, UHMWPE |
Flush Type | Solvent |
Frequency (Hz) | 50/60 |
Material Application | Polyurethane Foam |
Maximum Flow Rate (lb/min) | 12 |
Maximum Hose Length (ft) | 105 |
Maximum Mix Ratio | 1:1 |
Maximum Working Pressure (MPa) | 14 |
Maximum Working Pressure (psi) | 2000 |
Model | Reactor |
Overall Depth (in) | 15.06 |
Overall Height (in) | 24.12 |
Overall Width (in) | 34.58 |
Power Rating (HP) | 2.41 |
Power Rating (W) | 1800 |
Power Rating (kW) | 1.8 |
Power Source | Electric |
Pressure Type | Low Pressure |
Product Type | Plural Component |
Series | E-8P |
Sound Pressure Level (dB(A)) | 94.4 |
Type | Plural Component Sprayer |
Air Inlet Size (cm) | 0.635 |
Air Inlet Size (in) | 1/4 |
Air Inlet Size (mm) | 6.35 |
Air Outlet Size (cm) | 0.635 |
Air Outlet Size (in) | 1/4 |
Air Outlet Size (mm) | 6.35 |
Air Outlet Thread Type | NPSM |
Amperage (A) | 15 |
Application | Spray Foam |
Applicator Type | Manual |
Compatible Material | Plural Components |
Component Type | Two Component |
Construction | Aluminum, Brass, Carbide, Carbon Steel, Chrome, PTFE, Stainless Steel, UHMWPE |
Flush Type | Solvent |
Frequency (Hz) | 50/60 |
Material Application | Polyurethane Foam |
Maximum Flow Rate (kg/min) | 5.44 |
Maximum Hose Length (m) | 32 |
Maximum Mix Ratio | 1:1 |
Maximum Working Pressure (MPa) | 14 |
Maximum Working Pressure (bar) | 138 |
Maximum Working Pressure (kPa) | 13800 |
Maximum Working Pressure (psi) | 2000 |
Model | Reactor |
Overall Depth (cm) | 38.3 |
Overall Depth (mm) | 383 |
Overall Height (cm) | 61.3 |
Overall Height (mm) | 613 |
Overall Width (cm) | 87.8 |
Overall Width (mm) | 878 |
Power Rating (W) | 1800 |
Power Rating (kW) | 1.8 |
Power Source | Electric |
Pressure Type | Low Pressure |
Product Type | Plural Component |
Series | E-8P |
Sound Pressure Level (dB(A)) | 94.4 |
Type | Plural Component Sprayer |
