TexSpray RTX 5500PX
TexSpray RTX 5500PX Texture Sprayer
Part Number: 17H581
TexSpray RTX 5500PX
TexSpray RTX 5500PX Texture Sprayer
Part Number: 17H581
The RTX 5500PX is configured for the large residential and commercial contractor needing a compact yet powerful texture sprayer capable of handling a wide variety of materials, such as synthetic stuccos, deck coatings, stone paints and more.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The RTX 5500PX is configured for the large residential and commercial contractor needing a compact yet powerful texture sprayer capable of handling a wide variety of materials, such as synthetic stuccos, deck coatings, stone paints and more.
The RTX Pro Exterior Series is configured to tackle exterior jobs of all sizes.
- 240 Volt AC High-Output Electric Motor
- Connects to standard 220-240 Volt L6-30 receptacles (3 wire) on most distribution boxes or generators
- Allows for trouble-free use of long extension cords with less circuit breaker issues
- Connects to standard 220-240 Volt L6-30 receptacles (3 wire) on most distribution boxes or generators
- Jobsite-Proven RotoFlex HD Pump
- Features an innovative braided sling that provides extra support to the RotoFlex pump tube
- 5.5 gpm (21 lpm) output to get the job done quickly
- SmartStart System
- Trigger-Activated Power
- Automatically start & stop the pump and compressor
- Soft-start eliminates material blasts to ensure a quality finish
- Reduces noise and vibration while extending pump and compressor life
- Twin-Cylinder Air Compressor
- More Air for Demanding Finishes
- High-output, maintenance-free design runs at lower RPM for longer life
- External Air Input
- Added Air Capability
- Allows external air to be used for demanding finishes
- Heavy-Duty Material/Air Hose
- Improved Handling & Flexibility
- Both hoses are permanently bonded together for easy handling
- FlexChange Pump Section
- Eliminate Costly Downtime
- Swap your RotoFlex pump in seconds - no tools required
- Adjustable Material Flow Control
- Maximum Control
- Quickly adjust material flow up or down with easy-to-read gauge
- Heavy-Duty Aluminum Trigger Gun
- Total Spray Control
- Select prime mode at the gun with Integrated Prime Selector
- Spray more material longer with durable aluminum design & oversized passages
- WideTex with Hardened Tips & Adapter
- Increase Productivity by Over 20%
- Spray uniform, repeatable patterns with less material and pressure adjustment
- 2X harder than Standard WideTex tips
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 10, 16 |
|---|---|
| Compatible Material | Simulated Acoustic, Drywall Mud, Elastomeric Coating, Deck Coating, Cement-Based Material |
| Construction | Brass, Aluminum, Plastic, Stainless Steel, Carbon Steel, Elastomer |
| Includes | Heavy-Duty Air Spray Trigger Gun, 1 1/4 in x 25 ft Heavy-Duty Material/Air Hose, 3 mm Round Nozzle, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle, 12 mm Round Nozzle, 4 mm WideTex Tip, 6 mm WideTex Tip, 8 mm WideTex Tip, 10 mm WideTex Tip, 12 mm WideTex Tip, XL WideTex Tip, WideTex Adapter |
| Material Application | Liquid Waterproofing |
| Maximum Flow Rate (GPM) | 5.5 |
| Maximum Hose Length (ft) | 100 |
| Maximum Sound Pressure Level (dB(A)) | 81.8 |
| Maximum Working Pressure (MPa) | 0.7 |
| Maximum Working Pressure (psi) | 100 |
| Minimum Generator Power (W) | 7500 |
| Model | TexSpray RTX |
| Overall Height (in) | 39.5 |
| Overall Length (in) | 33.75 |
| Overall Width (in) | 22.75 |
| Power Source | Electric |
| Product Series | Pro Exterior |
| Recommended Annual Usage | Up to 2500 gallons per year |
| Series | 5500PX |
| Type | Air-Powered Sprayer |
| Voltage (V) | 240 |
| Weight (lb) | 163 |
| Amperage (A) | 10, 16 |
| Compatible Material | Simulated Acoustic, Drywall Mud, Elastomeric Coating, Deck Coating, Cement-Based Material |
| Construction | Brass, Aluminum, Plastic, Stainless Steel, Carbon Steel, Elastomer |
| Includes | Heavy-Duty Air Spray Trigger Gun, 1 1/4 in x 25 ft Heavy-Duty Material/Air Hose, 3 mm Round Nozzle, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle, 12 mm Round Nozzle, 4 mm WideTex Tip, 6 mm WideTex Tip, 8 mm WideTex Tip, 10 mm WideTex Tip, 12 mm WideTex Tip, XL WideTex Tip, WideTex Adapter |
| Material Application | Liquid Waterproofing |
| Maximum Flow Rate (L/min) | 20.8 |
| Maximum Hose Length (m) | 30 |
| Maximum Sound Pressure Level (dB(A)) | 81.8 |
| Maximum Working Pressure (MPa) | 0.7 |
| Maximum Working Pressure (bar) | 6.9 |
| Maximum Working Pressure (kPa) | 690 |
| Maximum Working Pressure (psi) | 100 |
| Minimum Generator Power (W) | 7500 |
| Model | TexSpray RTX |
| Overall Height (cm) | 100 |
| Overall Height (mm) | 1000 |
| Overall Length (cm) | 86 |
| Overall Length (mm) | 860 |
| Overall Width (cm) | 58 |
| Overall Width (mm) | 580 |
| Power Source | Electric |
| Product Series | Pro Exterior |
| Recommended Annual Usage | Up to 2500 gallons per year |
| Series | 5500PX |
| Type | Air-Powered Sprayer |
| Voltage (V) | 240 |
| Weight (kg) | 74 |
Product Manuals
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 24S135 | KIT, GUN, TEXTURE, EXT | 1 | ea |

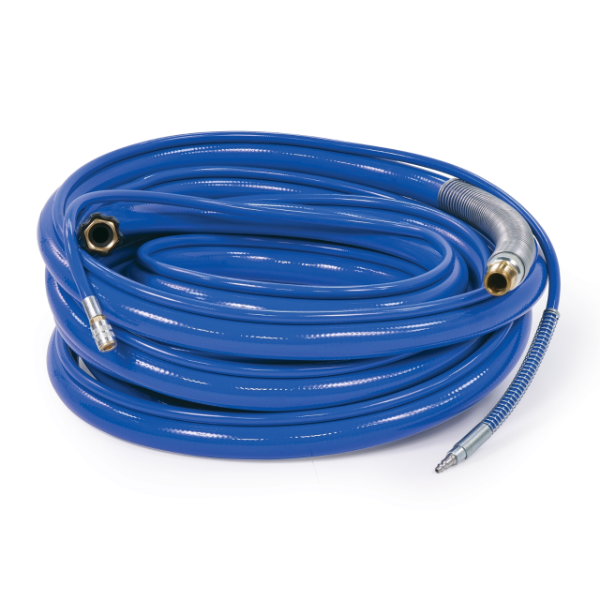

| 17L005 | Blue Solid Heavy-Duty Texture Hose Kit, 1 1/4 in x 25 ft | 1 | ea |
| 15C883 | 3 mm Texture Gun Nozzle | 1 | ea |
| 15C884 | 4 mm Texture Gun Nozzle | 1 | ea |
| 15C885 | 6 mm Texture Gun Nozzle | 1 | ea |
| 15C886 | 8 mm Texture Gun Nozzle | 1 | ea |
| 15C887 | 10 mm Texture Gun Nozzle | 1 | ea |
| 15C888 | 12 mm Texture Gun Nozzle | 1 | ea |
