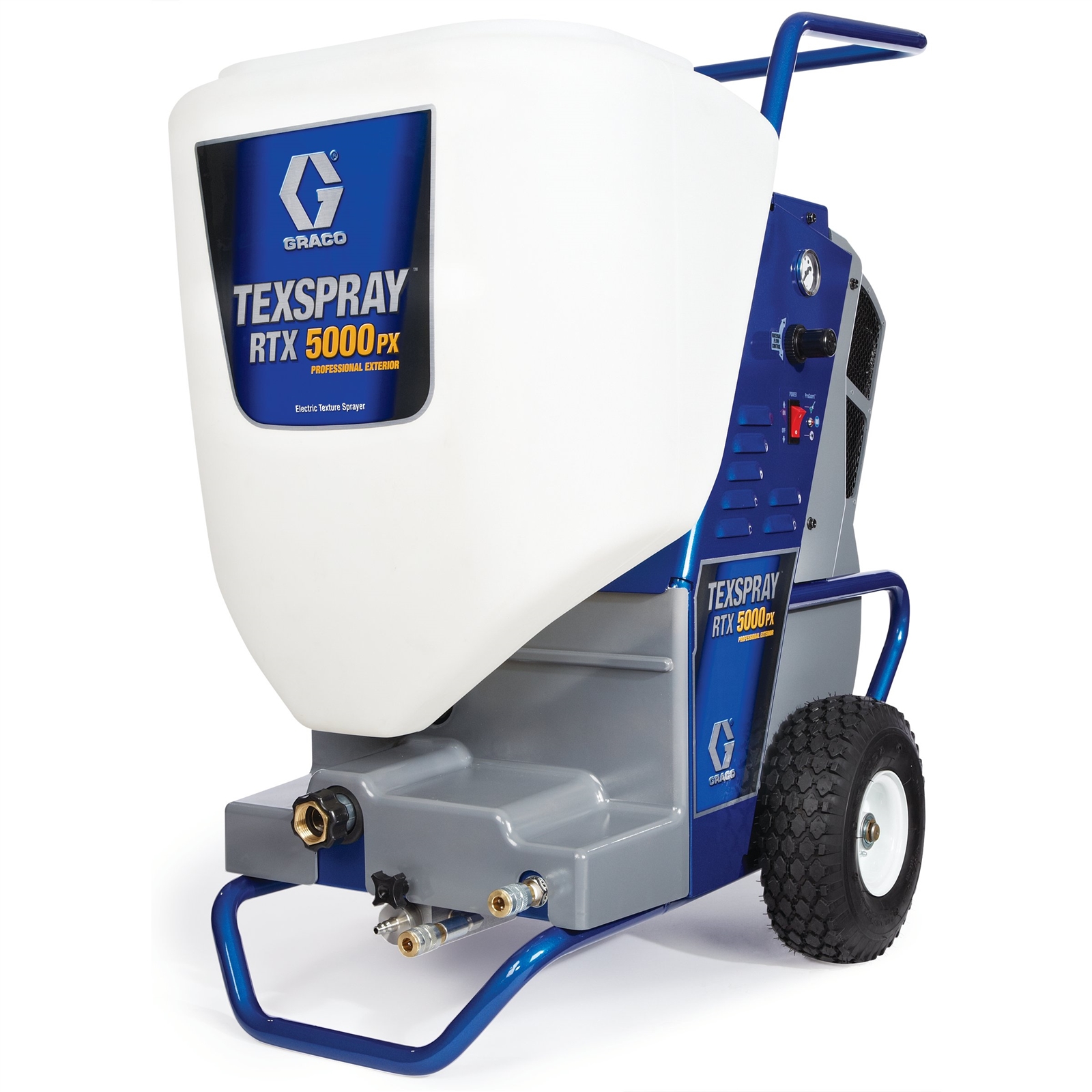

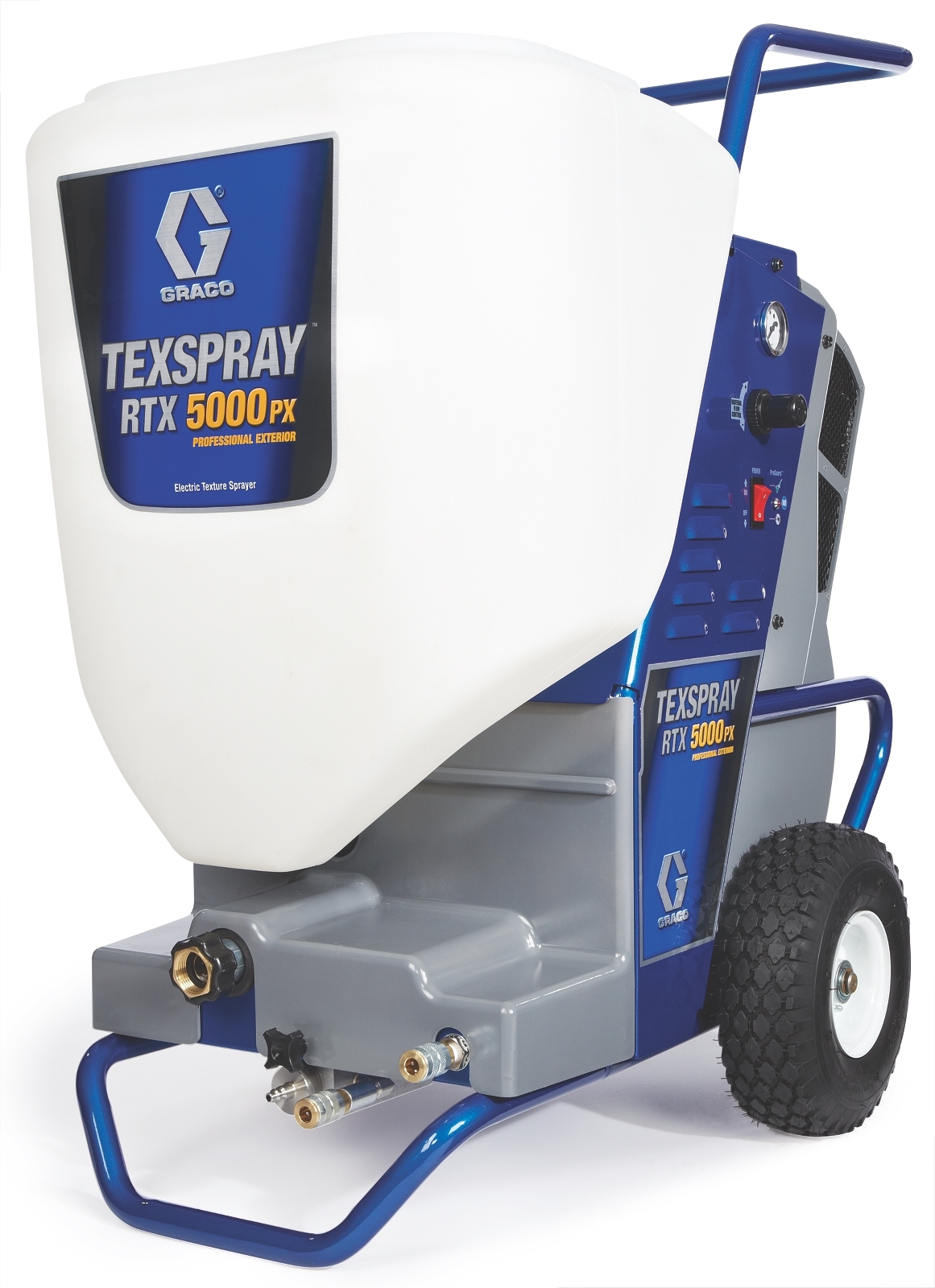

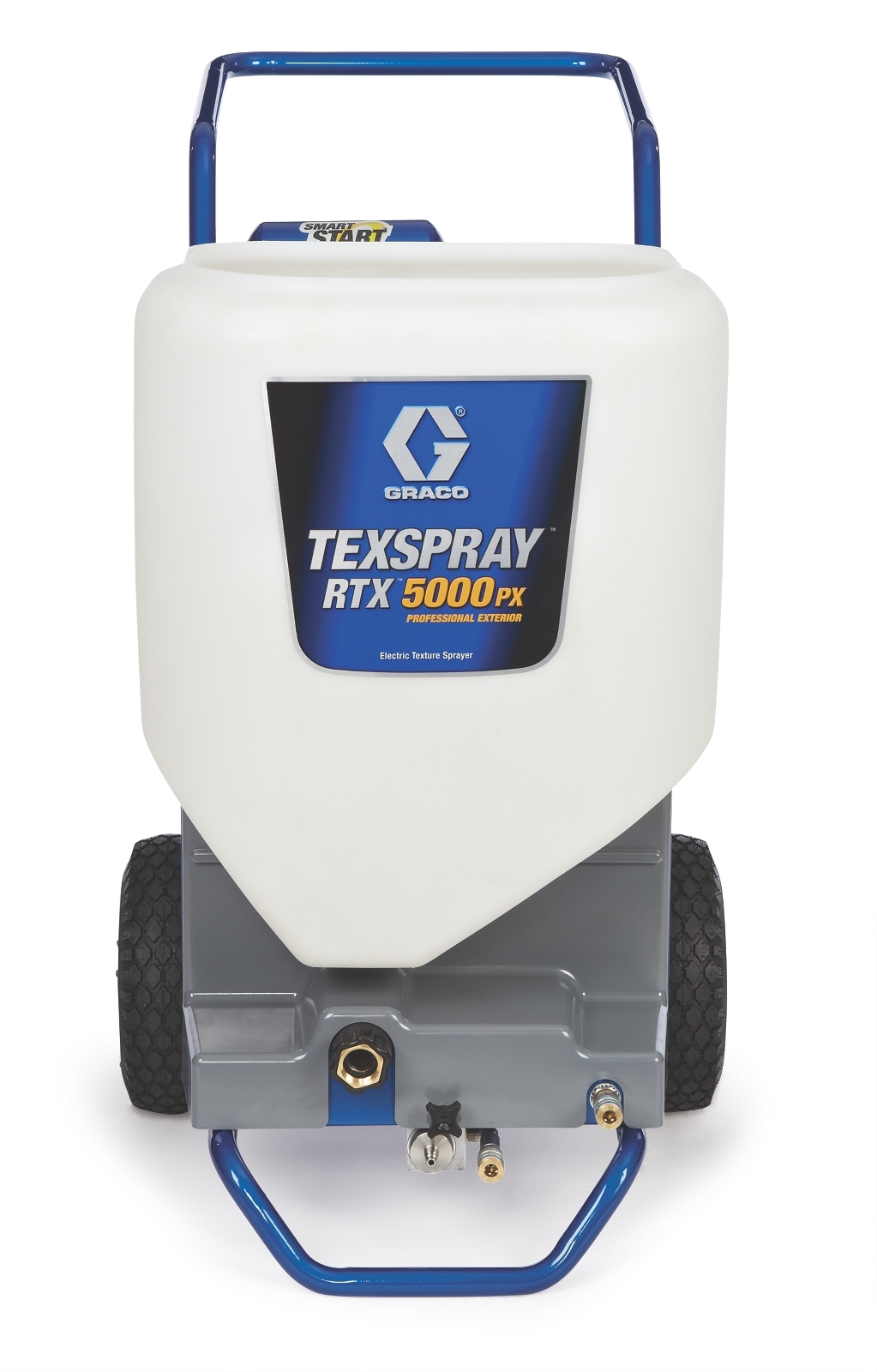

TexSpray RTX 5000PX

TexSpray RTX 5000PX Texture Sprayer

Part Number: 17H579

product image product image product image

TexSpray RTX 5000PX

TexSpray RTX 5000PX Texture Sprayer

Part Number: 17H579

The RTX 5000PX is ideal for the large residential and commercial contractor needing a compact yet powerful texture sprayer capable of handling a wide variety of materials, such as synthetic stuccos, deck coatings, stone paints and more.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The RTX 5000PX is ideal for the large residential and commercial contractor needing a compact yet powerful texture sprayer capable of handling a wide variety of materials, such as synthetic stuccos, deck coatings, stone paints and more.

The RTX Pro Exterior Series is configured to tackle exterior jobs of all sizes. Ideal for the large residential and commercial contractor needing a compact yet powerful texture sprayer capable of handling a wide variety of materials, such as synthetic stuccos, deck coatings, stone paints and more.

  • Jobsite-Proven RotoFlex HD Pump
    • Features an innovative braided sling that provides extra support to the RotoFlex pump tube
    • 5.0 gpm (19 lpm) output to get the job done quickly
  • SmartStart System
    • Trigger-Activated Power
    • Automatically start & stop the pump and compressor
    • Soft-start eliminates material blasts to ensure a quality finish
    • Reduces noise and vibration while extending pump and compressor life
  • Twin-Cylinder Air Compressor
    • More Air for Demanding Finishes
    • High-output, maintenance-free design runs at lower RPM for longer life
  • 120V AC High-Output Electric Motor
    • Improved Power and Performance
    • Optimized single-motor design operates air compressor and RotoFlex pump
  • External Air Input
    • Added Air Capability
    • Allows external air to be used for demanding finishes
  • Heavy-Duty Material/Air Hose
    • Improved Handling & Flexibility
    • Both hoses are permanently bonded together for easy handling
  • FlexChange Pump Section
    • Eliminate Costly Downtime
    • Swap your RotoFlex pump in seconds - no tools required
  • Adjustable Material Flow Control
    • Maximum Control
    • Quickly adjust material flow up or down with easy-to-read gauge
  • Heavy-Duty Aluminum Trigger Gun
    • Total Spray Control
    • Select prime mode at the gun with Integrated Prime Selector
    • Spray more material longer with durable aluminum design & oversized passages
  • WideTex with Hardened Tips & Adapter
    • Increase Productivity by Over 20%
    • Spray uniform, repeatable patterns with less material and pressure adjustment
    • 2X harder than Standard WideTex tips

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 15, 20
Compatible Material Coating, Drywall Mud, Elastomer, Simulated Acoustic
Construction Aluminum, Brass, Elastomer, Plastic, Carbon Steel, Stainless Steel
Hopper Capacity (gal) 15

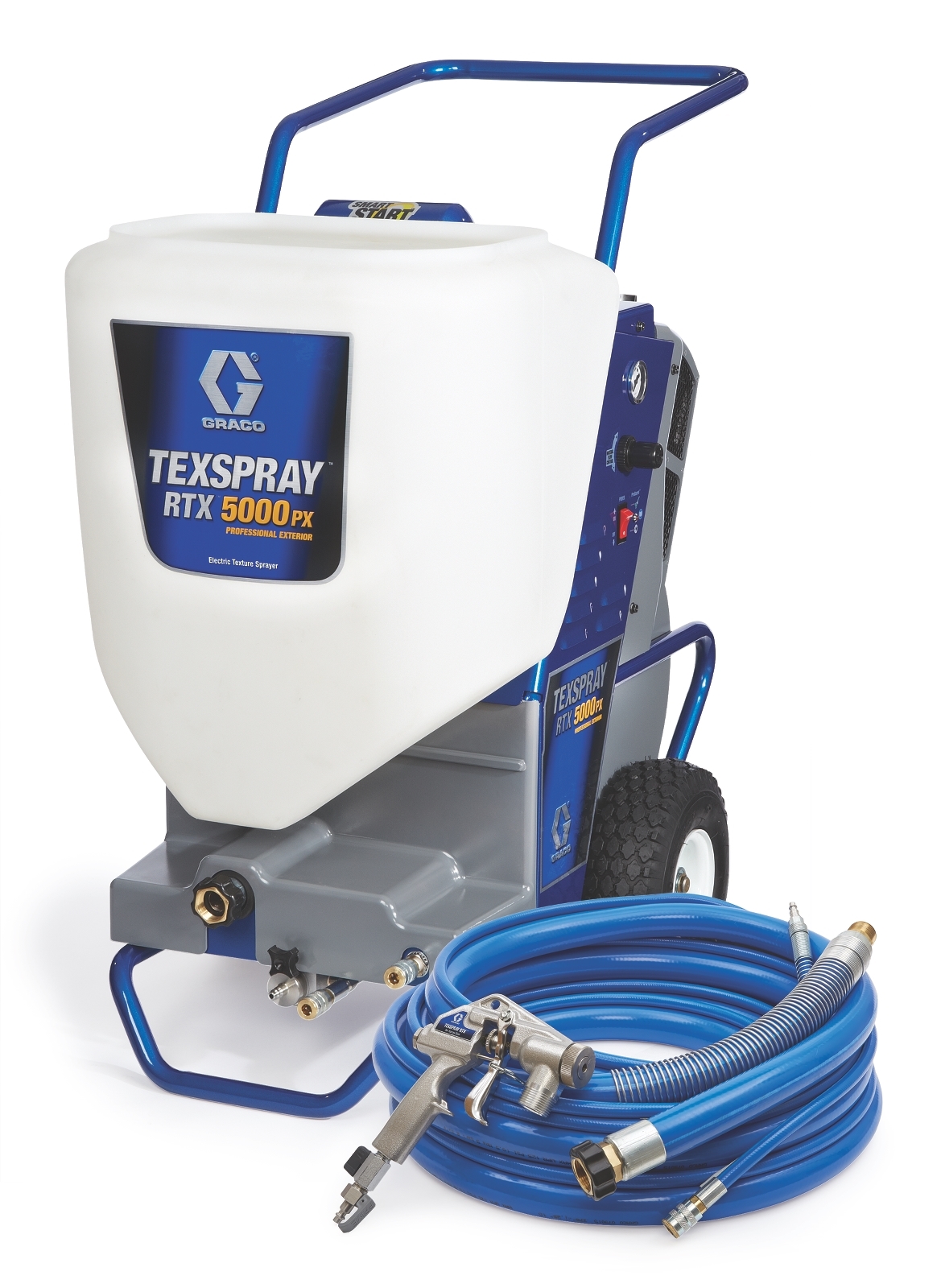

Includes Heavy-Duty Air Spray Trigger Gun, 1 1/4 in x 25 ft Heavy-Duty Material/Air Hose, 3 mm Round Nozzle, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle, 12 mm Round Nozzle, 4 mm WideTex Tip, 6 mm WideTex Tip, 8 mm WideTex Tip, 10 mm WideTex Tip, 12 mm WideTex Tip, XL WideTex Tip, WideTex Adapter
Material Application Liquid Waterproofing
Maximum Flow Rate (GPM) 5
Maximum Hose Length (ft) 100
Maximum Sound Pressure Level (dB(A)) 81.8
Maximum Tip Size (in) 0.473
Maximum Working Pressure (MPa) 0.7
Maximum Working Pressure (psi) 100
Minimum Generator Power (W) 7500
Model TexSpray RTX
Overall Height (in) 39.5
Overall Length (in) 33.75
Overall Width (in) 22.75
Power Rating (HP) 2
Power Source Electric
Product Series Pro Exterior
Recommended Annual Usage Up to 2500 gallons per year
Series 5000PX
Type Air-Assisted Airless Sprayer
Voltage (V) 120
Weight (lb) 174
Amperage (A) 15, 20
Compatible Material Coating, Drywall Mud, Elastomer, Simulated Acoustic
Construction Aluminum, Brass, Elastomer, Plastic, Carbon Steel, Stainless Steel
Hopper Capacity (L) 57
Includes Heavy-Duty Air Spray Trigger Gun, 1 1/4 in x 25 ft Heavy-Duty Material/Air Hose, 3 mm Round Nozzle, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle, 12 mm Round Nozzle, 4 mm WideTex Tip, 6 mm WideTex Tip, 8 mm WideTex Tip, 10 mm WideTex Tip, 12 mm WideTex Tip, XL WideTex Tip, WideTex Adapter
Material Application Liquid Waterproofing
Maximum Hose Length (m) 30.5
Maximum Sound Pressure Level (dB(A)) 81.8
Maximum Tip Size (cm) 1.2009
Maximum Tip Size (in) 0.473
Maximum Tip Size (mm) 12
Maximum Working Pressure (MPa) 0.7
Maximum Working Pressure (bar) 6.9
Maximum Working Pressure (kPa) 690
Maximum Working Pressure (psi) 100
Minimum Generator Power (W) 7500
Model TexSpray RTX
Overall Height (cm) 100
Overall Height (mm) 1000
Overall Length (cm) 86
Overall Length (mm) 860
Overall Width (cm) 58
Overall Width (mm) 580
Power Source Electric
Product Series Pro Exterior
Recommended Annual Usage Up to 2500 gallons per year
Series 5000PX
Type Air-Assisted Airless Sprayer
Voltage (V) 120
Weight (kg) 78.9

What's Included

Part No. Description Qty Unit
24S135 KIT, GUN, TEXTURE, EXT 1 ea
17L005 Blue Solid Heavy-Duty Texture Hose Kit, 1 1/4 in x 25 ft 1 ea
15C883 3 mm Texture Gun Nozzle 1 ea
15C884 4 mm Texture Gun Nozzle 1 ea
15C885 6 mm Texture Gun Nozzle 1 ea
15C886 8 mm Texture Gun Nozzle 1 ea
15C887 10 mm Texture Gun Nozzle 1 ea
15C888 12 mm Texture Gun Nozzle 1 ea

Repair Parts

Part No. Description
17H708 CORD, POWER
24S126 KIT, CONTROL BOARD, 120V
24S135 KIT, GUN, TEXTURE, EXT
24S145 KIT, REPAIR, FLOW SWITCH
17L005 Blue Solid Heavy-Duty Texture Hose Kit, 1 1/4 in x 25 ft
24S147 KIT,REPAIR,MOTOR
120660 SWITCH, POWER
120059 SWITCH, ROCKER
