TexSpray GTX 2000EX

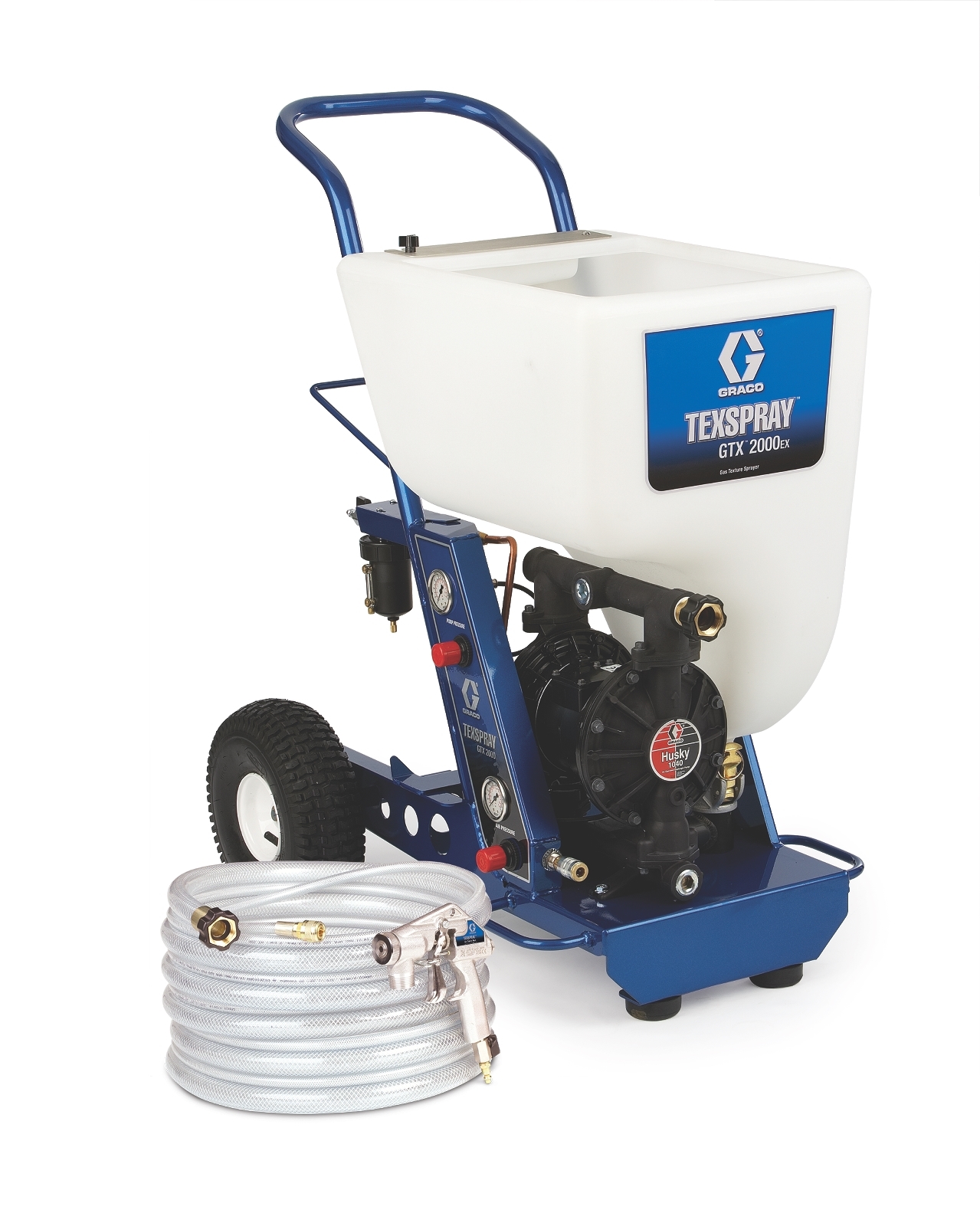

TexSpray GTX 2000EX Air-Powered Texture Sprayer with Graco Trigger Gun
Part Number: 257030
TexSpray GTX 2000EX
TexSpray GTX 2000EX Air-Powered Texture Sprayer with Graco Trigger Gun
Part Number: 257030
A highly portable texture system for both smooth materials and those with fine aggregates, the GTX 2000EX is the ideal solution for drywall muds, deck coatings, and exterior aggregate acrylic and elastomeric finishes.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
A highly portable texture system for both smooth materials and those with fine aggregates, the GTX 2000EX is the ideal solution for drywall muds, deck coatings, and exterior aggregate acrylic and elastomeric finishes.
High-Performance Solutions for Heavy-Duty Jobs. Powered by your external air compressor, this air-powered texture solution gets the job done fast — whether coating a large interior surface or applying an exterior aggregate finish on a large commercial job.
- Husky 1040 Double Diaphragm Pump
- Jobsite Proven Performance
- Texture delivery rates to 4.0 gpm from durable, high-output 1-inch pump
- Durable, User-Friendly Spraying
- Air Spray Heavy-Duty Trigger Gun
- Durable, User-Friendly Spraying
- Pump heavy mud mixes and larger aggregate with oversized fluid passages
- Quick nozzle changes with extra-coarse gun head threads
- Largest 17-Gallon (64 Liter) Capacity Hopper
- Longer Spray Time
- Easy cleanup and removal with no-tools
- Separate Pump/Gun Air Controls
- Complete Control
- Produce precise, consistent and repeatable texture finishes
- Skip-Bond Material/Air Hose
- Improved Handling & Flexibility
- Both hoses are permanently bonded together for easy handling
- Oversized grip with no-tools hose connection
- On-Board Air Filtration
- Moisture Build-Up Eliminated
- Automatically filters air to keep your sprayer running at optimal performance
- Texture Applications
- Simulated Acoustic (Popcorn)
- Orange Peel & Fine Splatter
- Splatter
- Knockdown
- Textured Acrylics & Elastomerics
- EIFS & Synthetic Stucco Finish Coats
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Primers, Stains, Acrylics, Enamel, Latex, Interior Paint, Exterior Paint |
|---|---|
| Construction | Acetal, Aluminum, Brass, Nitrile Rubber, PVC, Polyethylene, Stainless Steel, UHMWPE, Zinc-Plated Carbon Steel |
| Features | Large Capacity Hopper, On-Board Air Filtration, Separate Pump/Gun Air Controls |
| Includes | Heavy-Duty Air Spray Trigger Gun, 1 in x 25 ft Bonded Materia/Airl Hose, 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, 12 mm Nozzles |
| Maximum Flow Rate (GPM) | 4.0 |
| Maximum Hose Length (ft) | 100 |
| Maximum Working Pressure (MPa) | 0.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | TexSpray GTX |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Length (in) | 22 |
| Overall Width (in) | 24.0340 |
| Phase | 1 |
| Power Rating (HP) | 2.2 |
| Power Rating (kW) | 1.65 |
| Power Source | Air |
| Series | 2000EX |
| Type | Airless Sprayer |
| Weight (lb) | 110 |
| Compatible Material | Primers, Stains, Acrylics, Enamel, Latex, Interior Paint, Exterior Paint |
| Construction | Acetal, Aluminum, Brass, Nitrile Rubber, PVC, Polyethylene, Stainless Steel, UHMWPE, Zinc-Plated Carbon Steel |
| Features | Large Capacity Hopper, On-Board Air Filtration, Separate Pump/Gun Air Controls |
| Includes | Heavy-Duty Air Spray Trigger Gun, 1 in x 25 ft Bonded Materia/Airl Hose, 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, 12 mm Nozzles |
| Maximum Flow Rate (L/min) | 15.1 |
| Maximum Hose Length (m) | 30 |
| Maximum Working Pressure (MPa) | 0.8 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | TexSpray GTX |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Length (cm) | 66 |
| Overall Length (mm) | 558.8 |
| Overall Width (cm) | 61 |
| Overall Width (mm) | 610.4636 |
| Phase | 1 |
| Power Rating (kW) | 1.65 |
| Power Source | Air |
| Series | 2000EX |
| Type | Airless Sprayer |
| Weight (kg) | 50 |
Product Manuals
