GrindLazer
Surface Preparation Systems
Graco's GrindLazer Line-up
From the Standard to High Production Series, Graco provides the ultimate line-up of surface preparation and line removal equipment. This recently expanded offering of scarifier systems delivers the industry's most complete line of surface preparation systems for any application. Backed by a solid reputation of proven quality, maximum performance and unmatched on-the-job productivity, these GrindLazer scarifiers are designed to exceed the professional contractor's standards for quality and performance.
Powerful solutions for every scarifier application
STANDARD SERIES
Compact drum cutter models for basic surface prep, repairs and line removal.
PROFESSIONAL SERIES
Heavy-duty drum cutter models for all surface prep, repairs and line removal needs.
HIGH PRODUCTION SERIES
Ideal for high-production applications including surface prep, line removal, levelling and inlay.
Download the GrindLazer brochure

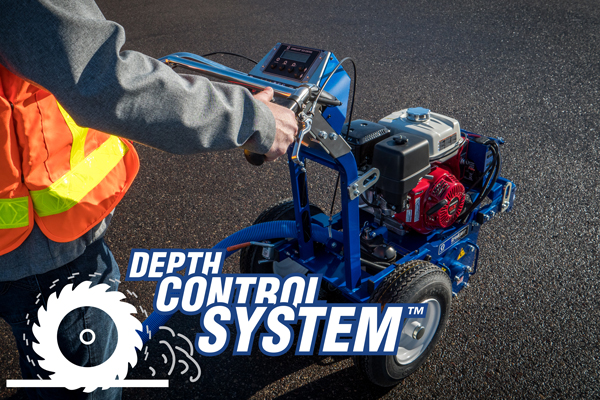

GrindLazer Depth Control System (DCS)
Experience the easiest depth control scarifier ever built
The revolutionary new Depth Control System from Graco. Finish every job faster with unmatched accuracy and “on-the-fly” depth control with the simple push of a button.
- Eliminate measuring & guesswork
- Quickly and accurately adjust cutter depth “on-the-fly”
- Easily align with ever-changing terrain
- Consistent cut depth for inlay applications
- Eliminate damage due to “dropped drums”

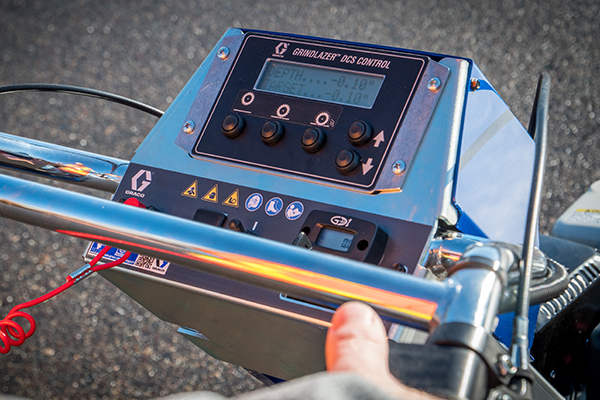

DCS features
Ultimate control & Application flexibility
- User settable “zero point” to match cutter assembly
- Displays “active depth” from zero point
- Imperial and metric units
- Robust design stands up to harsh use
- Fully encapsulated electronic components
- Ultimate protection from vibration, jobsite, and weather conditions

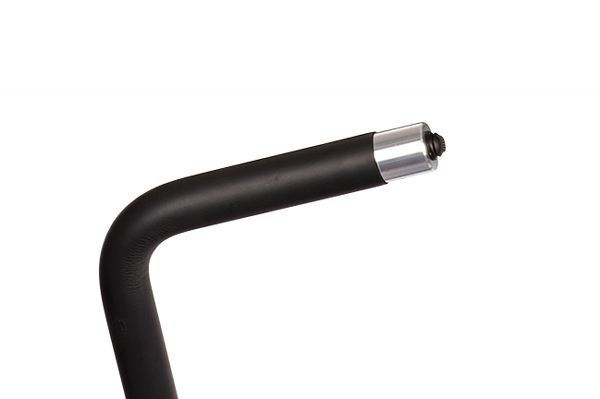

Remote handlebar switch
- Control cut depth while keeping both hands on the GrindLazer, increasing safety and reducing fatigue
- Highly durable, military-grade switch

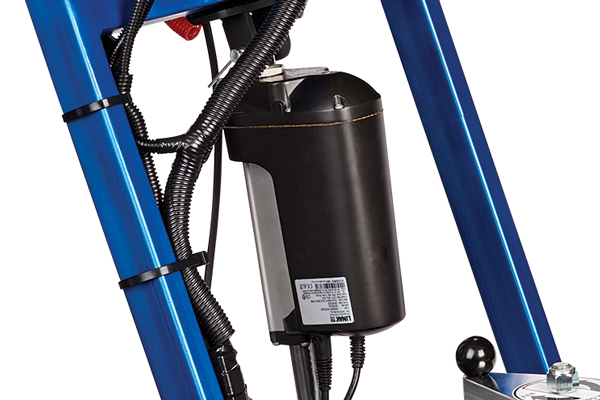

Maintenance-Free Design
- Linear drive delivers consistent, accurate movement
- High-speed design for fast on-the-fly adjustments
- Unique sealed case resists water, dust and debris
GrindLazer
Standard Series
Typical applications: Traffic paint removal, thermoplastic removal and smoothing uneven surfaces
Standard Series |
||
 |
 |
 |
| STANDARD SERIES | DC87 G | DC89 G |
| Part number | 25M842 | 25M843 |
| Cutter type | Drum | Drum |
| Max. working width | 20 cm (8 in) | 20 cm (8 in) |
| Drum diameter | 12.5 cm (5 in) | 12.5 cm (5 in) |
| Engine/Motor - cm3 (HP) | Honda 200 (6.5 HP) | Honda 270 (9 HP) |
| Engine start | Pull Start | Pull Start |
| Air Filter | Cyclone | Cyclone |
| Tach/hour meter | Yes | Yes |
| Max. cut rate | 30 m²/hr (300 sq. ft/hr) | 40 m²/hr (400 sq. ft/hr) |
| Vacuum port | Yes | Yes |
| Product link | LEARN MORE | LEARN MORE |
GrindLazer
Professional Series
Typical applications: Traffic paint removal, thermoplastic removal, smoothing uneven surfaces and epoxy removal
Pro series |
|||||
 |
 |
 |
 |
||
| Pro DC1013 G | Pro RC813 G | Pro RC813 G DCS | |||
| Part number | 25M846 | 25M847 | 25N669 | ||
| Cutter type | Drum | Rotary | Rotary | ||
| Max. working width | 25 cm (10 in) | 20 cm (8 in) | 20 cm (8 in) | ||
| Drum diameter | 17.5 cm (7 in) | N/A | N/A | ||
| Engine/Motor - cm3 (HP) | Honda 390 (13 HP) | Honda 390 Vertical (13 HP) | Honda 390 Vertical (13 HP) | ||
| Engine start | Pull Start | Electric Start | Electric Start | ||
| Air Filter | Cyclone | Standard | Standard | ||
| Tach/hour meter | Yes | Yes | Yes | ||
| Max. cut rate | 65 m²/hr (700 sq. ft/hr) | 75 m²/hr (800 sq. ft/hr) | 75 m²/hr (800 sq. ft/hr) | ||
| Vacuum port | Yes | Yes | Yes | ||
| Depth Control System | No | No | Yes | ||
| Product link | LEARN MORE | LEARN MORE | LEARN MORE | ||
GrindLazer
High Production Series
Typical applications: High production removal jobs including levelling, inlay and all surface coatings
High Production Series |
|||||
 |
 |
 |
 |
 |
 |

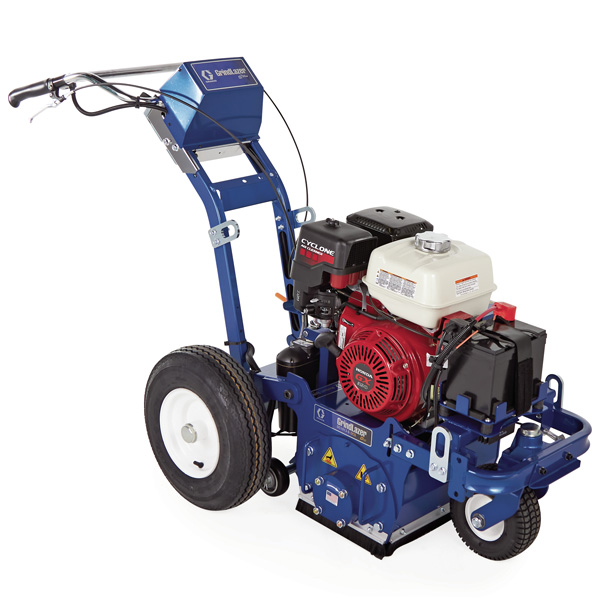

| HIGH PRODUCTION | DC89 G | DC1013 G | DC1013 G DCS | DC1021 G | DC1021 G DCS |
| Part number | 25M992 | 25M993 | 25N658 | 25M994 | 25N659 |
| Cutter type | Drum | Drum | Drum | Drum, reverse cut | Drum, reverse cut |
| Max. working width | 20 cm (8 in) | 25 cm (10 in) | 25 cm (10 in) | 25 cm (10 in) | 25 cm (10 in) |
| Drum diameter | 17.5 cm (7 in) | 17.5 cm (7 in) | 17.5 cm (7 in) | 17.5 cm (7 in) | 17.5 cm (7 in) |
| Engine/Motor - cm3 (HP) | Honda 270 (9 HP) | Honda 390 (13 HP) | Honda 390 (13 HP) | Vanguard 630 (21 HP) | Vanguard 630 (21 HP) |
| Engine start | ProStart | ProStart | Electric Start | Electric Start | Electric Start |
| Air Filter | Cyclone | Cyclone | Cyclone | Donaldson Heavy-Duty | Donaldson Heavy-Duty |
| Tach/hour meter | Yes | Yes | Yes | Yes | Yes |
| Max. cut rate | 55 m²/hr (600 sq. ft/hr) | 75 m²/hr (800 sq. ft/hr) | 75 m²/hr (800 sq. ft/hr) | N/A | N/A |
| LineDriver Compatible | Optional | Optional | Optional | Required | Required |
| Max. cut rate w/ LineDriver | 120 m²/hr (1300 sq. ft/hr) | 160 m²/hr (1700 sq. ft/hr) | 160 m²/hr (1700 sq. ft/hr) | 195 m²/hr (2100 sq. ft/hr) | 195 m²/hr (2100 sq. ft/hr) |
| Vacuum port | Yes | Yes | Yes | Yes | Yes |
| Depth Control System | No | No | Yes | No | Yes |
| Product link | LEARN MORE | LEARN MORE | LEARN MORE | LEARN MORE | LEARN MORE |
High Production Series |
|||||
|
 |
 |
 |
||
| HP RC820 H | HP RC1640 H | HP RC1625 G | |||
| Part number | 25P471 | 25P472 | 25P473 | ||
| Cutter type | Rotary | Rotary | Rotary | ||
| Max. working width | 20 cm (8 in) | 40 cm (16 in) | 40 cm (16 in) | ||
| Tach/hour meter | Yes | Yes | Yes | ||
| Engine/Motor - cm3 (HP) | Low-Flow Hydraulic (20) | Low-Flow Hydraulic (40) | Kohler (25) | ||
| Engine start | NA | NA | Electric Start | ||
| Air Filter | NA | NA | Standard | ||
| Bob-Tach® Skid Loader connection | Yes | Yes | Yes | ||
| Max. cut rate | 95 m²/hr (1000 sq. ft/hr) | 220 m²/hr (2400 sq. ft/hr) | 220 m²/hr (2400 sq. ft/hr) | ||
| Vacuum port | Yes | Yes | Yes | ||
| Product link | LEARN MORE | LEARN MORE | LEARN MORE | ||
Quikcut PCD: Diamond cutters
Graco’s QuikCut PCD Diamond Cutters are revolutionising surface preparation and coating removal applications by using self-sharpening polycrystalline diamond technology to gently shave the surface.
Faster removal
- Efficient cutter layout accelerates removal rates without compromising cut quality
- Cuts up to 2 times faster than competitive PCD drums
- Cuts 4 times faster than traditional diamond blades.
Lower replacement costs
- Patent-pending design lets you replace indiviual cutters, saving you time and money.
Superior profile consistency
- Engineered to deliver a consistent profile across the cut path
- Ideal for a full range of applications, including indoor flooring.
Next-level durability
- Highly densified PCD material is optimised for greater durability in high-impact applications
- Lasts >30 times longer than traditional carbide cutters
- Self-sharpening cutting edge maintains profile for the life of the cutter.
QuikCut PCD Profiles
QuikCut PCD cutters are available in three different styles to create your desired profile.

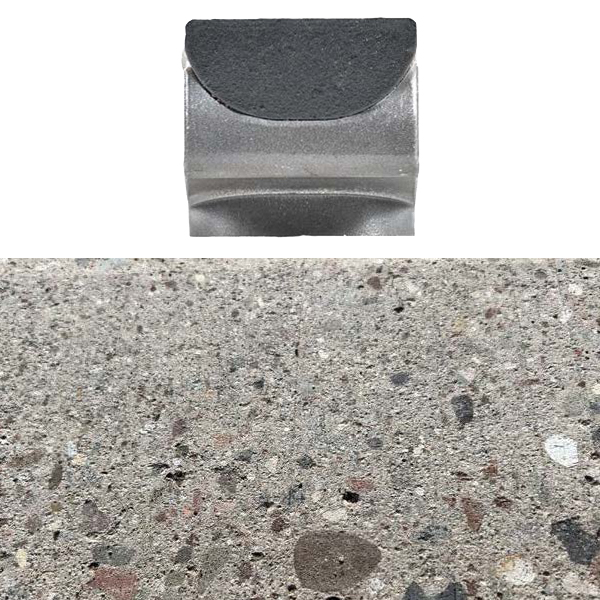

QuikCut PCD - Flat
Creates flat profile that’s ideal for traffic paint and thin coatings

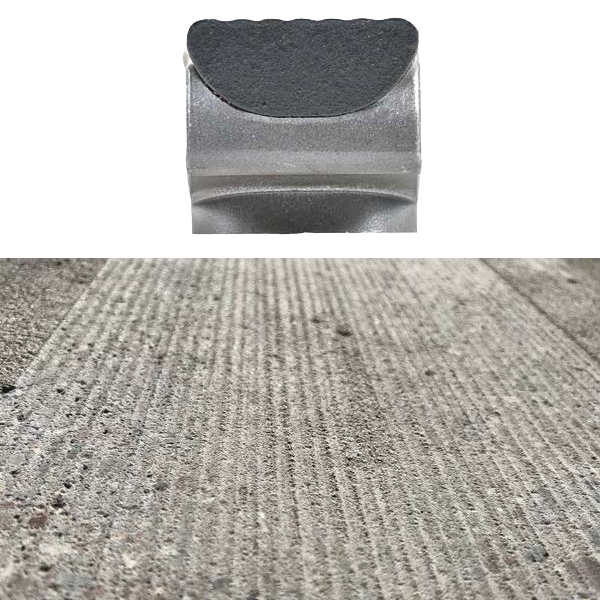

QuikCut PCD - Fine
Creates light profile that provides increased adhesion for durable traffic markings and floor coatings

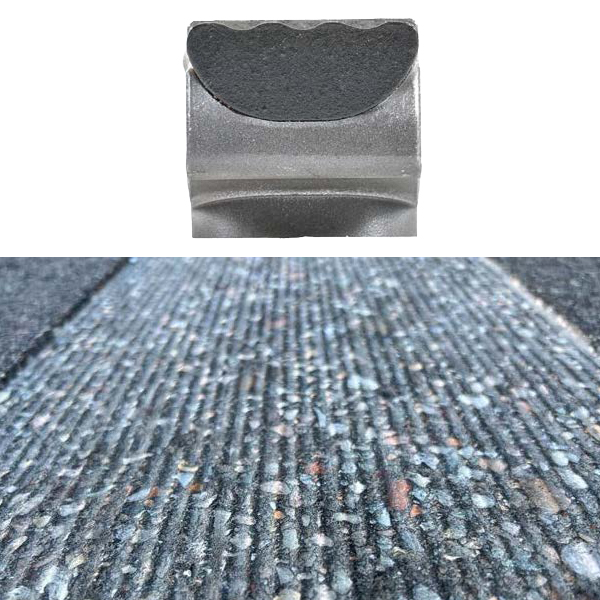

QuikCut PCD - Coarse
Creates coarse profile that’s ideal for thick coatings and aggressive removal
