SaniSpray HP
Graco SaniSpray disinfectant sprayers use the power of airless spraying to deliver the maximum productivity and efficiency disinfecting surfaces. This complete line of custom-built sprayers is specifically designed to handle the unique demands of disinfecting jobs.
Disinfect while on the go
When sanitising onboard of your vessel or cruise liner, you want to have the right equipment to do the job. Otherwise, surfaces might not be efficiently disinfected or the equipment might be even unsafe to use. The complete line of SaniSpray HP sprayers is built to deliver the highest level of productivity on every job. Each unit comes with everything you need to start disinfecting immediately. Whether you need to treat a small spot or an entire deck, there is a SaniSpray HP model with the performance you need to take on the task.
disinfect any surface safely, fast and thoroughly
Complete every job faster
Achieve higher flow rates and better atomisation of disinfectant chemicals. Deliver consistent atomisation and coverage within a sheet of spray to disinfect and sanitise efficiently.
Built for every application
With variable pressure settings, multiple spray tip options and a wide range of accessories to meet different job requirements, Graco SaniSpray HP sprayers are designed and built to handle any disinfectant
Limited Health Risks
Compatible with a wide variety of Approved alcohol-based and water-based active ingredients for use against SARS-CoV-2, the novel coronavirus that causes COVID-19.
Graco's SaniSpray HP products have been designed to deliver consistent coverage, without heavy drips and runs, so that you can achieve specified disinfectant dwell times. Only Graco’s SaniSpray HP sprayers are designed and built specifically to be compatible with sanitizing and disinfecting chemicals while applying them with maximum efficiency.

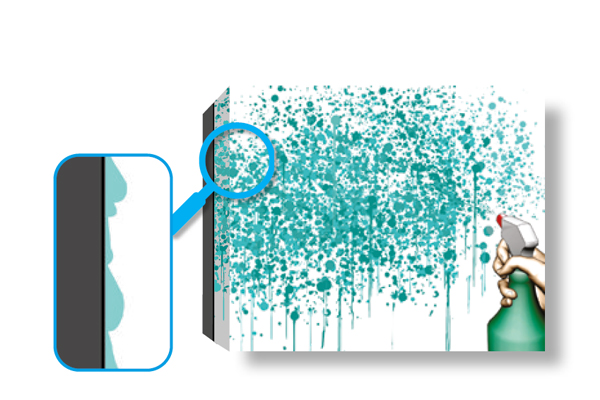

The old way
Inconsistent coverage with drips and runs

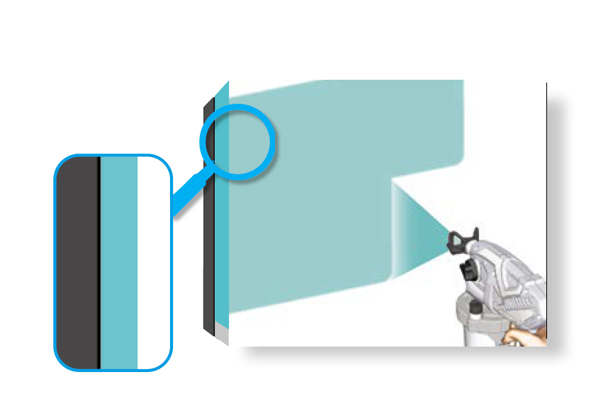

THE SANISPRAY HP WAY
Consistent coverage from edge to edge
Technical details
| IMPA REFERENCE | ||||
| GRACO PART NUMBER | 25R943 (230V CEE) 25R949 (230V UK) |
25R945 (230V CEE) 25R950 (230V UK) |
25R946 (230V CEE) 25R948 (230V IT/DK/CH/UK) |
25R947 (230V CEE) 25R951 (110V UK) |
| Graco Model | SaniSpray HP 20* Corded Handheld Sprayer |
SaniSpray HP 20 Cordless Handheld Sprayer |
SaniSpray HP 65 Portable Hopper Sprayer |
SaniSpray HP 130 2-Gun Cart Sprayer |
| Max. Flow Rate | 0.6 lpm (0.16 gpm) | 0.6 lpm (0.16 gpm) | 1.9 lpm (0.5 gpm) | 3.8 lpm (1 gpm) Ability to use 2 guns simultaneously |
| Max. Tip Size | .019” | .019” | .023” | .031” |
| Pressure | Adjustable 69 bar (6.9 MPa, 0-1000 psi) | |||
| Particle** Micron Size | Adjustable Particle - Micron Size - Fine Mist to Coarse Spray | |||
| Capacity | Fill & Spray 1.25 litres (0.33 gal) |
Fill & Spray 1.25 litres (0.33 gal) |
Pour & Go 5.7 litres (1.5 gal) |
High Production Use Any Container |
| Power Sources | 230V CEE Corded 230V UK Corded |
DEWALT 18V Cordless Lithium Ion Batteries |
230V CEE Corded 230V IT,DK, CH, UK Corded |
230V CEE Corded 110V UK Corded |
| Includes | • 313 Fine Spray Tip • 515 & 619 Coarse Spray Tip • 40 cm (15.7 in) Spray Extension • 5 FlexLiner Bags • Storage Plug • Storage Bag |
• 313 Fine Spray Tip • 515 & 619 Coarse Spray Tip • 40 cm (15.7 in) Spray Extension • 2 DEWALT®*** 18V Max 2.0 ah Lithium-Ion Batteries • Charger • 5 FlexLiner Bags • Storage Plug • Storage Bag |
• SaniSpray HP Gun • ¼" x 15m (50ft) BlueMax II Hose • 1/8" x (4.5 ft) BlueMax Whip Hose • 515 Fine Spray Tip • 617 & 619 Medium & Coarse High Production Spray Tips • 40 cm (15.7 in) Spray Extension |
• (2) SaniSpray HP Guns • (2) ¼" x15m (50 ft) BlueMax II Hose • (2) 1/8" x (4.5 ft) BlueMax Whip Hose • (2) 617 Fine Spray Tips • (2) 617 & (2) 619 Medium & Coarse High Production Spray Tips • (2) 40 cm (15.7 in) Spray Extension |
| Modular Repair | Yes | Yes | Yes | Yes |
* SaniSpray HP 20 Corded Handheld Sprayer cannot spray alcohol based (flammable) products.
** Particle size will vary based on tip size, pressure and disinfectant product. Average particle size measured when spraying water ranges from 30 to 110 microns
*** DEWALT ® and the DEWALT Logo are trademarks of DEWALT Industrial Tool Co. and are used under licence.
Marine Catalogue
Graco’s work solution for the maritime industry
…now in an easy-to-use catalogue. The catalogue is an overview of Graco’s most commonly onboard used marine solutions, subdivided into the main onboard tasks. In a blink of an eye, you can find the product you are looking for. It is a valuable tool that you can rely on to easily and fast order your onboard maritime equipment.
