Pro Xp 60
Pro Xp60 WB Air Spray Manual Electrostatic Gun, 60 kV, 1.5 mm (0.055 in) nozzle, smart display, for waterborne coatings
Part Number: L60M18

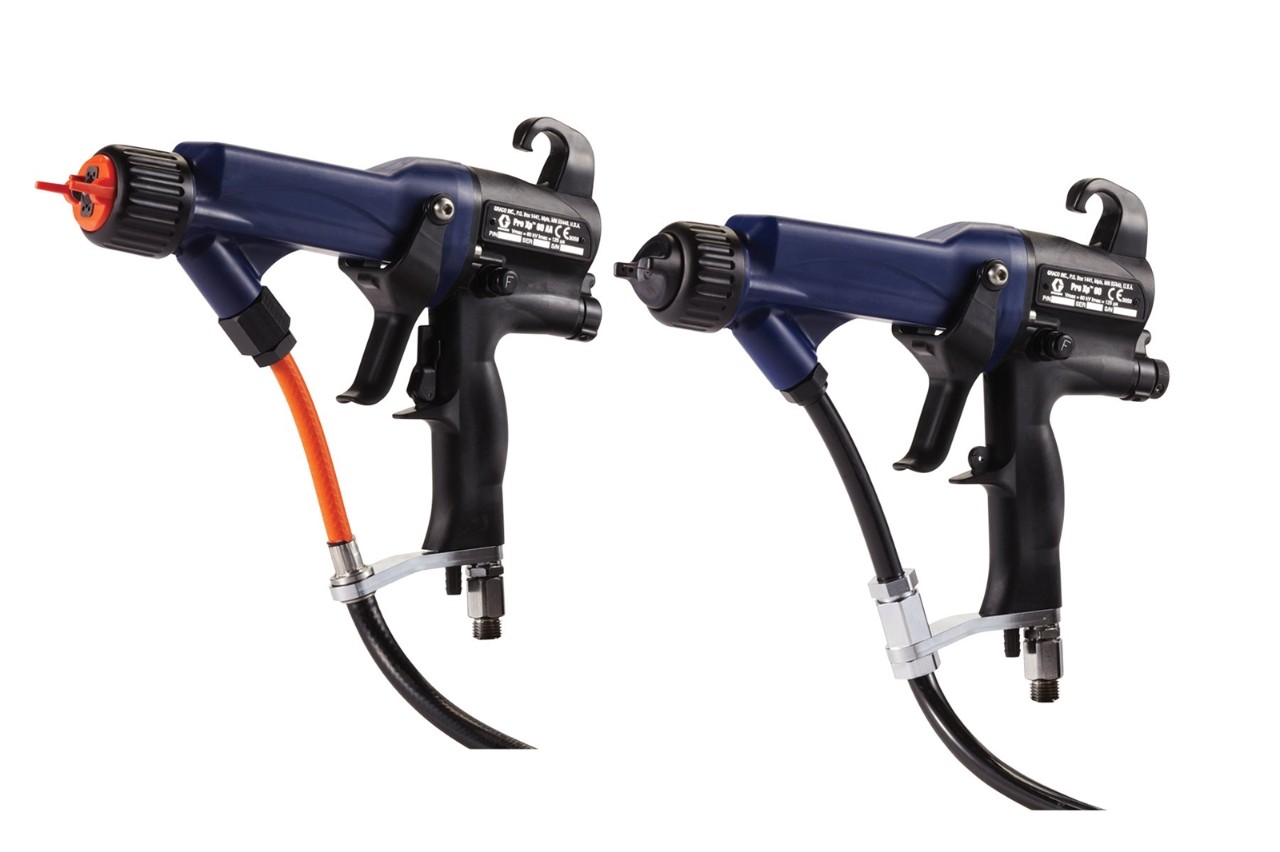

Image is for illustrative purposes only.
Pro Xp 60
Pro Xp60 WB Air Spray Manual Electrostatic Gun, 60 kV, 1.5 mm (0.055 in) nozzle, smart display, for waterborne coatings
Part Number: L60M18
Superior quality air spray consistently achieves high quality, Class A or decorative finishes with waterborne materials.
Features
Product Brochure
Superior quality air spray consistently achieves high quality, Class A or decorative finishes with waterborne materials.
For spraying conductive, waterborne fluids with an isolation system
- Available in 60 kV, it's the smallest profile gun with an internal power supply on the market.
- Painters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight applicator.
- Smart controls help you analyse performance, adapt voltage needs and make troubleshooting easier.
- Made in the USA
- Every gun is tested and delivered with a certificate indicating that the spray pattern, mechanical performance and electrical performance meets Graco's requirements.
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Waterborne |
| Applicator Type | Manual |
| Coating Type | Waterborne |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Waterborne, Urethanes |
| Display Type | Smart |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (lb) | 1.48 |
| Gun Weight (oz) | 23.63 |
| Includes | Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Pro Xp |
| Nozzle Size (in) | 0.055 |
| Overall Length (in) | 9.5 |
| Series | 60 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 60 |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Waterborne |
| Applicator Type | Manual |
| Coating Type | Waterborne |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Waterborne, Urethanes |
| Display Type | Smart |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (g) | 670 |
| Gun Weight (kg) | 0.67 |
| Gun Weight (oz) | 23.63 |
| Includes | Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (bar) | 7.0 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (kg/cm²) | 7.14 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 48 |
| Maximum Paint Resistivity (megohm/cm) | 1 |
| Minimum Paint Resistivity (megohm/cm) | 0 |
| Model | Pro Xp |
| Nozzle Size (cm) | 0.15 |
| Nozzle Size (mm) | 1.5 |
| Overall Length (cm) | 24.13 |
| Overall Length (mm) | 241.3 |
| Series | 60 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 60 |
Product Manuals
