SaniForce 515 FG
Saniforce 515 AOD Pump w/DIN DN 25 Connection, Polypropylene Centre Section, S/S Seats, O-Rings, Balls & Diaphragms
Part Number: FD6111
SaniForce 515 FG
Saniforce 515 AOD Pump w/DIN DN 25 Connection, Polypropylene Centre Section, S/S Seats, O-Rings, Balls & Diaphragms
Part Number: FD6111

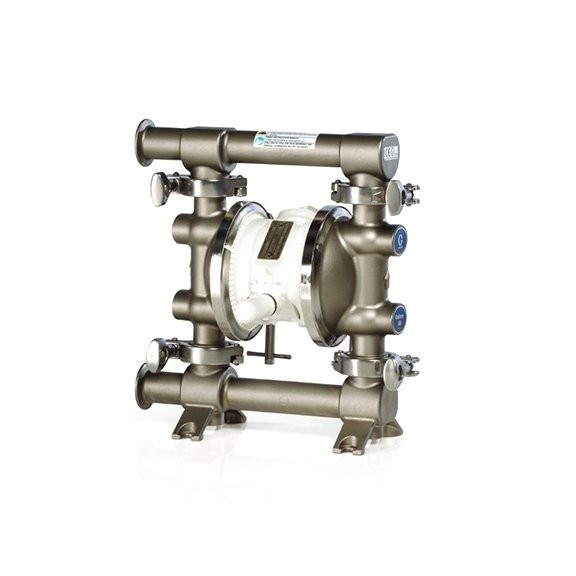

Graco's SaniForce 515 air-operated double diaphragm sanitary pump provides a solution to customers needing a pump with lower flow rates, a quick knock-down design for easy cleaning and a low cost of ownership – ideal for the food processing and personal care markets. Popular applications include tra...
More InfoFeatures
Product Brochure
Graco's SaniForce 515 air-operated double diaphragm sanitary pump provides a solution to customers needing a pump with lower flow rates, a quick knock-down design for easy cleaning and a low cost of ownership – ideal for the food processing and personal care markets. Popular applications include transferring flavourings, purees, sauces and other low to medium viscosity materials.
1/2 inch air-operated double diaphragm sanitary pump with flow rates up to 56.7 lpm (15 gpm) - ideal for food-related applications
SaniForce 515 Double Diaphragm Pump
- 25.4 mm (1 in.) Tri-clamp connection
- All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
- Fluid pressure to 7 bar, 0.7 MPa (100 psi)
- Flow rates of 56.7 lpm (15 gpm)
- Applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 10,000 cps
- Suitable to pump products like: flavourings, purees, sauces and other low to medium viscosity materials
SaniForce 515 Drum Siphon Kit
- Great for quickly unloading 208 litre (55 gallon) drums of low to medium viscosity materials
The SaniForce 515 Drum Kit (Graco part # 262828) comes standard with:
- 316 SST drum length suction tube
- 316 SST mounting bracket
- 316 SST bung adapter
- 316 SST tri-clamp clamps (2)
- FDA-compliant gaskets
PTFE/EPDM Overmoulded Diaphragms
- Overmoulded diaphragm plate with PTFE on the fluid side and EPDM on the air side on Graco's PTFE/EPDM diaphragms so there's no place to harbour bacteria
- Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
- Longer diaphragm life in abrasive applications that still require PTFE
- Available on the SaniForce 515, 1040, 1590, 2150 and SaniForce HS 1590 and 3150
Specifications & Documents
Technical Specifications
Convert to Imperial| 1.27 | |
| 515FG-PP01AS14SSPTPTPT21 | |
| Air Exhaust Port Size (in) | 3/8 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Ball Material | PTFE |
| Centre Section Material | Polypropylene |
| Compatible Material | Edible Oil, Food and Personal Care |
| Compressor required | Yes |
| Connection Type | DIN |
| Diaphragm Material | PTFE/Santoprene 2-piece |
| Fluid Section Material | 316 Stainless Steel |
| Fluid passage size (in) | 1/2 |
| Fluid passage size (mm) | 12.7 |
| For Use With | Food and Personal Care |
| Hazardous location approved | ATEX, IECEx |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Material certification | EN 1024:2004 type 2.1 (standard) |
| Maximum Air Consumption (SCFM) | 28 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 182 |
| Maximum Flow Rate (GPM) | 16 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.093 |
| Maximum fluid operating temperature (°C) | 104 |
| Maximum fluid operating temperature (°F) | 220 |
| Minimum fluid operating temperature (°C) | -40 |
| Minimum fluid operating temperature (°F) | -40 |
| Model | SaniForce |
| Overall Height (in) | 12.7 |
| Power Source | Pneumatic |
| Pump Ratio | 1:1 |
| Pump Type | FDA grade |
| Seat Material | 316 Stainless Steel |
| Series | 515 FG |
| Standards Met | FDA compliant materials, EC 1935/2004 |
| Surface finish: | 125 Ra |
| Type | Pneumatic diaphragm pump selector |
| Weight (lb) | 23 |
| 1.27 | |
| 515FG-PP01AS14SSPTPTPT21 | |
| Air Exhaust Port Size (in) | 3/8 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Ball Material | PTFE |
| Centre Section Material | Polypropylene |
| Compatible Material | Edible Oil, Food and Personal Care |
| Compressor required | Yes |
| Connection Type | DIN |
| Diaphragm Material | PTFE/Santoprene 2-piece |
| Fluid Section Material | 316 Stainless Steel |
| Fluid passage size (in) | 1/2 |
| Fluid passage size (mm) | 12.7 |
| For Use With | Food and Personal Care |
| Hazardous location approved | ATEX, IECEx |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Material certification | EN 1024:2004 type 2.1 (standard) |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (bar) | 6.9 |
| Maximum Air Pressure (kPa) | 690 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 182 |
| Maximum Flow Rate (L/min) | 61 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (cm) | 0.24 |
| Maximum Solid Size (mm) | 2.4 |
| Maximum fluid operating temperature (°C) | 104 |
| Maximum fluid operating temperature (°F) | 220 |
| Minimum fluid operating temperature (°C) | -40 |
| Minimum fluid operating temperature (°F) | -40 |
| Model | SaniForce |
| Power Source | Pneumatic |
| Pump Ratio | 1:1 |
| Pump Type | FDA grade |
| Seat Material | 316 Stainless Steel |
| Series | 515 FG |
| Standards Met | FDA compliant materials, EC 1935/2004 |
| Surface finish: | 125 Ra |
| Type | Pneumatic diaphragm pump selector |
