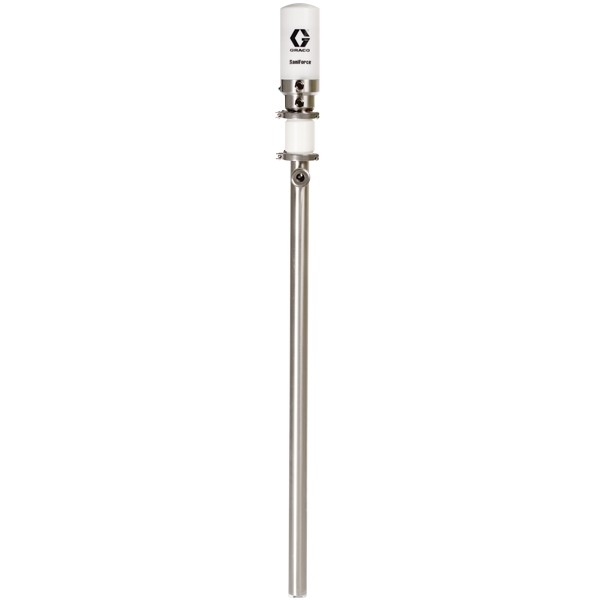

2:1 Ratio SaniForce Long Double Ball Piston Pump with PTFE & FKM Packings
Part Number: 24N344
SaniForce
2:1 Ratio SaniForce Long Double Ball Piston Pump with PTFE & FKM Packings
Part Number: 24N344
Easily transfer low to medium viscosity food and personal care materials up to 50,000 cps out of drums and totes. Graco's SaniForce 2:1 piston pump utilises proven Graco air motor technology and smart sanitary design. The pump is extremely portable, weighing between 10.8 kg (24 lb) for the standard ...
More InfoFeatures
Easily transfer low to medium viscosity food and personal care materials up to 50,000 cps out of drums and totes. Graco's SaniForce 2:1 piston pump utilises proven Graco air motor technology and smart sanitary design. The pump is extremely portable, weighing between 10.8 kg (24 lb) for the standard drum length and 11.7 kg (26 lb) for the long length. Plus, it fits through a standard bung hole.
Quick Knockdown Sanitary Piston Pump for Food and Personal Care Applications
SaniForce 2:1 Sanitary Piston Pump:
- Flow rates range from 5.7 lpm (1.5 gpm) at 60 cpm, up to 9.5 lpm (2.5 gpm) at 100 cpm
- Quick disconnect clamps for easy disassembly
- Fluid transfer and supply of materials up to 50,000 cps
- Suitable to pump products such as: fruit juice concentrates, cream fillings, ice cream variegates, and cosmetics
SaniForce 2:1 Air Motor:
- Removable, wash down safe, FDA-compliant shroud lets you easily access the air valve
- Simple knuckle joint design for easy removal of air motor from lower
Easy Mounting:
- SaniForce 2:1 pump fits through standard bung hole
- FDA-compliant bung adapter accessory available for easy mounting
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 3/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Compatible Material | Food, Personal Care |
| Fluid Outlet Size (in) | 1 |
| For Use With | Food, Personal Care, & Pharmaceutical |
| Material | Stainless Steel |
| Maximum Air Consumption (SCFM) | 6 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPM) | 2.5 |
| Maximum Intermittent Cycle Rate (CPM) | 60 |
| Maximum Working Pressure (MPa) | 1.7 |
| Maximum Working Pressure (psi) | 250 |
| Model | SaniForce |
| Portable | Non-Portable |
| Pump Ratio | 2:1 |
| Seal Material | PTFE, Nitrile |
| Standards Met | FDA compliant materials, CE |
| Type | Pneumatic piston pump |
| Wetted Material | Stainless Steel, Acetal, PTFE, FKM, UHMWPE |
| Air Inlet Size (in) | 3/8 |
| Air Inlet Size (mm) | 9.525 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Compatible Material | Food, Personal Care |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Size (mm) | 25.4 |
| For Use With | Food, Personal Care, & Pharmaceutical |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (L/min) | 9.46 |
| Maximum Intermittent Cycle Rate (CPM) | 60 |
| Maximum Working Pressure (MPa) | 1.7 |
| Maximum Working Pressure (bar) | 17 |
| Maximum Working Pressure (kPa) | 1700 |
| Maximum Working Pressure (psi) | 250 |
| Model | SaniForce |
| Portable | Non-Portable |
| Pump Ratio | 2:1 |
| Seal Material | PTFE, Nitrile |
| Standards Met | FDA compliant materials, CE |
| Type | Pneumatic piston pump |
| Wetted Material | Stainless Steel, Acetal, PTFE, FKM, UHMWPE |
