Ultra-Lite 6000

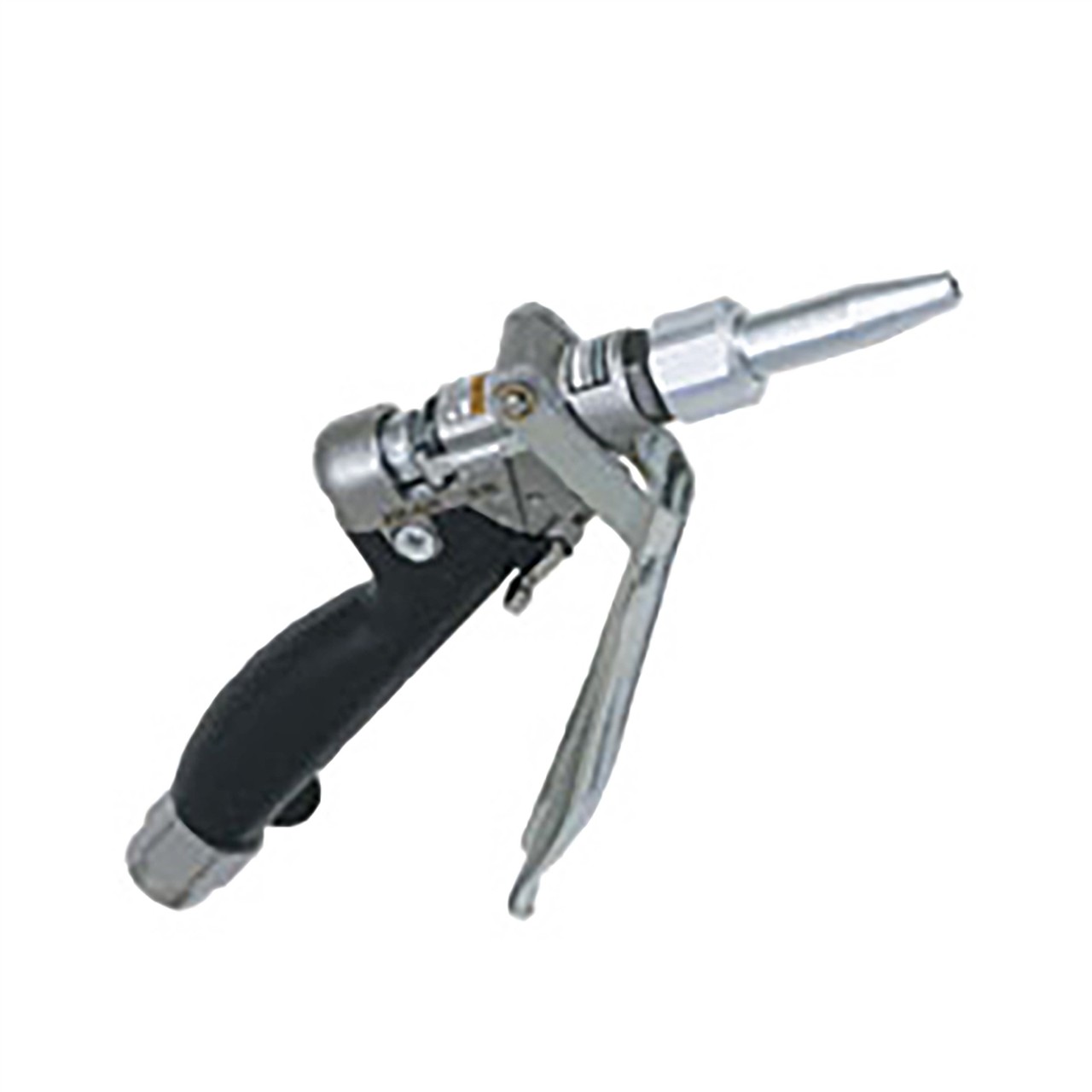

Ultra-Lite 6000 Flow Gun with Tapered Valve Needle
Part Number: 243775
Ultra-Lite 6000
Ultra-Lite 6000 Flow Gun with Tapered Valve Needle
Part Number: 243775
The operator-friendly Ultra-Lite 6000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.
Features
Product Brochure
(English Only)
The operator-friendly Ultra-Lite 6000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.
For precise control of low-to-medium viscosity materials
- Operating pressures to 414 bar; 41.4 MPa (6000 psi).
- 150° head/handle angle is more comfortable for operator
- Changeable tips for a variety of dispensing needs
- Lightweight with convenient trigger pull
- Compatible with a variety of nozzles (1/4 in. NPT (F) with nut for metal flanged nozzle). Order nozzle separately.
(English Only)
Specifications & Documents
Technical Specifications
Convert to Imperial| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation |
|---|---|
| Connection Type | Threaded, Flange |
| Gun Activation | Manual |
| Maximum Working Pressure (MPa) | 41.5 |
| Maximum Working Pressure (psi) | 6000 |
| Model | Ultra-Lite |
| Nozzle Size (in) | 0.2 |
| Number of Outputs | 1 |
| Series | 6000 |
| Type | Dispense Gun |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation |
| Connection Type | Threaded, Flange |
| Gun Activation | Manual |
| Maximum Working Pressure (MPa) | 41.5 |
| Maximum Working Pressure (bar) | 415 |
| Maximum Working Pressure (kPa) | 41500 |
| Maximum Working Pressure (kg/cm²) | 422 |
| Maximum Working Pressure (psi) | 6000 |
| Model | Ultra-Lite |
| Nozzle Size (cm) | 0.508 |
| Nozzle Size (mm) | 5.08 |
| Number of Outputs | 1 |
| Series | 6000 |
| Type | Dispense Gun |
