Corrosion Resistant High Pressure Fluid Regulator, 35-207 bar (500-3000 psi) Range, 3.7 L/min (1.0 GPM), SST, Spring, 3/8(f) x 3/8(f), 1/4(f) Port, w/ gauge
Part Number: 238890

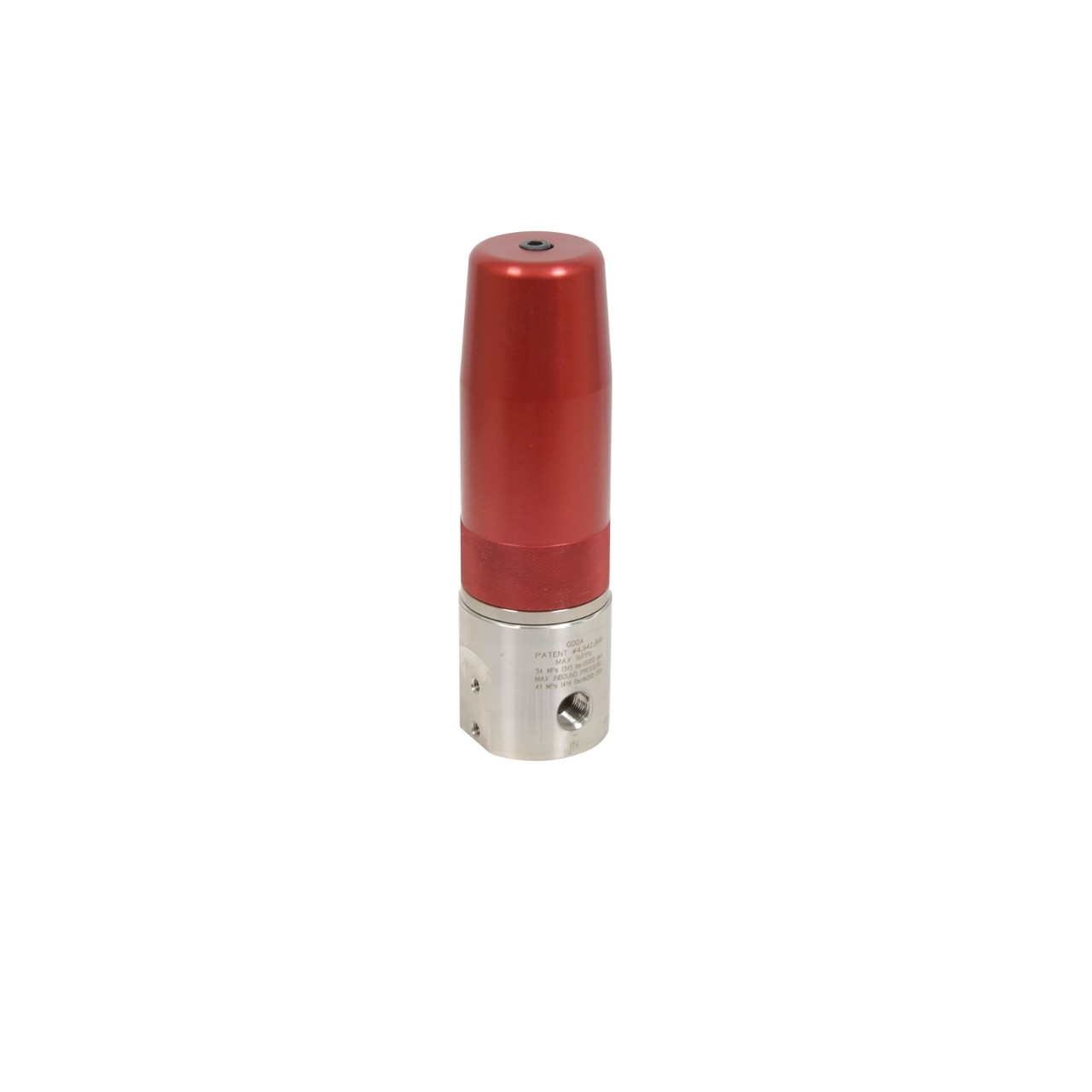

![product image](/content/dam/pim/graco/ipd/liquid%20finishing/GracoFluidRegulator_238889-238892.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
Image is for illustrative purposes only.
Corrosion Resistant High Pressure Fluid Regulator, 35-207 bar (500-3000 psi) Range, 3.7 L/min (1.0 GPM), SST, Spring, 3/8(f) x 3/8(f), 1/4(f) Port, w/ gauge
Part Number: 238890
Features
Product Brochure- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Tungsten and carbide materials ensure low wear and long life
- Valve cartridge for quick cleaning and replacement – reduce downtime
- Glycerin-filled gauge for accurate pressure reading
Specifications & Documents
Technical Specifications
Convert to ImperialActuation Type | Spring |
---|---|
Gauge Port Size (in) | 1/4 |
Gauge Port Type | NPT |
Includes | Gauge |
Inlet Size (in) | 3/8 |
Inlet Thread Type | NPT |
Maximum Flow Rate (GPM) | 1 |
Maximum Regulated Pressure (MPa) | 21 |
Maximum Regulated Pressure (psi) | 3000 |
Maximum Viscosity (cP) | 15000 |
Maximum Working Pressure (MPa) | 41 |
Maximum Working Pressure (psi) | 6000 |
Minimum Regulated Pressure (MPa) | 3.4 |
Minimum Regulated Pressure (psi) | 500 |
Outlet Size (in) | 3/8 |
Type | Fluid Regulator |
Wetted Material | Stainless Steel |
Actuation Type | Spring |
Gauge Port Size (cm) | 0.635 |
Gauge Port Size (in) | 1/4 |
Gauge Port Size (mm) | 6.35 |
Gauge Port Type | NPT |
Includes | Gauge |
Inlet Size (cm) | 0.9525 |
Inlet Size (in) | 3/8 |
Inlet Size (mm) | 9.525 |
Inlet Thread Type | NPT |
Maximum Flow Rate (L/min) | 3.8 |
Maximum Regulated Pressure (MPa) | 21 |
Maximum Regulated Pressure (bar) | 207 |
Maximum Regulated Pressure (kPa) | 20700 |
Maximum Regulated Pressure (psi) | 3000 |
Maximum Viscosity (cP) | 15000 |
Maximum Working Pressure (MPa) | 41 |
Maximum Working Pressure (bar) | 414 |
Maximum Working Pressure (kPa) | 41400 |
Maximum Working Pressure (psi) | 6000 |
Minimum Regulated Pressure (MPa) | 3.4 |
Minimum Regulated Pressure (bar) | 34 |
Minimum Regulated Pressure (kPa) | 3400 |
Minimum Regulated Pressure (psi) | 500 |
Outlet Size (cm) | 0.9525 |
Outlet Size (in) | 3/8 |
Outlet Size (mm) | 9.525 |
Type | Fluid Regulator |
Wetted Material | Stainless Steel |
