Low Pressure Fluid Regulator, 18 Max bar (250 psi), 0,3-7 bar Range (5-100 psi), 11,3 L/min (3.0 GPM), SST, Spring Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port
Part Number: 214706

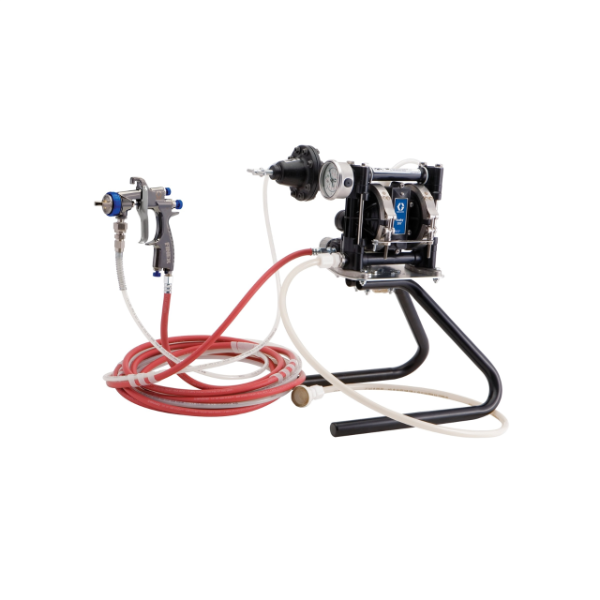

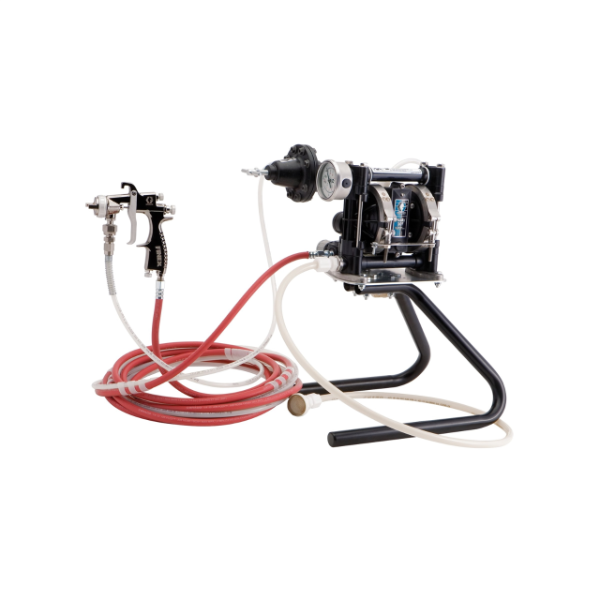

Image is for illustrative purposes only.
Low Pressure Fluid Regulator, 18 Max bar (250 psi), 0,3-7 bar Range (5-100 psi), 11,3 L/min (3.0 GPM), SST, Spring Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port
Part Number: 214706
Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves. Graco's fluid regulators are designed with wear-resistant materials for long life, even when using harsh
materials
Features
Product Brochure
Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves. Graco's fluid regulators are designed with wear-resistant materials for long life, even when using harsh
materials
For a balanced fluid system, pressure control is essential. Graco provides a wide selection of fluid pressure regulators and back pressure valves. Together, these controls keep your system running more efficiently by providing rugged, precise pressure regulation.
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Removable adjustment key eliminates operator interference
- Manual quick flush mode ensures easy cleaning without impacting production settings
- Tungsten and carbide materials ensure low wear and long life
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
Specifications & Documents
Technical Specifications
Convert to Imperial| Actuation Type | Spring |
|---|---|
| Gauge Port Size (in) | 1/4 |
| Gauge Port Thread Gender | Female |
| Gauge Port Type | NPT |
| Includes | Gauge |
| Inlet Size (in) | 3/8 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 3 |
| Maximum Regulated Pressure (MPa) | 0.7 |
| Maximum Regulated Pressure (psi) | 100 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (MPa) | 1.8 |
| Maximum Working Pressure (psi) | 250 |
| Minimum Regulated Pressure (MPa) | 0.034 |
| Minimum Regulated Pressure (psi) | 5 |
| Outlet Size (in) | 3/8 |
| Outlet Thread Gender | Female |
| Type | Fluid Regulator |
| Wetted Material | Stainless Steel |
| Actuation Type | Spring |
| Gauge Port Size (cm) | 0.635 |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Size (mm) | 6.35 |
| Gauge Port Thread Gender | Female |
| Gauge Port Type | NPT |
| Includes | Gauge |
| Inlet Size (cm) | 0.9525 |
| Inlet Size (in) | 3/8 |
| Inlet Size (mm) | 9.525 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (L/min) | 11.36 |
| Maximum Regulated Pressure (MPa) | 0.7 |
| Maximum Regulated Pressure (bar) | 7 |
| Maximum Regulated Pressure (kPa) | 700 |
| Maximum Regulated Pressure (psi) | 100 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (MPa) | 1.8 |
| Maximum Working Pressure (bar) | 18 |
| Maximum Working Pressure (kPa) | 1800 |
| Maximum Working Pressure (psi) | 250 |
| Minimum Regulated Pressure (MPa) | 0.034 |
| Minimum Regulated Pressure (bar) | 0.3 |
| Minimum Regulated Pressure (kPa) | 34 |
| Minimum Regulated Pressure (psi) | 5 |
| Outlet Size (cm) | 0.9525 |
| Outlet Size (in) | 3/8 |
| Outlet Size (mm) | 9.525 |
| Outlet Thread Gender | Female |
| Type | Fluid Regulator |
| Wetted Material | Stainless Steel |
