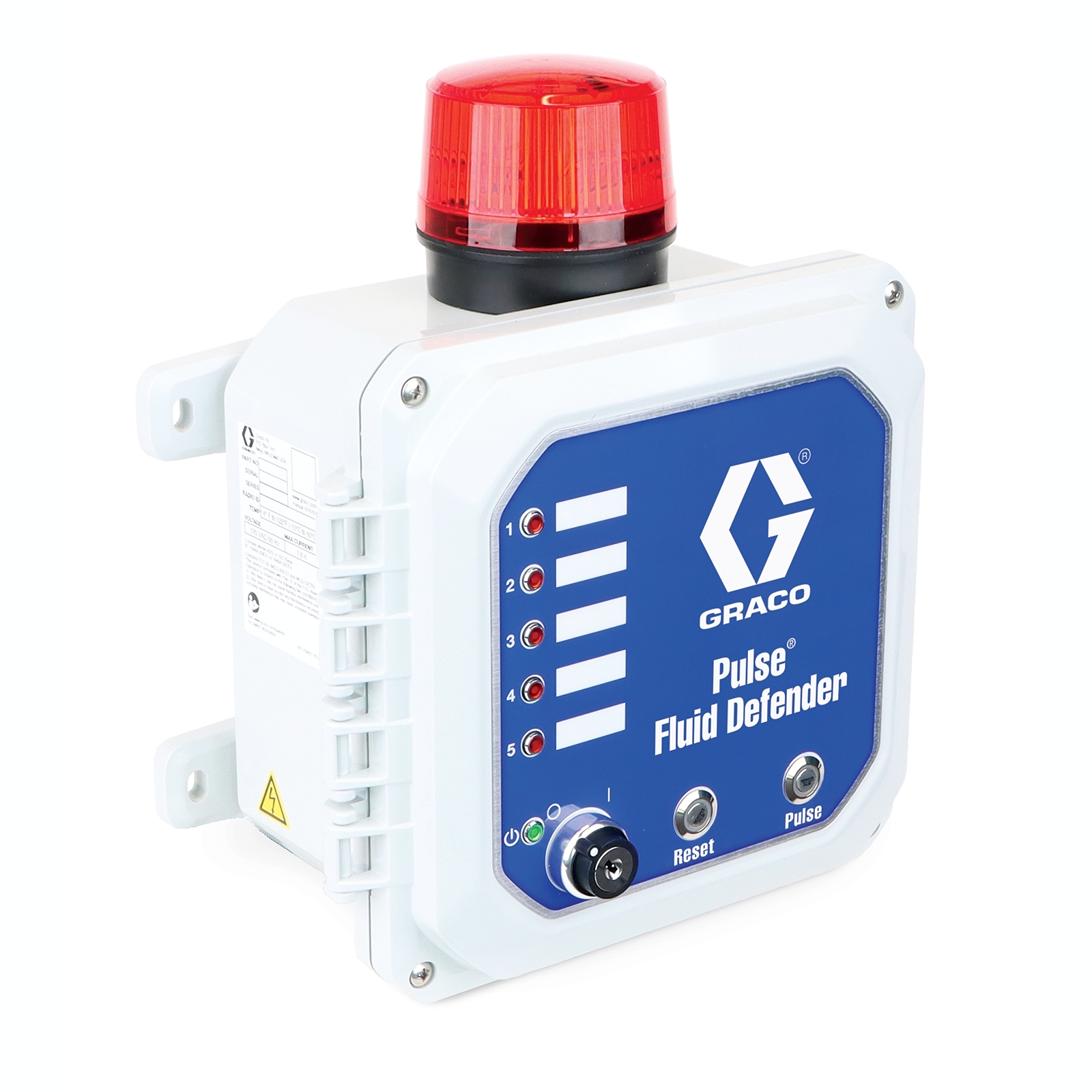

Graco® Pulse® Fluid Defender®
Part Number: 25V471
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Graco® Pulse® Fluid Defender®
Part Number: 25V471
Visibility and process streamlining is king. Paired with your Pulse Fluid Management system, the Pulse® Fluid Defender® tank monitoring system gives you get unprecedented insights, analysis and control of your bulk fluid tanks, helping you automate ordering and save time.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Visibility and process streamlining is king. Paired with your Pulse Fluid Management system, the Pulse® Fluid Defender® tank monitoring system gives you get unprecedented insights, analysis and control of your bulk fluid tanks, helping you automate ordering and save time.
- Uses include High level alarm and shut-off, remote fill alarm, low level shut off, low level alarm and remote fill shut off
- Reduce risk of fluid spills and EPA compliance issues
- Supports remote tank and remote fill locations

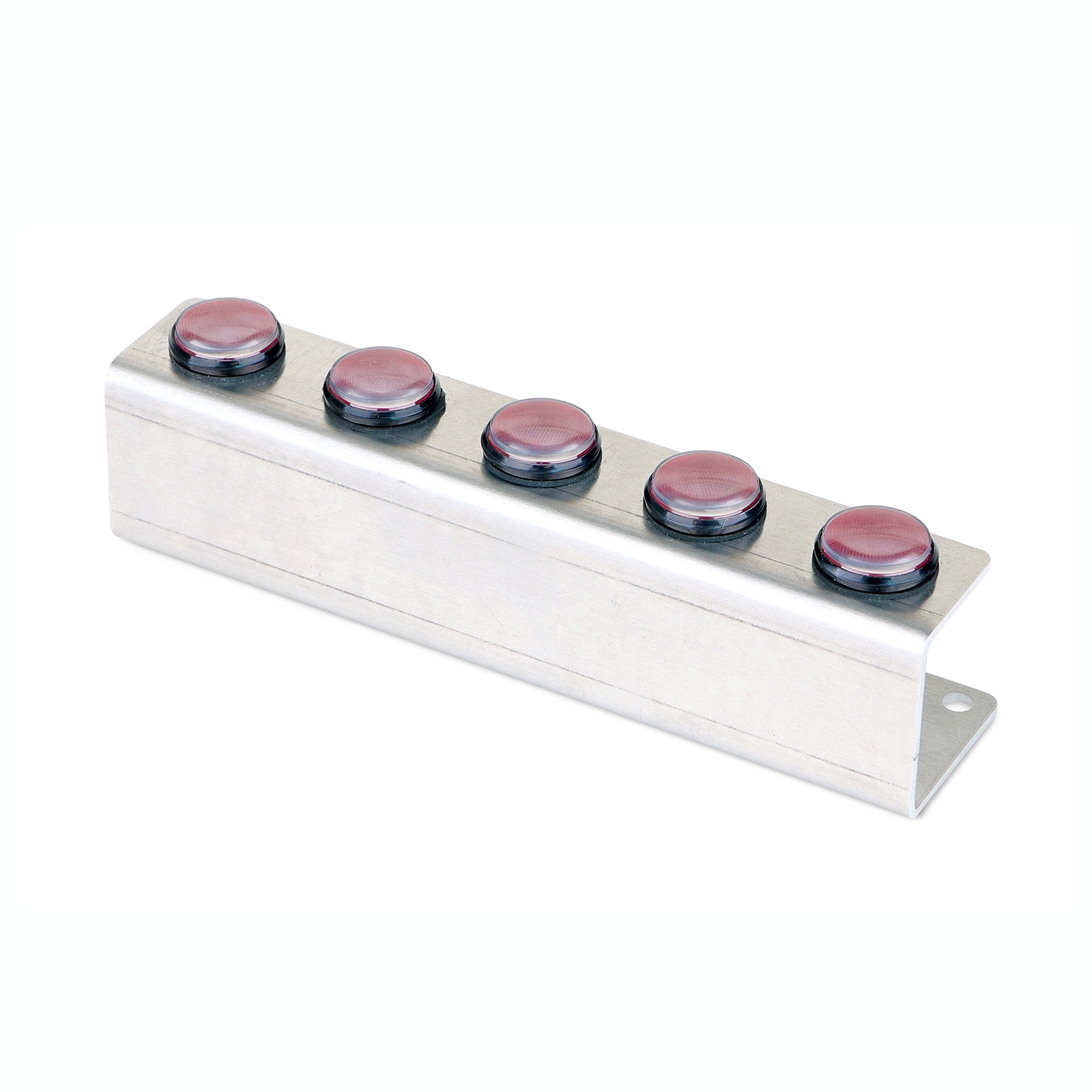

- Siren, beacon and remote light alarms
- Emailed alert notifications can notify oil jobber to schedule refill

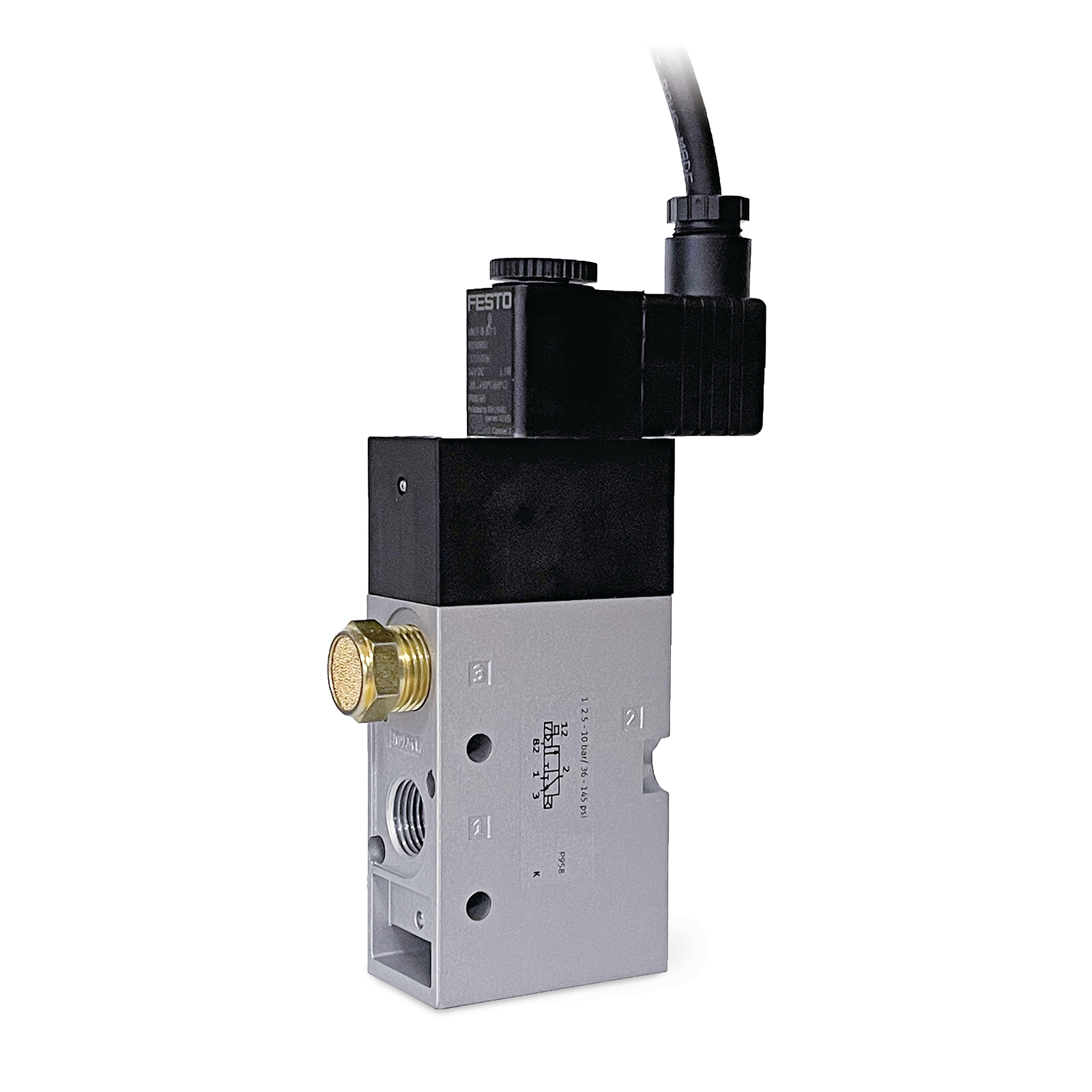

- Monitor up to 5 tanks and operate up to 5 air control solenoid valves
- Single power source for complete system simplifies installation
- IP65 compliant for indoor or outdoor installation
- Allows for up to 1000’ between monitor and tanks
- Safe to use with motor and waste oil, ATF, A-F, diesel and windshield wash fluid
Specifications & Documents
Technical Specifications
Convert to Metric| Approvals | NEMA Type 3R |
|---|---|
| For Use With | Fluid Defender |
| Maximum Operating Temperature (°F) | 122 |
| Maximum Storage Temperature (°F) | 185 |
| Minimum Storage Temperature (°F) | -40 |
| Overall Height (in) | 11.3 |
| Overall Width (in) | 10.3 |
| RF Communication (GHz) | 2400 - 2483.5 |
| Type | Fluid Control Box |
| Approvals | NEMA Type 3R |
| For Use With | Fluid Defender |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Storage Temperature (°C) | 85 |
| Minimum Storage Temperature (°C) | -40 |
| RF Communication (GHz) | 2400 - 2483.5 |
| Type | Fluid Control Box |
