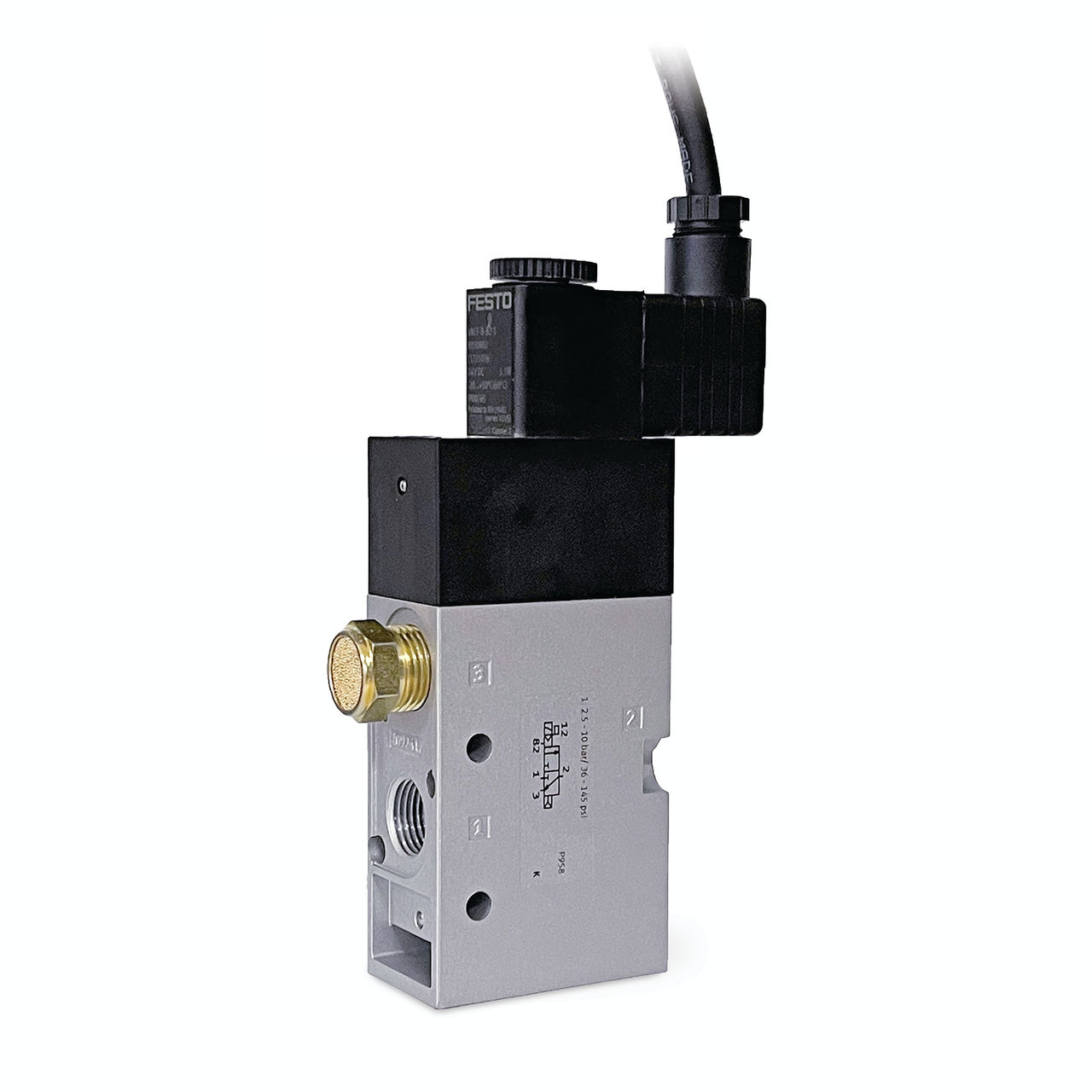

Air Control Solenoid Valve for Fluid Defender®
Part Number: 25V482
Image is for illustrative purposes only.
Air Control Solenoid Valve for Fluid Defender®
Part Number: 25V482
Regulate air powered equipment connected to the Fluid Defender and Pulse Fluid Defender to help prevent pump cavitation or tank overflow.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Regulate air powered equipment connected to the Fluid Defender and Pulse Fluid Defender to help prevent pump cavitation or tank overflow.
- Control air operated pumps and air actuated control valves
- Continuously powered during normal operation with the air control solenoid valve being open to provide air pressure to the controlled equipment
- When the Fluid Defender detects an alarm condition in the same channel as the air control solenoid valve, the solenoid is deactivated causing the connected equipment to deactivate
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 3/8 |
|---|---|
| Air Inlet Thread Type | NPT |
| For Use With | Fluid Defender |
| Maximum Air Flow Rate (CFM) | 93 |
| Maximum Operating Pressure (psi) | 145 |
| Maximum Operating Temperature (°F) | 122 |
| Maximum Storage Temperature (°F) | 185 |
| Minimum Operating Pressure (psi) | 36 |
| Minimum Operating Temperature (°F) | 14 |
| Type | Air Regulator |
| Air Inlet Size (in) | 3/8 |
| Air Inlet Thread Type | NPT |
| For Use With | Fluid Defender |
| Maximum Operating Pressure (psi) | 145 |
| Minimum Operating Pressure (psi) | 36 |
| Type | Air Regulator |
