Grease Jockey

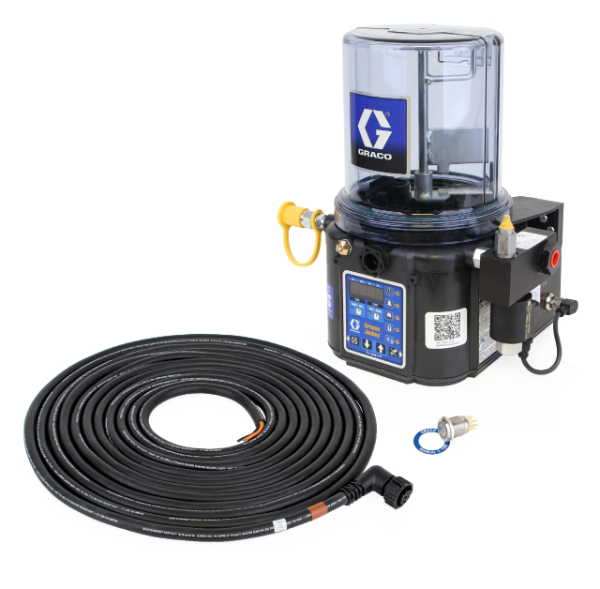

Electric Grease Jockey® Pump, 24V
Part Number: 25C991
Grease Jockey
Electric Grease Jockey® Pump, 24V
Part Number: 25C991
Lubrication is critical to your vehicle's peak performance. With Graco's Grease Jockey automatic lubrication system, vehicle maintenance gets a whole lot easier. Take the hassle out of manually lubricating your chassis and continuously lubricate it instead.
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertGrease Jockey Support
Sharpen your skills by utilizing the Grease Jockey Support Center — with tips and tricks around programming, operation and installation. Easily access manuals, guides and educational videos, all in one central location.
Features
Product Brochure
Lubrication is critical to your vehicle's peak performance. With Graco's Grease Jockey automatic lubrication system, vehicle maintenance gets a whole lot easier. Take the hassle out of manually lubricating your chassis and continuously lubricate it instead.
Benefits:
- Keeps your chassis operating, even in harsh on-road conditions
- Lubricant goes where it's supposed to, automatically, with little or no waste, while the vehicle is operating
- No wasted time, no missed lube points and no under or over greasing ever again!
- Systems to fit most OEM on-road vehicles, including specialty fire trucks, cement trucks and waste haulers
- Field-proven - some of the largest fleets have been using Grease Jockey for decades!
Ruggedized Construction
- U.V., chemical, and high-impact resistant - rigorously tested and field-proven.
NLGI #2 Compatible
- NLGI #000 to #2 and 2000 psi (138 bar).
Low Level Signal
- Alerts when out of grease.
Electrical Drive
- 24 VDC (4 Amp) power. Protected against motor burn-out.
Integrated Controls
- Includes adjustable ON/OFF times, PIN code lockout, and on-panel alerts.
Specifications & Documents
Technical Specifications
Convert to Metric| Application | On-Road Vehicles |
|---|---|
| Compatible Material | Grease |
| Construction | Nylon, Amorphous Polyamide, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE |
| Fluid Outlet Size (in) | 0.5625 |
| Fluid Outlet Thread Type | SAE ORB |
| IP Rating | IP69K |
| Includes | Electric Grease Jockey Pump, 30 ft (9 m) Power Cable |
| Maximum Flow Rate (ci/min) | 0.6 |
| Maximum Fluid Output Pressure (psi) | 2000 |
| Maximum NLGI Grade | #2 |
| Maximum Voltage (V dc) | 32 |
| Maximum Working Pressure (MPa) | 13.8 |
| Maximum Working Pressure (psi) | 2000 |
| Minimum Voltage (V dc) | 18 |
| Model | Grease Jockey |
| Number of Pump Elements | 1 |
| Power Type | Electric |
| Reservoir Size (L) | 2 |
| Reservoir Size (gal) | 0.528 |
| Type | Electric Piston Pump |
| Voltage (V dc) | 24 |
| Application | On-Road Vehicles |
| Compatible Material | Grease |
| Construction | Nylon, Amorphous Polyamide, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE |
| Fluid Outlet Size (in) | 0.5625 |
| Fluid Outlet Size (mm) | 14.2875 |
| Fluid Outlet Thread Type | SAE ORB |
| IP Rating | IP69K |
| Includes | Electric Grease Jockey Pump, 30 ft (9 m) Power Cable |
| Maximum Fluid Output Pressure (bar) | 138 |
| Maximum Fluid Output Pressure (psi) | 2000 |
| Maximum NLGI Grade | #2 |
| Maximum Voltage (V dc) | 32 |
| Maximum Working Pressure (MPa) | 13.8 |
| Maximum Working Pressure (bar) | 137.9 |
| Maximum Working Pressure (kPa) | 13790 |
| Maximum Working Pressure (psi) | 2000 |
| Minimum Voltage (V dc) | 18 |
| Model | Grease Jockey |
| Number of Pump Elements | 1 |
| Power Type | Electric |
| Reservoir Size (L) | 2 |
| Type | Electric Piston Pump |
| Voltage (V dc) | 24 |
Product Manuals
Sales Literature
Certifications
