QUANTM Electric Pumps
The Future of Fluid Handling

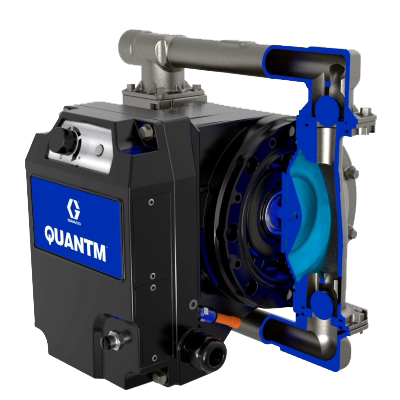

Introducing QUANTM, the revolutionary electric double diaphragm (EODD) pump designed to maximize efficiency while minimizing costs. By reducing energy consumption by up to 80%, QUANTM eliminates the need for compressed air with its innovative XT-motor, delivering quieter operation and removing the risk of harmful leaks for a safer workplace. Unlike traditional pumps, QUANTM combines the reliability of pneumatic double diaphragm technology with advanced features like I/O for seamless integration into existing control systems. As the greener, safer, and more cost-effective choice, QUANTM sets a new standard for industrial pumping solutions.
Sustainability Meets
Profitability
Quantm features
Efficient Electric Drive
- Up to 80% less energy consumption
- Requires NO air
- 40db sound level for operation flexibility
- NO freezing
Proven AODD Benefits
- Stalls under pressure
- Self-priming
- Dry running
- Handles solids and abrasive materials
Integrated Controls
- Control flow and pressure at the pump
- I/O for remote operation
Plug-and-Play
- Factory wired for quick install
- 120V, 240V and 480V options
Automated Priming
QUANTM pump feature comparison
Designed for safety, reliability, control and efficiency, the QUANTM electric diaphragm pump excels in a lot of aspects. Discover how QUANTM outshines competing technologies
| Features | QUANTM Electric Diaphragm Pumps | Other Electric Diaphragm Pumps | Air-Operated Diaphragm Pumps | Peristaltic Pumps | Progressive Cavity Pumps | Rotary Lobe Pumps |
|---|---|---|---|---|---|---|
| Stall Under Pressure | ✔ | ✘ | ||||
| Runs Dry | ✔ | ✘ | ✘ | ✘ | ||
| Self Priming | ✔ | ✘ | ✘ | ✘ | ✘ | |
| Energy Efficient Electric Drive | ✔ | ✘ | ✘ | ✘ | ✘ | |
| No Rotational Shaft Seal | ✔ | ✘ | ✘ | ✘ | ||
| Integrated Controls | ✔ | |||||
| Integrated Automation Capabilities | ✔ |
A massive leap forward
QUANTM PUMPS SAVE UP TO 80% ON ENERGY COSTS
ENERGY COST SAVINGS
Conserve energy and reduce costs to increase your bottom-line savings
NEXT-LEVEL PLANT PRODUCTIVITY
Boost automation by linking QUANTM to your plant software for pump monitoring and enhanced controllably
PLUG-AND-PLAY
Functions like a classic pneumatic pump, fits existing fluid transfer systems but runs on electricity
SUSTAINABILITY
Mitigate the effects of climate change by using significantly less energy and reducing product waste
WORKER SAFETY
Effective noise reduction, combined with no muffer, eliminates the risk of harmful material being airborne
SIMPLIFIED MAINTENANCE
The quieter, lightweight pump is easier to install and service compared to competitive pump technologies.
An electric solution for many industrial and hygienic applications
We designed QUANTM to be quieter, lighter, more reliable and easier for anyone in your team to operate and maintain. QUANTM pumps come in several configurations offering a solution for most fluid applications.
| QUANTM Industrial Diaphragm Pumps |  |
 |
 |
 |
| Model | i30 | i80 | i120 | i120 LP |
| Maximum Flow Rate | 30 gpm (114 lpm) | 80 gpm (300 lpm) | 120 gpm (454 lpm) | 120 gpm (454 lpm) |
| Maximum Fluid Pressure | 100 psi (7 bar, 0.7 MPa) | 100 psi (7 bar, 0.7 MPa) | 60 psi (4 bar, 0.4 MPa) | 60 psi (4 bar, 0.4 MPa) |
| Port Size | 1 inch | 1 1/2 inch | 2 inch | 2 inch |
| Materials of Con | Aluminum, Polypropylene, Conductive Polypropylene, Stainless Steel, PVDF | Aluminum, Polypropylene, Conductive Polypropylene, Stainless Steel, PVDF | Aluminum, Polypropylene, Conductive Polypropylene, Stainless Steel, PVDF, Cast Iron | Aluminum |
| Voltages | 120V – single phase 480 – 3 phase |
240V – 3 phase 480V – 3 phase |
240V – 3 phase 480V – 3 phase |
240V – 3 phase 480V – 3 phase |
| QUANTM Hygienic Diaphragm Pumps |  |
|
 |
|
 |
|---|---|---|---|---|---|
| Model | h30 | h80 | h80 LP | h120 | h120 LP |
| Maximum Flow Rate | 30 GPM (114 lpm) | 80 GPM (300 lpm) | 65 GPM (245 lpm) | 120 GPM (454 lpm) | 105 GPM (397 lpm) |
| Maximum Fluid Pressure | 100 psi (7 bar, 0.7 MPa) | 100 psi (7 bar, 0.7 MPa) | 100 psi (7 bar, 0.7 MPa) | 60 psi (4 bar, 0.4 MPa) | 60 psi (4 bar, 0.4 MPa) |
| Port Size | 1 inch | 1 1/2 inch | 1 1/2 inch | 2 inch | 3inch |
| Surface Finish | Food Grade (FG – 125 Ra) High Sanitary (HS – 32 Ra) Pharmaceutical (PH – 20 Ra) |
Food Grade (FG – 125 Ra) High Sanitary (HS – 32 Ra) Pharmaceutical (PH – 20 Ra) 3A approved (3A – 32 Ra) |
High Sanitary (HS – 32 Ra) | Food Grade (FG – 125 Ra) High Sanitary (HS – 32 Ra) Pharmaceutical (PH – 20 Ra) 3A approved (3A – 32 Ra) |
High Sanitary (HS – 32 Ra) |
| Voltages | 120V – single phase 240V - 3 phase 480V - 3 phase |
240V – 3 phase 480V – 3 phase |
240V – 3 phase 480V – 3 phase |
240V – 3 phase 480V – 3 phase |
240V – 3 phase 480V – 3 phase |
BETTER ROI WITH NO TRADEOFFS
Calculate your savings
Pumps are key to manufacturing and offer an easy way to boost sustainability and efficiency. Switching from AODD to QUANTM electric pumps cuts energy use by eliminating compressed air.
Enter your operating parameters to see your potential savings with QUANTM electric pumps.
