GrindLazer High Production Series

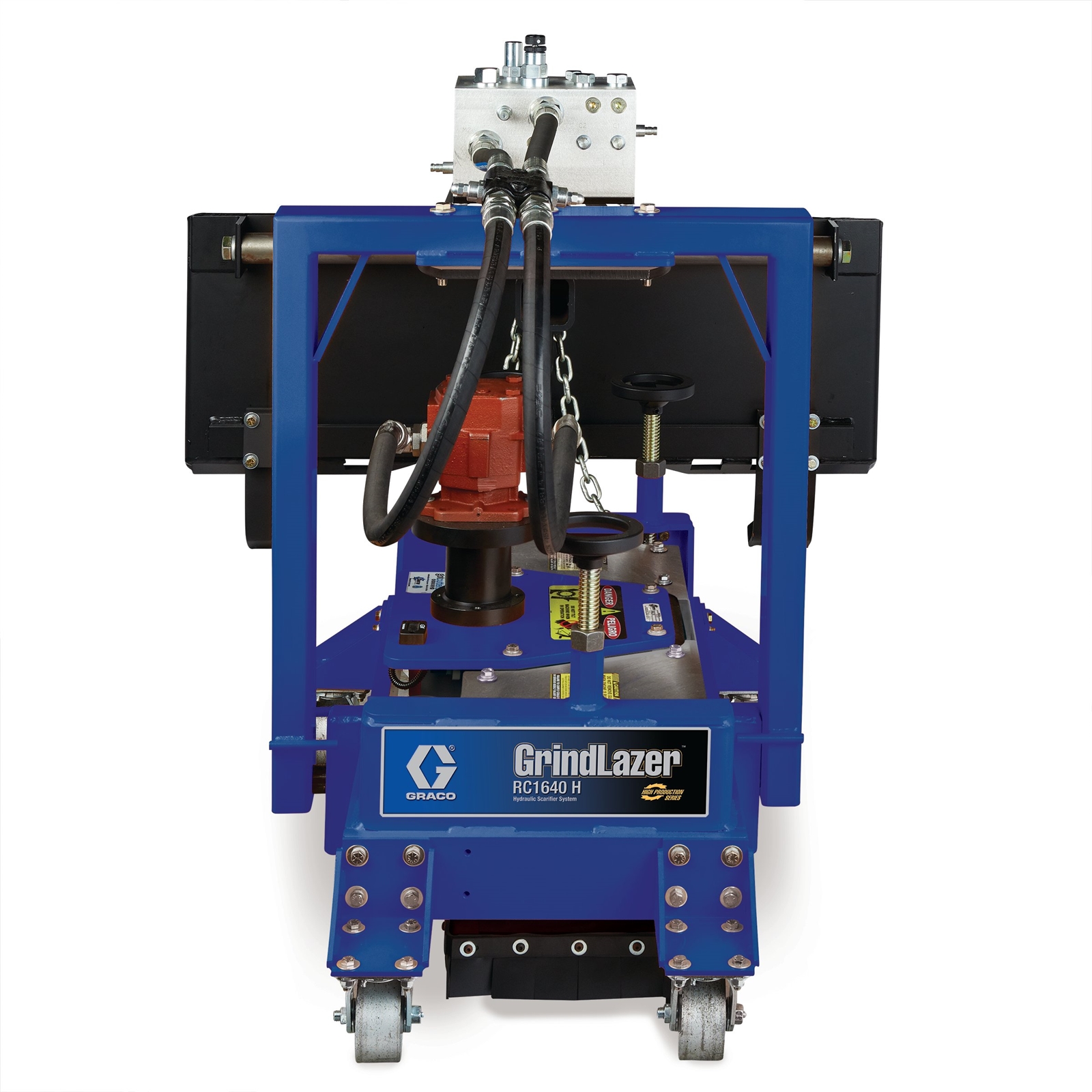

GrindLazer HP RC1640 H Hydraulic-Powered Scarifier
Part Number: 25P472
GrindLazer High Production Series
GrindLazer HP RC1640 H Hydraulic-Powered Scarifier
Part Number: 25P472
The GrindLazer HP RC1640 H rotary scarifier offers the highest rate of groove-free marking removal and can be used to remove markings on both concrete and asphalt surfaces. This machine use three cutter assemblies to remove a path up to 16 inches wide.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The GrindLazer HP RC1640 H rotary scarifier offers the highest rate of groove-free marking removal and can be used to remove markings on both concrete and asphalt surfaces. This machine use three cutter assemblies to remove a path up to 16 inches wide.
The RC1640 H operates off the vehicle’s high-flow hydraulic system.
- No-Groove Line Eraser
- Rotary cut removes lines without leaving any grooves
- Adjustable Cut Width
- Three cutter heads can be swiveled to remove a path up to 16 inches (40.6 cm) wide
- Depth Control System
- Multi-point depth adjustment for accurate depth control
- Spring Suspension
- Allows cutters to "float" on surface
- Universal Quick-Attachment Backplate
- Quick, tool-free connection to most skid loader equipment
- Jobsite Tough Design
- Heavy-duty all steel frame
- Dust Removal
- Vacuum port for LazerVac vacuum system
Specifications & Documents
Technical Specifications
Convert to Metric| Cutter Type | Rotary |
|---|---|
| Depth Adjustment | Manual |
| Maximum Cut Rate (ft2/hr) | 2400 |
| Maximum Cut Width (in) | 16 |
| Model | GrindLazer |
| Number of Cutters | 3 |
| Product Series | High Production |
| Series | High Production Series |
| Type | Concrete Scarifier |
| Vacuum Port | Yes |
| Cutter Type | Rotary |
| Depth Adjustment | Manual |
| Maximum Cut Width (cm) | 41 |
| Maximum Cut Width (mm) | 406 |
| Model | GrindLazer |
| Number of Cutters | 3 |
| Product Series | High Production |
| Series | High Production Series |
| Type | Concrete Scarifier |
| Vacuum Port | Yes |
