GrindLazer High Production Series

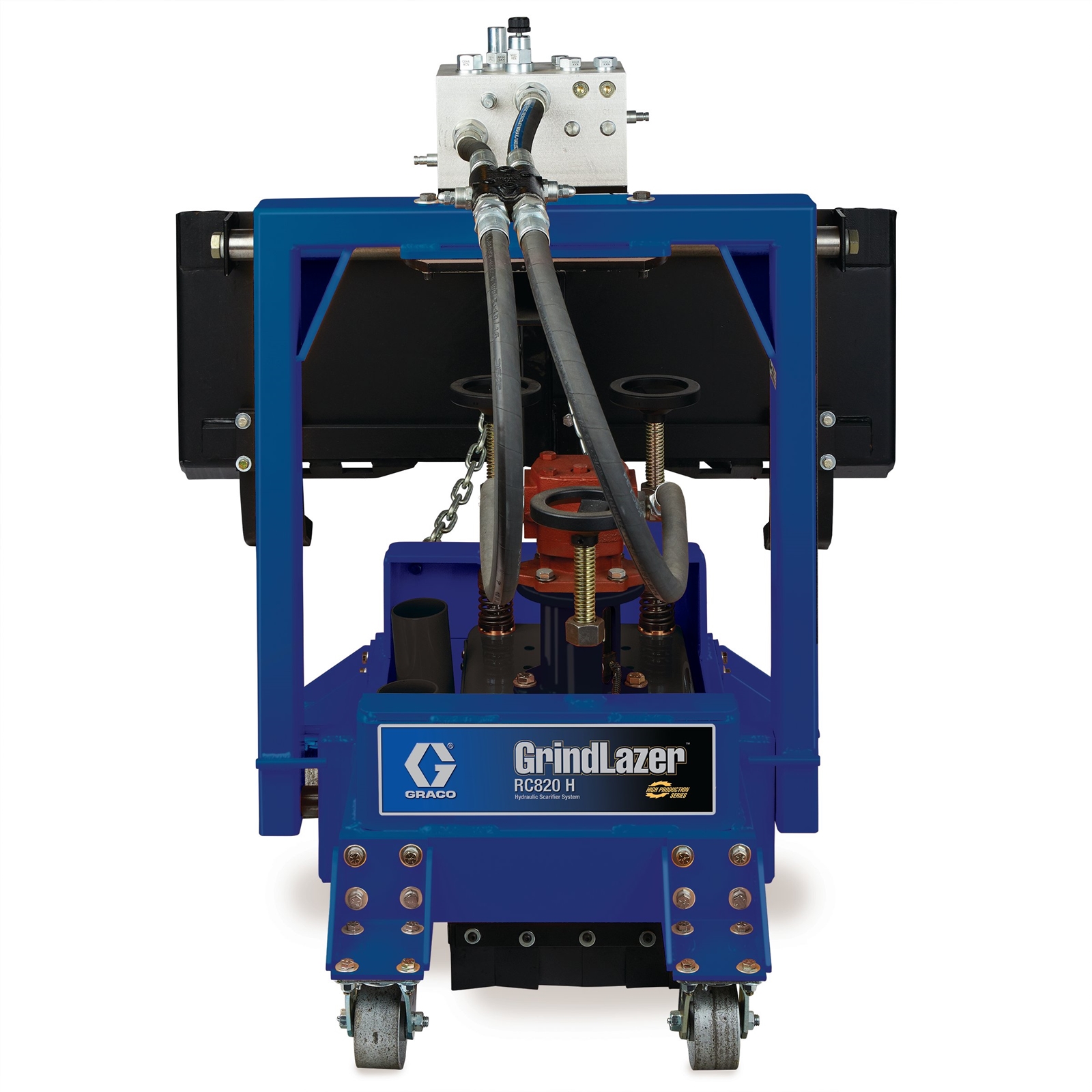

GrindLazer HP RC820 H Hydraulic-Powered Scarifier
Part Number: 25P471
GrindLazer High Production Series
GrindLazer HP RC820 H Hydraulic-Powered Scarifier
Part Number: 25P471
The GrindLazer HP RC820 H rotary scarifier is designed for high-volume marking removal. It is designed to be mounted to skid steer equipment with low-flow hydraulic systems and uses a variety of rotary cutter assemblies to remove different types of markings.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The GrindLazer HP RC820 H rotary scarifier is designed for high-volume marking removal. It is designed to be mounted to skid steer equipment with low-flow hydraulic systems and uses a variety of rotary cutter assemblies to remove different types of markings.
- High-Volume Removal
- Single cutter head removes 8 inch (20 cm) wide path
- Allows for removal on uneven surfaces
- Low-Flow Hydraulic System
- Operates off most low-flow hydraulic systems
- No-Groove Line Eraser
- Rotary cut removes lines without leaving any grooves
- Depth Control System
- Multi-point depth adjustment for accurate depth control
- Spring Suspension
- Allows cutters to "float" on surface
- Universal Quick-Attachment Backplate
- Quick, tool-free connection to most skid loader equipment
- Jobsite Tough Design
- Heavy-duty all steel frame
- Dust Removal
- Vacuum port for LazerVac vacuum system
Specifications & Documents
Technical Specifications
Convert to Metric| Cutter Type | Rotary |
|---|---|
| Depth Adjustment | Manual |
| Maximum Cut Rate (ft2/hr) | 1000 |
| Maximum Cut Width (in) | 8 |
| Model | GrindLazer |
| Product Series | High Production |
| Series | High Production Series |
| Type | Concrete Scarifier |
| Vacuum Port | Yes |
| Cutter Type | Rotary |
| Depth Adjustment | Manual |
| Maximum Cut Width (cm) | 20 |
| Maximum Cut Width (mm) | 203 |
| Model | GrindLazer |
| Product Series | High Production |
| Series | High Production Series |
| Type | Concrete Scarifier |
| Vacuum Port | Yes |
