DutyMax GH 675DI

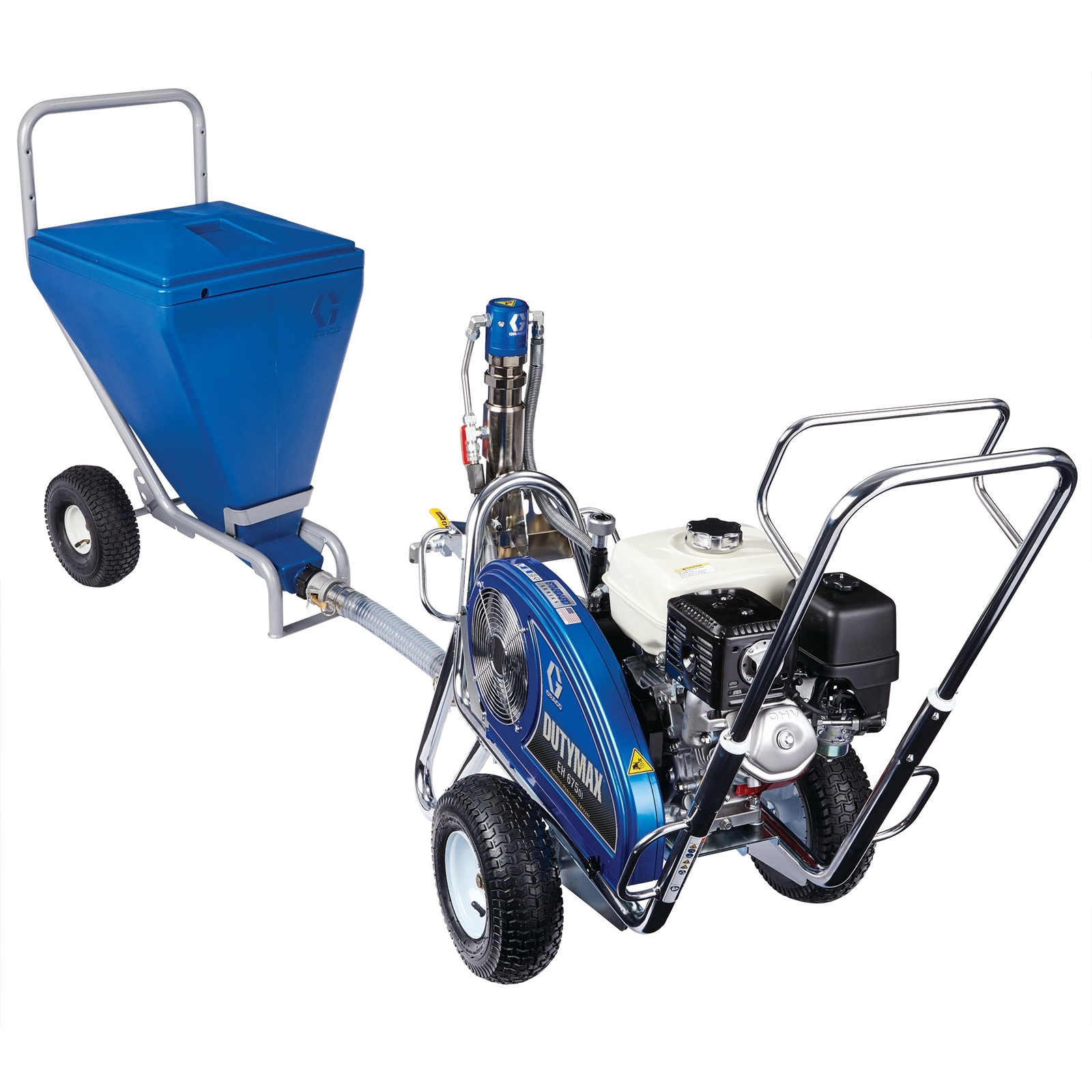

DutyMax GH 675DI Gas Hydraulic Airless Sprayer, Big 150 & Hopper
Part Number: 25D226
DutyMax GH 675DI
DutyMax GH 675DI Gas Hydraulic Airless Sprayer, Big 150 & Hopper
Part Number: 25D226
The DutyMax GH 675DI is the preferred choice for high production professional contractors who handle hard-to-atomize materials such as silicone and other waterproofing and protective coating materials. This compact sprayer includes the ultimate portability anywhere the job demands.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The DutyMax GH 675DI is the preferred choice for high production professional contractors who handle hard-to-atomize materials such as silicone and other waterproofing and protective coating materials. This compact sprayer includes the ultimate portability anywhere the job demands.
Tackle the toughest coatings with a maximum pressure of 6750 psi (465 bar) and flow rates up to 1.5 gpm (5.7 lpm). Significantly faster than manual rolling or squeegee applications, this is the ideal solution for cut-in and detail work on large jobs. Cleanup is simple and economical using less solvent than larger systems. Converts to 3300 psi (227 bar) / 3 gpm (11.3 lpm) pump with optional kit to spray both silicone and acrylics — like having 2 sprayers in 1! Removable engine provides the ultimate versatility for transporting.
- 6750 PSI Direct Immersion Pump
- Submerged foot valve
- Stainless steel rod and hard chrome cylinder deliver unmatched durability and life
- Easily loads and pumps high-viscosity fluids
- Filter-less design with extra-large material outlet optimizes flow up to 1.5 gpm
- Heavy-Duty Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
- Honda® Engine
- 270 cc (9 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- High-Pressure Gun/Hose
- Durable XTR-7 HF 7250 psi spray gun
- Easy to pull trigger for less fatigue
- High-pressure Xtreme Duty hose
- Ready-To-Spray Big 150 System
- Configured with 150 feet of high-pressure hose
- 20 in tip extension
- 180° swivel
- XHD 523, 527, 531 Tips and Guard
- 1/2 in x 150 ft Xtreme-Duty Airless Hose
- 3/8 in x 10 ft Xtreme-Duty Airless Whip Hose
- All the fittings you will need

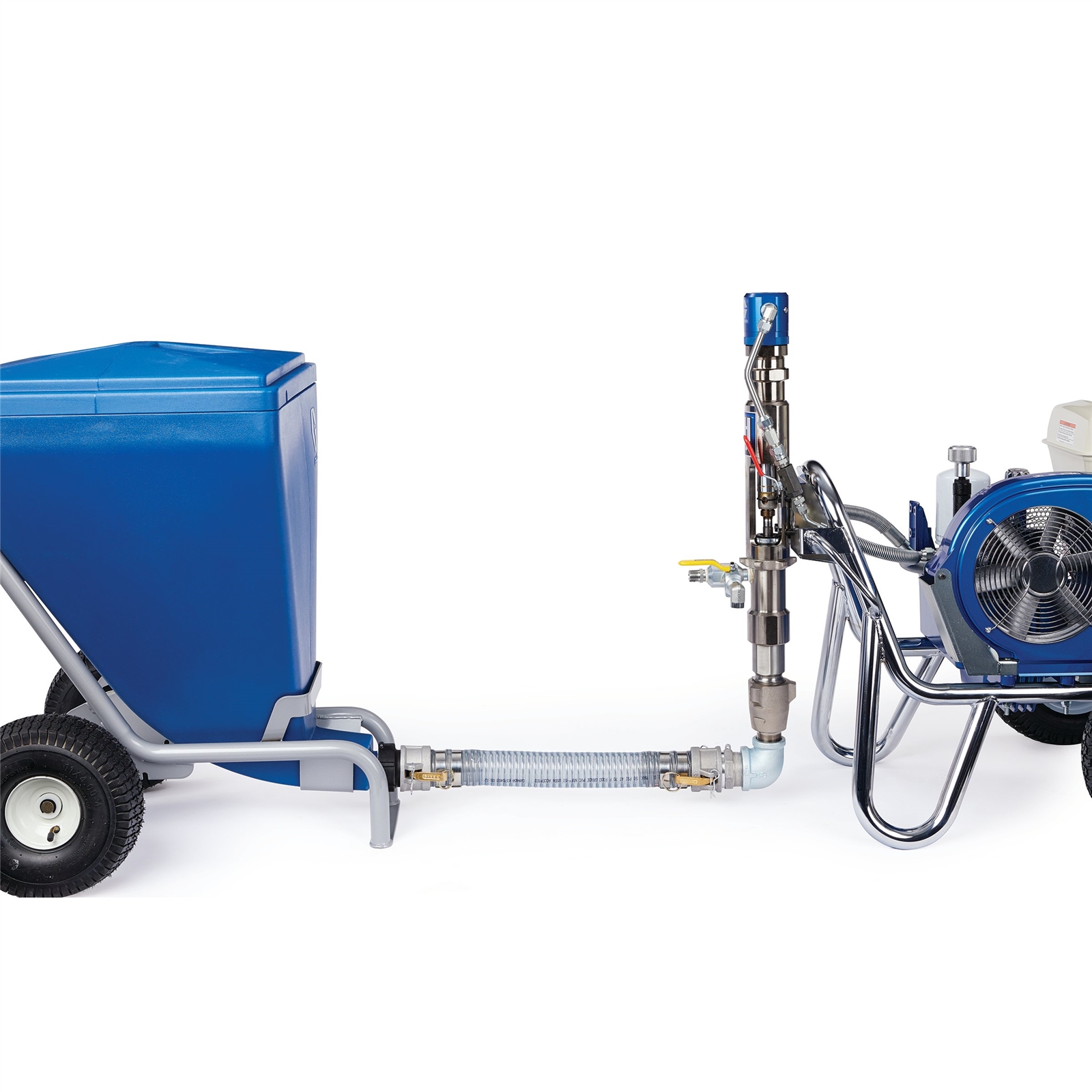

- 25 gallon material hopper with couplings
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Intumescent, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Silicone, Texture Mud, Waterproofing |
|---|---|
| Compatible Replacement Pump | 17U996 |
| Includes | XTR-7 HF Gun with Swivel, XHD RAC 523 Spray Tip, XHD RAC 527 Spray Tip, XHD RAC 531 Spray Tip, XHD RAC Guard, 20 in Tip Extension, 180° Tip Swivel, 1/2 in x 150 ft Xtreme-Duty Airless Hose, 3/8 in x 10 ft Xtreme-Duty Airless Whip Hose, 25 Gallon Material Hopper, TSL 4 oz |
| Maximum Flow Rate (GPM) | 1.5 |
| Maximum Tip Size (in) | .041 |
| Maximum Working Pressure (psi) | 6750 |
| Model | DutyMax |
| Power Source | Gas Hydraulic |
| Pump Mount Type | QuikChange |
| Pump Type | Endurance |
| Series | GH 675DI |
| Type | Airless Sprayer |
| Compatible Material | Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Intumescent, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Silicone, Texture Mud, Waterproofing |
| Compatible Replacement Pump | 17U996 |
| Includes | XTR-7 HF Gun with Swivel, XHD RAC 523 Spray Tip, XHD RAC 527 Spray Tip, XHD RAC 531 Spray Tip, XHD RAC Guard, 20 in Tip Extension, 180° Tip Swivel, 1/2 in x 150 ft Xtreme-Duty Airless Hose, 3/8 in x 10 ft Xtreme-Duty Airless Whip Hose, 25 Gallon Material Hopper, TSL 4 oz |
| Maximum Tip Size (in) | .041 |
| Maximum Working Pressure (bar) | 472.5 |
| Maximum Working Pressure (kPa) | 4725 |
| Maximum Working Pressure (psi) | 6750 |
| Model | DutyMax |
| Power Source | Gas Hydraulic |
| Pump Mount Type | QuikChange |
| Pump Type | Endurance |
| Series | GH 675DI |
| Type | Airless Sprayer |
Product Manuals
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| XTR706 | GUN, XTR7, 1"RD, 4 FINGER, XHD, HF | 1 | ea |
| XHD523 | XHD RAC SwitchTip, .523 | 1 | ea |
| XHD527 | XHD RAC SwitchTip, .527 | 1 | ea |
| XHD531 | XHD RAC SwitchTip, .531 | 1 | ea |
| XHD001 | RAC XHD Guard | 1 | ea |
| 246297 | 180° Spray Nozzle, 7/8-14 UNC-2B | 1 | ea |
| 25D078 | HOPPER, MATERIAL, 25 GALLON | 1 | ea |
| 238049 | TSL Throat Seal Liquid, 4 oz | 1 | ea |
