GH 833

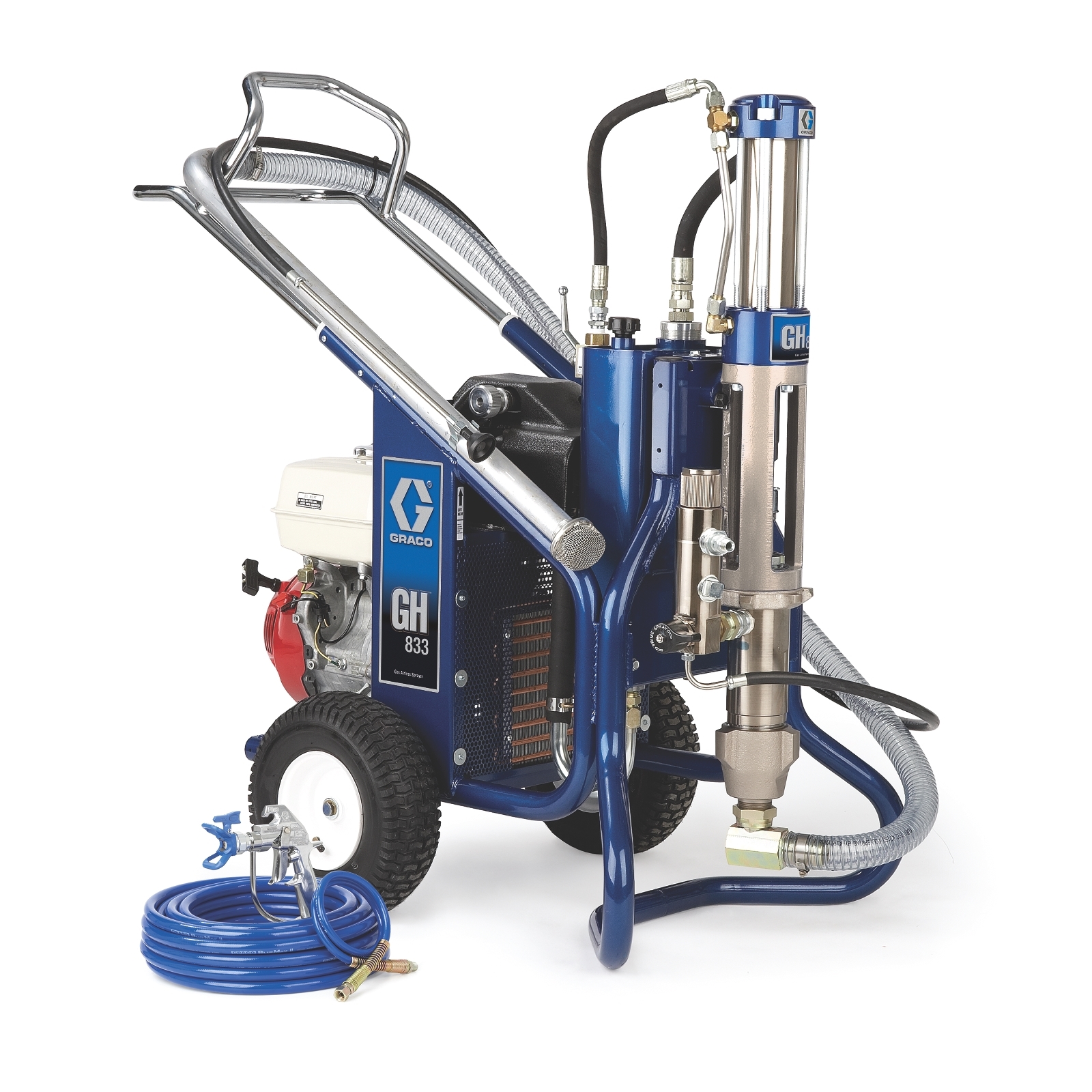

GH 833 Gas Hydraulic Sprayer, Complete
Part Number: 249617
GH 833
GH 833 Gas Hydraulic Sprayer, Complete
Part Number: 249617
The GH 833 is the preferred choice for high production professional contractors who spray the wide range of materials. This jobsite-proven workhorse is the answer when you demand ruggedness, performance and value.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The GH 833 is the preferred choice for high production professional contractors who spray the wide range of materials. This jobsite-proven workhorse is the answer when you demand ruggedness, performance and value.
- Honda® Engine
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Heavy-Duty Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
- MaxLife Endurance Pump
- Proven design and performance
- Only 16 cycles per gallon (4.2 cycles per liter)
- Exclusive MaxLife rod and sleeve delivers unmatched durability and life – Graco’s best
- Exclusive QuikChange Pump System and QuikAccess Intake Valve eliminates downtime
- Flow-Through Filter System
- Inside/out design eliminates clogged filters
- Eliminates tip clogs
- Ready-To-Spray Complete System
- Configured with 50 feet of pressure-rated hose, gun, tips, and all the fittings you will need
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing |
|---|---|
| Compatible Replacement Pump | 287834 |
| Control Type | N/A |
| Engine Brand | Honda |
| Engine Size (HP) | 13 |
| Fluid Inlet Size (in) | 1-1/2 to 11-1/2 |
| Fluid Inlet Thread Type | MNPT |
| Fluid Outlet Size (in) | 1 to 11-1/2 |
| Fluid Outlet Thread Type | FNPT |
| Frame Configuration | Cart |
| Includes | Silver Plus Gun, RAC X 517 Spray Tip, RAC X 655 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II HP Airless Hose, 1/4 in x 3 ft BlueMax II HP Airless Whip Hose |
| Material Application | Paints, Primers |
| Maximum Flow Rate (GPM) | 4.0 |
| Maximum Hose Length (ft) | 50 |
| Maximum Sound Pressure Level (dB(A)) | 91 |
| Maximum Tip Size (in) | 0.065 |
| Maximum Tip Size 2 Guns (in) | 0.046 |
| Maximum Tip Size 3 Guns (in) | 0.037 |
| Maximum Tip Size 4 Guns (in) | 0.032 |
| Maximum Tip Size 5 Guns (in) | 0.029 |
| Maximum Tip Size 6 Guns (in) | 0.026 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Model | GH |
| Motor Type | Hydraulic Motor |
| Number of Guns | 6 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Power Rating (HP) | 13 |
| Power Rating (W) | 9694 |
| Power Rating (kW) | 9.7 |
| Power Source | Gas Hydraulic |
| Pressure Control Type | Pressure Control Knob |
| Product Type | Single Leg |
| Pump Mount Type | QuikChange |
| Pump Rod Type | MaxLife |
| Pump Type | Endurance |
| Series | 833 |
| Type | Airless Sprayer |
| Weight (lb) | 360 |
| Compatible Material | Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing |
| Compatible Replacement Pump | 287834 |
| Control Type | N/A |
| Engine Brand | Honda |
| Fluid Inlet Size (in) | 1-1/2 to 11-1/2 |
| Fluid Inlet Thread Type | MNPT |
| Fluid Outlet Size (in) | 1 to 11-1/2 |
| Fluid Outlet Thread Type | FNPT |
| Frame Configuration | Cart |
| Includes | Silver Plus Gun, RAC X 517 Spray Tip, RAC X 655 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II HP Airless Hose, 1/4 in x 3 ft BlueMax II HP Airless Whip Hose |
| Material Application | Paints, Primers |
| Maximum Flow Rate (L/min) | 15.1 |
| Maximum Hose Length (m) | 15 |
| Maximum Sound Pressure Level (dB(A)) | 91 |
| Maximum Tip Size (in) | 0.065 |
| Maximum Tip Size 2 Guns (in) | 0.046 |
| Maximum Tip Size 3 Guns (in) | 0.037 |
| Maximum Tip Size 4 Guns (in) | 0.032 |
| Maximum Tip Size 5 Guns (in) | 0.029 |
| Maximum Tip Size 6 Guns (in) | 0.026 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (bar) | 275.8 |
| Maximum Working Pressure (kPa) | 27580 |
| Maximum Working Pressure (psi) | 4000 |
| Model | GH |
| Motor Type | Hydraulic Motor |
| Number of Guns | 6 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Power Rating (W) | 9694 |
| Power Rating (cc) | 390 |
| Power Rating (kW) | 9.7 |
| Power Source | Gas Hydraulic |
| Pressure Control Type | Pressure Control Knob |
| Product Type | Single Leg |
| Pump Mount Type | QuikChange |
| Pump Rod Type | MaxLife |
| Pump Type | Endurance |
| Series | 833 |
| Type | Airless Sprayer |
| Weight (kg) | 163 |
Product Manuals
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 246240 | Silver Plus Airless Spray Gun, 2 Finger Trigger, RAC X 517 SwitchTip | 1 | ea |
| LTX517 | RAC X SwitchTip, 517 | 1 | ea |
| LTX655 | RAC X SwitchTip, 655 | 1 | ea |
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 277251 | BlueMax II HP Airless Hose, 3/8 in x 50 ft, 4000 psi | 1 | ea |
| 277249 | BlueMax II HP Airless Whip Hose, 1/4 in x 3 ft (0.9 m), 4000 psi | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 246240 | Silver Plus Airless Spray Gun, 2 Finger Trigger, RAC X 517 SwitchTip |
| 277251 | BlueMax II HP Airless Hose, 3/8 in x 50 ft, 4000 psi |
| 245103 | Q KIT REPAIR, DRAIN VALVE |
| 24Y566 | KIT, REPAIR, HYDRAULIC MOTOR |
| 287870 | KIT, REPAIR, PACKING, HYDR. |
| 237840 | Inlet Strainer, SST Cap, 1 1/4 in |
| 287916 | GB KIT, SUCT. HOSE-NON SLVT RES |
| 117285 | PACKING, O-RING |
| 15C766 | TUBE, DIFFUSION |
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
