TexSpray RTX 1400SI
TexSpray RTX 1400SI Texture Sprayer
Part Number: 17H572
TexSpray RTX 1400SI
TexSpray RTX 1400SI Texture Sprayer
Part Number: 17H572
The TexSpray 1400SI provides everyday reliability with the basic features you want to provide the finish you need.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The TexSpray 1400SI provides everyday reliability with the basic features you want to provide the finish you need.
Graco Standard Interior Series sprayers provide everyday reliability for the residential and remodeling contractor who is applying texture periodically on mostly smaller jobs.
- Jobsite-Proven RotoFlex II Pump
- Get the Job Done Quickly
- 1.4 gpm output
- Innovative braided pump tube for longest life
- High-Output 6.1 cfm Air Compressor
- 33% more air for demanding finishes
- Maintenance-free design
- Projects materials farther
- 120V AC High-Output Electric Motor
- Improved Power and Performance
- Optimized single-motor design operates air compressor and RotoFlex pump

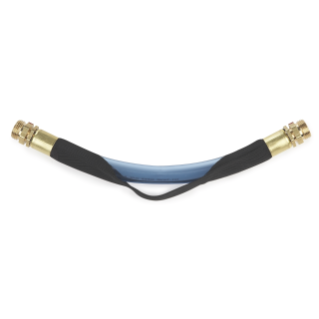

- Skip-Bond Material/Air Hose
- Improved Handling & Flexibility
- Both hoses are permanently bonded together for easy handling
- FlexChange Pump Section
- Eliminate Costly Downtime
- Swap your RotoFlex pump in seconds - no tools required
- Adjustable Material Flow Control
- Maximum Control
- Quickly adjust material flow up or down with easy-to-read gauge
- Lightweight Spray Gun
- Comfortable Spraying
- Easy-to-use air & trigger adjustments in a durable, corrosion-resistant design

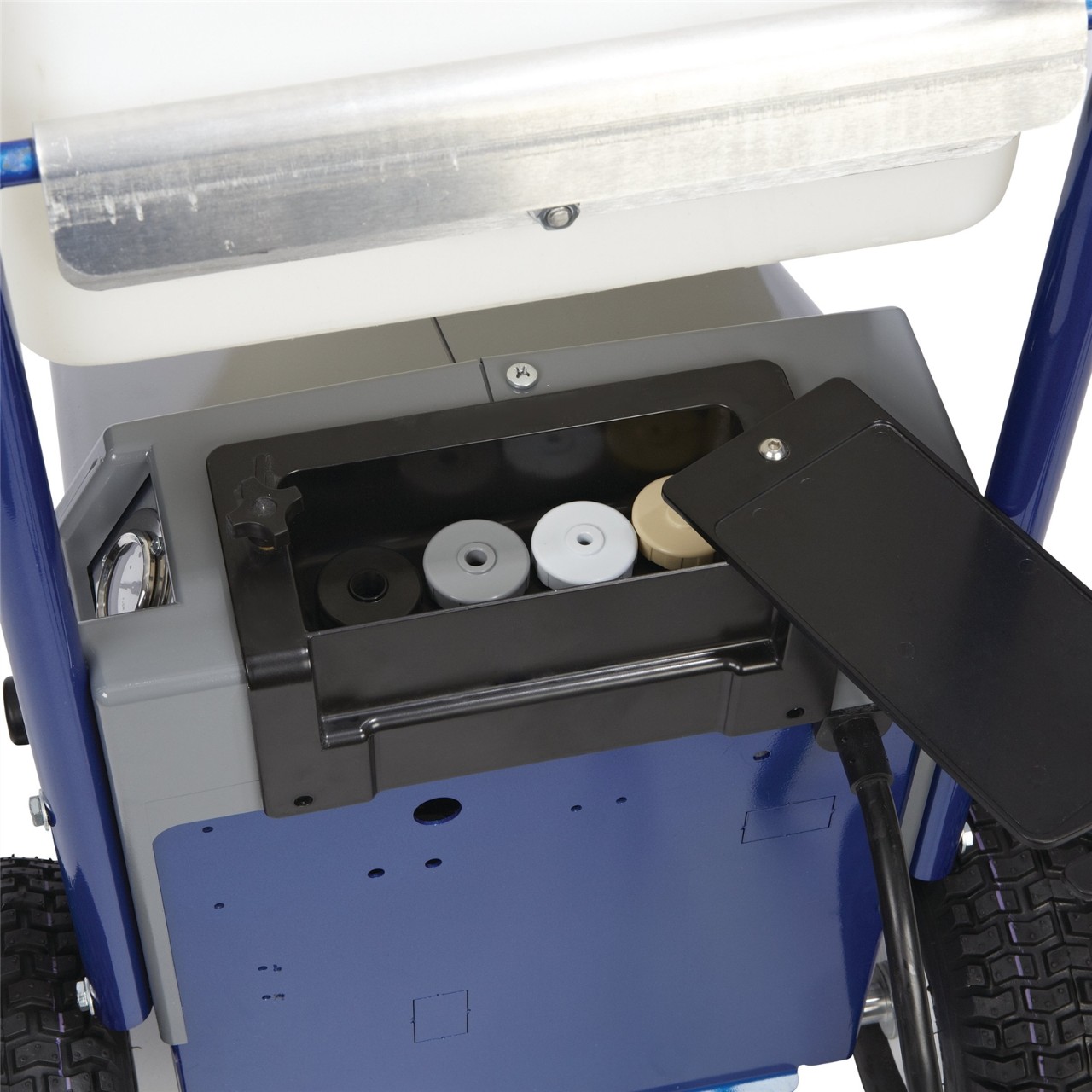

- Onboard Storage
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 15 |
|---|---|
| Compatible Material | Drywall Mud |
| Hopper Capacity (gal) | 10 |
| Includes | Lightweight Air Spray Trigger Gun, 3/4 in x 25 ft Material/Air Hose, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle |
| Material Application | Liquid Waterproofing |
| Maximum Flow Rate (GPM) | 1.4 |
| Maximum Working Pressure (MPa) | 0.5 |
| Maximum Working Pressure (psi) | 70 |
| Model | TexSpray RTX |
| Motor Type | AC |
| Overall Height (in) | 40.9 |
| Overall Length (in) | 23.6 |
| Overall Width (in) | 19.38 |
| Power Source | Electric |
| Product Series | Standard Interior |
| Recommended Annual Usage | Up to 250 gallons per year |
| Series | 1400SI |
| Type | Air-Assisted Airless Sprayer |
| Voltage (V) | 120 |
| Amperage (A) | 15 |
| Compatible Material | Drywall Mud |
| Hopper Capacity (L) | 38 |
| Includes | Lightweight Air Spray Trigger Gun, 3/4 in x 25 ft Material/Air Hose, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle |
| Material Application | Liquid Waterproofing |
| Maximum Working Pressure (MPa) | 0.5 |
| Maximum Working Pressure (bar) | 4.8 |
| Maximum Working Pressure (kPa) | 480 |
| Maximum Working Pressure (psi) | 70 |
| Model | TexSpray RTX |
| Motor Type | AC |
| Overall Height (cm) | 104 |
| Overall Height (mm) | 1040 |
| Overall Length (cm) | 60 |
| Overall Length (mm) | 600 |
| Overall Width (cm) | 49 |
| Overall Width (mm) | 490 |
| Power Source | Electric |
| Product Series | Standard Interior |
| Recommended Annual Usage | Up to 250 gallons per year |
| Series | 1400SI |
| Type | Air-Assisted Airless Sprayer |
| Voltage (V) | 120 |
