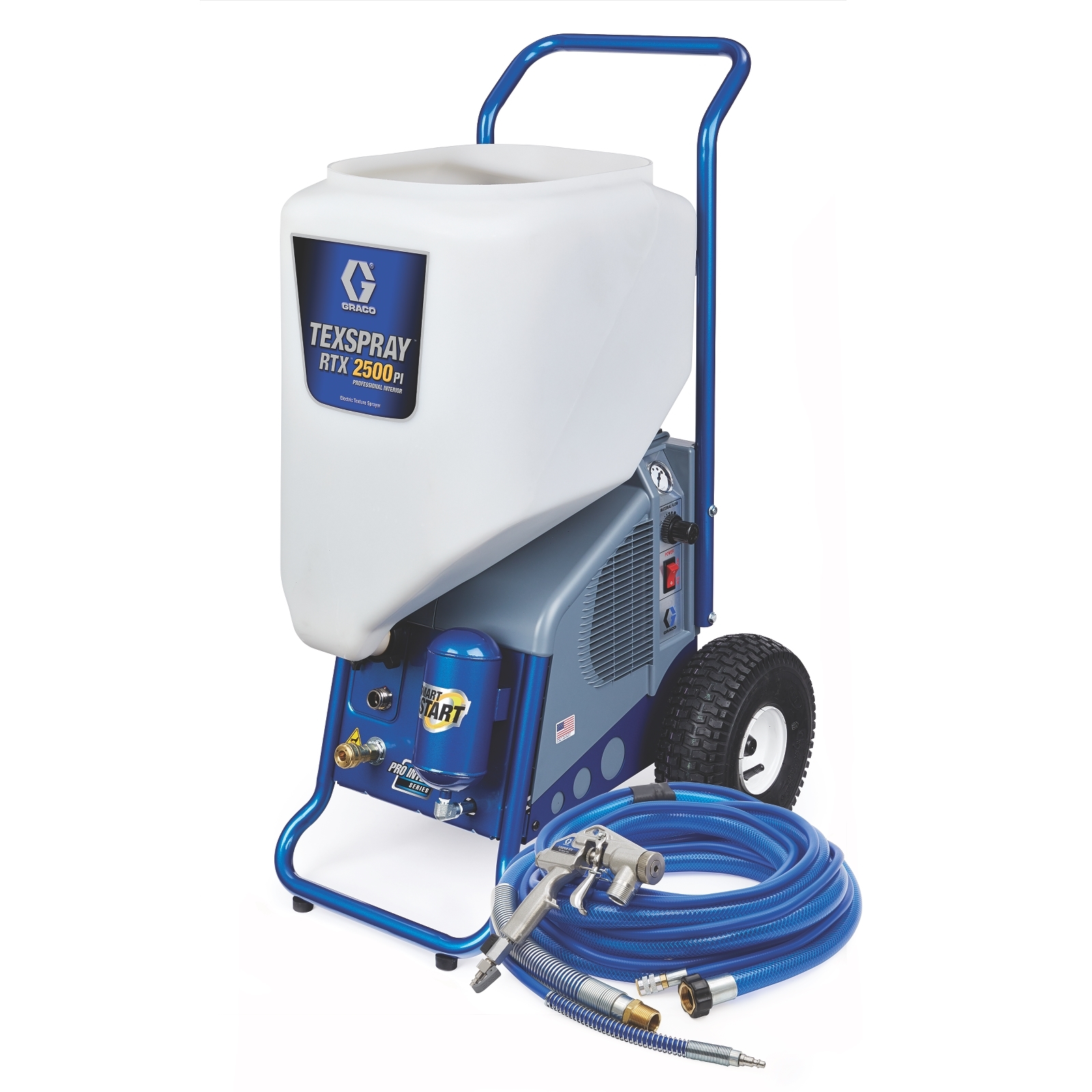

TexSpray RTX 2500PI

TexSpray RTX 2500PI Texture Sprayer

Part Number: 17U219

product image product image product image

TexSpray RTX 2500PI

TexSpray RTX 2500PI Texture Sprayer

Part Number: 17U219

The RTX 2500PI is an optimized texture system perfect for tradesmen and contractors seeking the time-saving features required for thicker materials and medium-to-large jobs. The RTX 2500PI delivers 2.5 gallons per minute and can handle up to 75 feet of hose to help get the job done faster.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The RTX 2500PI is an optimized texture system perfect for tradesmen and contractors seeking the time-saving features required for thicker materials and medium-to-large jobs. The RTX 2500PI delivers 2.5 gallons per minute and can handle up to 75 feet of hose to help get the job done faster.

The RTX Pro Interior Series delivers an optimized texture system perfect for tradesmen and contractors seeking the time-saving features required for medium-to-large jobs. This professional solution is designed for increased productivity to get you on and off the job site faster.

  • Jobsite Proven RotoFlex II Pump
    • Get the Job Done Quickly
    • 2.5 gpm output
    • Innovative braided pump tube for longest life
  • SmartStart System
    • Trigger-Activated Power
    • Automatically start & stop the pump and compressor
    • Soft-start eliminates material blasts to ensure a quality finish
    • Reduces noise and vibration while extending pump and compressor life
  • High-Output 6.1 cfm Air Compressor
    • 33% more air for demanding finishes
    • Maintenance-free design
    • Projects materials farther
  • 120V AC High-Output Electric Motor
    • Improved Power and Performance
    • Optimized single-motor design operates air compressor and RotoFlex pump
  • Skip-Bond Material/Air Hose
    • Improved Handling & Flexibility
    • Both hoses are permanently bonded together for easy handling
  • FlexChange Pump Section
    • Eliminate Costly Downtime
    • Swap your RotoFlex pump in seconds - no tools required
  • Adjustable Material Flow Control
    • Maximum Control
    • Quickly adjust material flow up or down with easy-to-read gauge
  • Heavy-Duty Aluminum Trigger Gun
    • Total Spray Control
    • Select prime mode at the gun with Integrated Prime Selector
    • Spray more material longer with durable aluminum design & oversized passages
  • WideTex Tips & Adapter
    • Increase Productivity by Over 20%
    • Spray uniform, repeatable patterns with less material and pressure adjustment
  • Onboard Storage

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 15
Includes Heavy-Duty Air Spray Trigger Gun, 1 in x 25 ft Material/Air Hose, 3 mm Round Nozzle, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle, 12 mm Round Nozzle, 4 mm WideTex Tip, 6 mm WideTex Tip, 8 mm WideTex Tip, 10 mm WideTex Tip, 12 mm WideTex Tip, XL WideTex Tip, WideTex Adapter
Maximum Flow Rate (GPM) 2.5
Maximum Hose Length (ft) 75
Maximum Working Pressure (MPa) 0.7
Maximum Working Pressure (psi) 100
Model TexSpray RTX
Power Source Electric
Product Series Pro Interior
Recommended Annual Usage Up to 2500 gallons per year
Series 2500PI
Type Air-Powered Sprayer
Amperage (A) 15
Includes Heavy-Duty Air Spray Trigger Gun, 1 in x 25 ft Material/Air Hose, 3 mm Round Nozzle, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle, 12 mm Round Nozzle, 4 mm WideTex Tip, 6 mm WideTex Tip, 8 mm WideTex Tip, 10 mm WideTex Tip, 12 mm WideTex Tip, XL WideTex Tip, WideTex Adapter
Maximum Flow Rate (L/min) 9.5
Maximum Hose Length (m) 23
Maximum Working Pressure (MPa) 0.7
Maximum Working Pressure (bar) 6.9
Maximum Working Pressure (kPa) 690
Maximum Working Pressure (psi) 100
Model TexSpray RTX
Power Source Electric
Product Series Pro Interior
Recommended Annual Usage Up to 2500 gallons per year
Series 2500PI
Type Air-Powered Sprayer

What's Included

Part No. Description Qty Unit
24S134 KIT, GUN, TEXTURE,INT 1 ea
17J420 Blue Translucent Hose Kit, 25 ft x 1 in 1 ea
15C883 3 mm Texture Gun Nozzle 1 ea
15C884 4 mm Texture Gun Nozzle 1 ea
15C885 6 mm Texture Gun Nozzle 1 ea
15C886 8 mm Texture Gun Nozzle 1 ea
15C887 10 mm Texture Gun Nozzle 1 ea
15C888 12 mm Texture Gun Nozzle 1 ea
24S142 WideTex Accessory Kit 1 ea

Repair Parts

Part No. Description
16M501 CORD, POWER
24S134 KIT, GUN, TEXTURE,INT
17K594 KIT, REPAIR, FLOW SWITCH
17K598 KIT,REPAIR,CIRCUIT BOARD
17K879 KIT,REPAIR,MOTOR,UNIV,120V
120660 SWITCH, POWER
