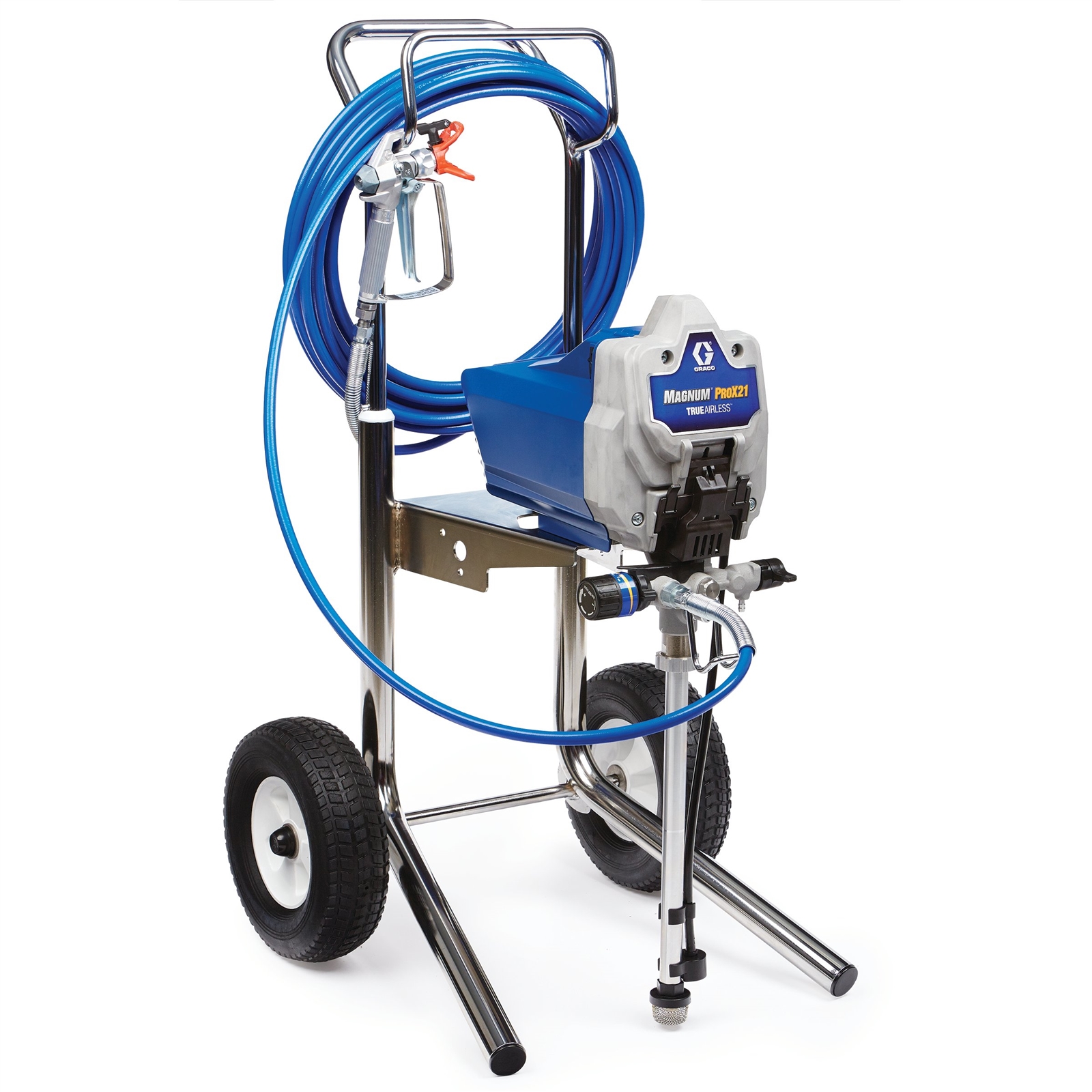

Magnum ProX21
Magnum ProX21 Electric TrueAirless Sprayer, Cart
Part Number: 17G182
Magnum ProX21
Magnum ProX21 Electric TrueAirless Sprayer, Cart
Part Number: 17G182
Property maintenance pros, remodelers and general contractors turn projects around smarter and faster with the ProX21 airless sprayer with built-in cart. This reliable, jobsite-proven sprayer allows you to spray heavier materials and hot solvents, including solvent-based lacquer.
$1039.00
USD MSRP
Product is Discontinued
Replacement Product Not Available
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertBuy Online
Features
Product Brochure
Property maintenance pros, remodelers and general contractors turn projects around smarter and faster with the ProX21 airless sprayer with built-in cart. This reliable, jobsite-proven sprayer allows you to spray heavier materials and hot solvents, including solvent-based lacquer.
- ProX Stainless Steel Piston Pump - For greater reliability and long life
- ProXChange Pump System - Eliminates downtime with quick, no-tools pump replacement on-the-job
- Longer Pump Stroke - Supports a 0.021 in tip to spray heavier material
- DC Motor - Supports longer extension cords and up to 200 feet of airless hose
- Hot Solvent Compatible - Handles hot solvents such as solvent-based lacquer
- PushPrime - Fast and reliable start-up every time
- SG3 Metal Spray Gun - Premium spray gun with hose swivel making it easy to manage longer hose lengths
- TrueAirless Spray Tip with SoftSpray Technology - greater control and less overspray with a wide range of coatings
- Durable Welded Frame - Easy to transport around the job site
- Additional Features
- Adjustable Pressure - Easy control of paint flow
- InstaClean Pump Filter - Extra filtration reduces tip clogging
- Power Flush - Connects to garden hose for fast and easy cleanup
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 12 |
|---|---|
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017, 0.019, 0.021 |
| Construction | Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE |
| Engine Size (HP) | 0.875 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Cart |
| Includes | SG3 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 50 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide |
| Inlet Paint Strainer | 35 Mesh Stainless Steel Screen |
| Maximum Flow Rate (GPM) | 0.47 |
| Maximum Hose Length (ft) | 200 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Tip Size 1 Gun (in) | 0.021 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 2500 |
| Model | Magnum |
| Number of Guns | 1 |
| Outlet Paint Filter | InstaClean |
| Overall Height (in) | 38.5 |
| Overall Length (in) | 20.8 |
| Overall Width (in) | 20.6 |
| Phase | 1 |
| Power Rating (HP) | 0.875 |
| Power Rating (W) | 653 |
| Power Rating (kW) | 0.65 |
| Power Source | Electric |
| Pressure Control Type | Adjustable |
| Product Series | Pro |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Stainless Steel |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Piston |
| Recommended Annual Usage (gal) | 800 |
| Series | ProX21 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Weight (lb) | 50 |
| Amperage (A) | 12 |
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017, 0.019, 0.021 |
| Construction | Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Cart |
| Includes | SG3 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 50 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide |
| Inlet Paint Strainer | 35 Mesh Stainless Steel Screen |
| Maximum Flow Rate (L/min) | 1.8 |
| Maximum Hose Length (m) | 61 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Tip Size 1 Gun (in) | 0.021 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 2500 |
| Model | Magnum |
| Number of Guns | 1 |
| Outlet Paint Filter | InstaClean |
| Overall Height (cm) | 97.8 |
| Overall Height (mm) | 978 |
| Overall Length (cm) | 52.8 |
| Overall Length (mm) | 528 |
| Overall Width (cm) | 52.3 |
| Overall Width (mm) | 523 |
| Phase | 1 |
| Power Rating (W) | 653 |
| Power Rating (kW) | 0.65 |
| Power Source | Electric |
| Pressure Control Type | Adjustable |
| Product Series | Pro |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Stainless Steel |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Piston |
| Series | ProX21 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Weight (kg) | 22 |
Product Manuals
Warranty
Sales Literature
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 243012 | SG3 Metal Spray Gun | 1 | ea |
| TRU515 | TrueAirless 515 Spray Tip | 1 | ea |
| 237859 | Spray Tip Guard | 1 | ea |
| 247340 | DuraFlex Hose 1/4 in x 50 ft | 1 | ea |
| 25M568 | FLUID, PUMP ARMOR, 8OZ | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 119276 | Replacement Fuse |
| 243012 | SG3 Metal Spray Gun |
| 17K684 | Repair Kit, Motor, Series A, ProX21 Stand/Cart |
| 17J881 | Repair Kit, Pressure Control, ProX17, ProX19, Prox21 Stand/Cart |
| 24Y329 | Repair Kit, Switch, ProX17, ProX19, ProX21 Stand/Cart |
| 235014 | Spray Prime/Drain Valve Kit |
| 17J867 | Repair Kit, Control Board, ProX17, ProX19, ProX21 Stand/Cart |
| 17J874 | Magnum ProX Pump Assembly Replacement Kit |
| 15K092 | Pro210ES Cart Paint Sprayer Drain Tube |
| 17L281 | TUBE, SUCTION, INTAKE |
