Graco Pro210ES

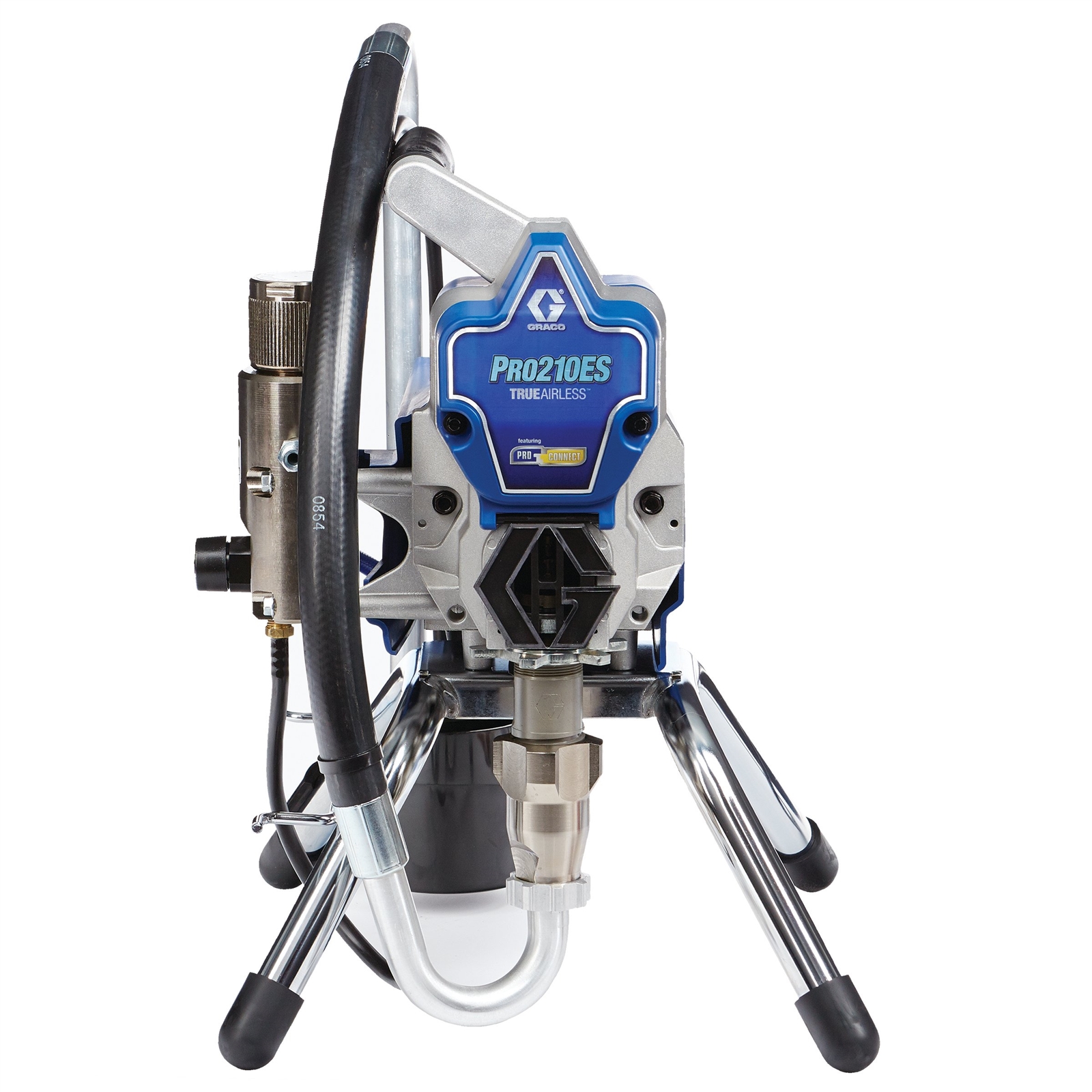

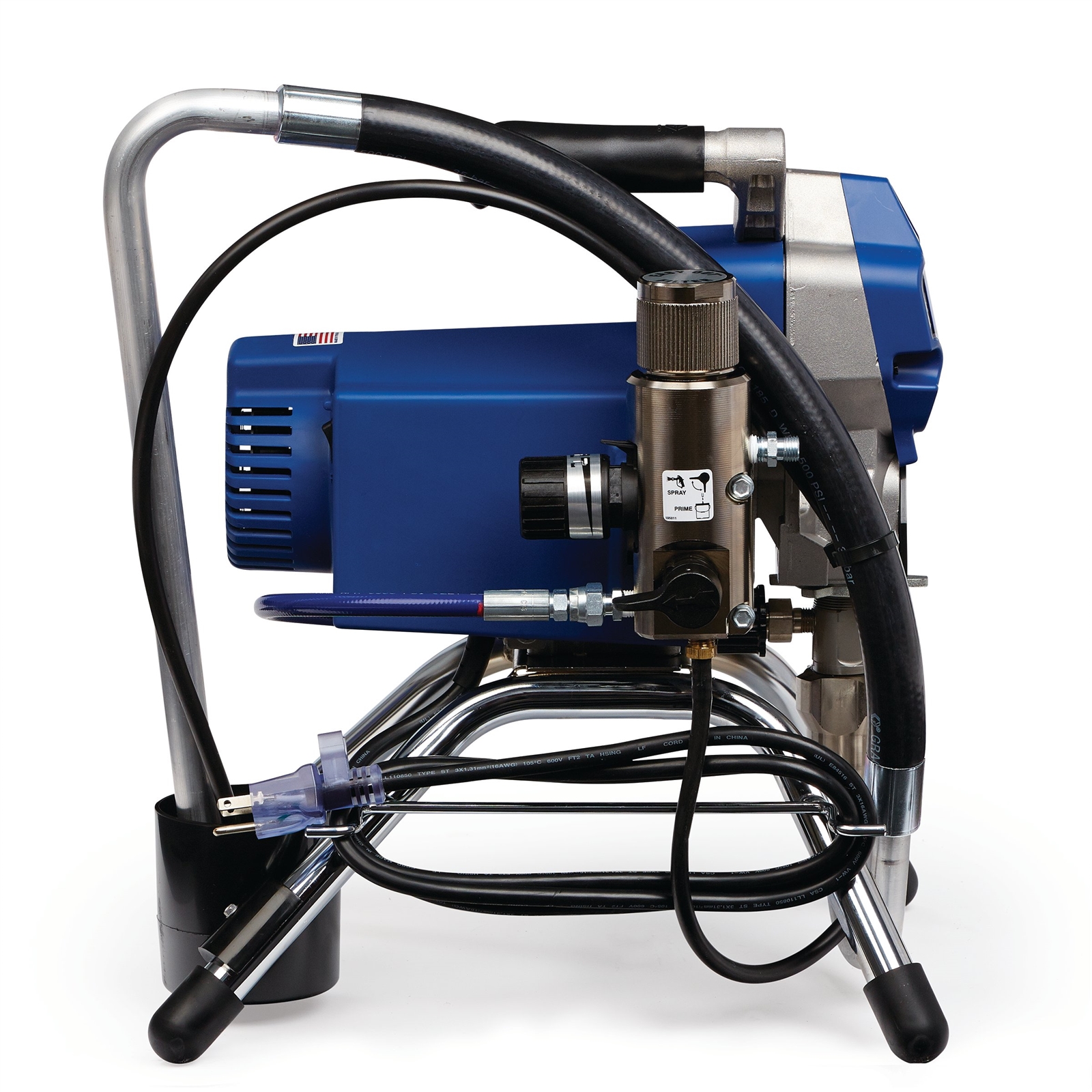

Pro210ES Electric Airless Sprayer, Stand
Part Number: 17D163
Graco Pro210ES
Pro210ES Electric Airless Sprayer, Stand
Part Number: 17D163
Painting contractors and remodelers choose the Pro210ES for tackling jobs like rental and residential properties and small commercial buildings. The proven Endurance pump delivers maximum life and supports a .021-inch tip to spray heavier materials and hot solvents such as solvent-based lacquer.
$1149.00
USD MSRP
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertBuy Online
Features
Product Brochure
Painting contractors and remodelers choose the Pro210ES for tackling jobs like rental and residential properties and small commercial buildings. The proven Endurance pump delivers maximum life and supports a .021-inch tip to spray heavier materials and hot solvents such as solvent-based lacquer.
The ProConnect System allows you to replace the pump on the job, eliminating downtime and keeping you spraying while extending the life of the sprayer. The welded, chrome-plated steel frame enhances durability on the jobsite.
- Endurance Pump - Maximum life and reparability required by professionals
- ProConnect Pump Replacement System - Quickly replace worn out pump and eliminate downtime
- DuraDC Motor - Delivers longest life and supports longer extension cords
- Lightweight Design - Offset rubber-grip handle that kicks the sprayer away from the body while carrying
- Chrome Plated Stand - Easy to clean and durable
- Flexible Suction Hose - Spray directly from 1 or 5 gallon containers with swivel hose
- SG3 Metal Spray Gun - Premium spray gun with hose swivel making it easy to manage longer hose lengths
- TrueAirless Spray Tip with SoftSpray Technology - greater control and less overspray with a wide range of coatings
- Easy Out Pump Filter - Added filtration reduces downtime and delivers a higher quality finish
- QuickAccess Inlet Valve - Allows removal of any debris to eliminate downtime
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 13 |
|---|---|
| Compatible Replacement Pump | 17C721 |
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017, 0.019, 0.021 |
| Construction | Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Engine Size (HP) | 1.0 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Stand |
| Includes | SG3 Spray Gun, TrueAirless 515 Spray Tip, Tip Guard, 1/4 in x 50 ft DuraFlex Hose, TSL 4 oz, Quick Start-Up Guide |
| Maximum Flow Rate (GPM) | 0.47 |
| Maximum Hose Length (ft) | 200 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Tip Size 1 Gun (in) | 0.021 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 3000 |
| Model | Graco |
| Motor Type | DC |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 18.5 |
| Overall Length (in) | 16 |
| Overall Width (in) | 14 |
| Phase | 1 |
| Power Rating (HP) | 1.0 |
| Power Rating (W) | 746 |
| Power Rating (kW) | 0.75 |
| Power Source | Electric |
| Pressure Control Type | Mechanical Pressure Control |
| Pump Mount Type | ProConnect |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened Steel |
| Pump Type | Endurance |
| Series | Pro210ES |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 700 |
| Weight (lb) | 34 |
| Amperage (A) | 13 |
| Compatible Replacement Pump | 17C721 |
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017, 0.019, 0.021 |
| Construction | Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Stand |
| Includes | SG3 Spray Gun, TrueAirless 515 Spray Tip, Tip Guard, 1/4 in x 50 ft DuraFlex Hose, TSL 4 oz, Quick Start-Up Guide |
| Maximum Flow Rate (L/min) | 1.8 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Tip Size 1 Gun (in) | 0.021 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 3000 |
| Model | Graco |
| Motor Type | DC |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 47 |
| Overall Height (mm) | 470 |
| Overall Length (cm) | 40.6 |
| Overall Length (mm) | 406 |
| Overall Width (cm) | 35.6 |
| Overall Width (mm) | 356 |
| Phase | 1 |
| Power Rating (W) | 746 |
| Power Rating (kW) | 0.75 |
| Power Source | Electric |
| Pressure Control Type | Mechanical Pressure Control |
| Pump Mount Type | ProConnect |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened Steel |
| Pump Type | Endurance |
| Series | Pro210ES |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 700 |
| Weight (kg) | 15 |
Product Manuals
Warranty
Sales Literature

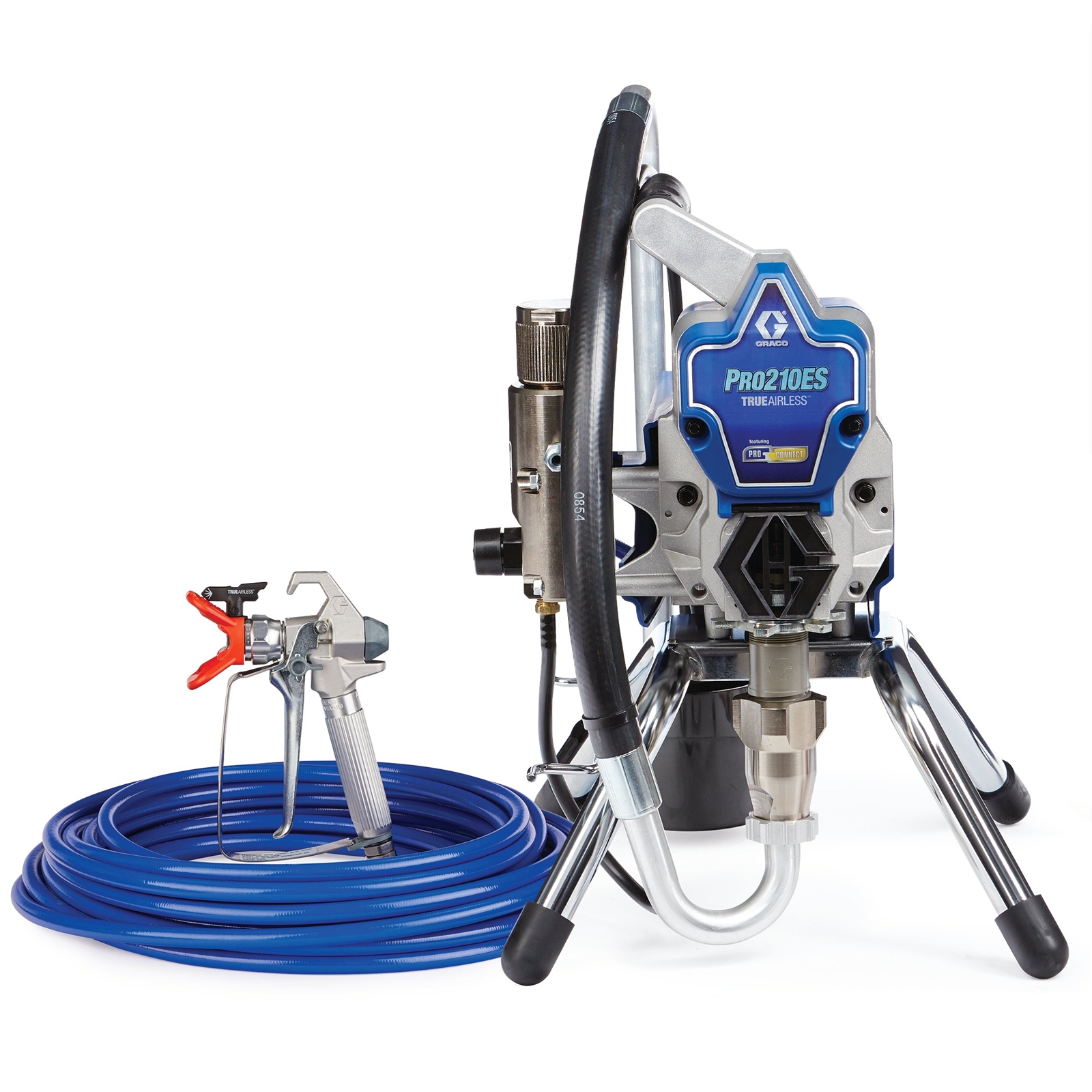

What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 243012 | SG3 Metal Spray Gun | 1 | ea |
| TRU515 | TrueAirless 515 Spray Tip | 1 | ea |
| 237859 | Spray Tip Guard | 1 | ea |
| 247340 | DuraFlex Hose 1/4 in x 50 ft | 1 | ea |
| 238049 | TSL Throat Seal Liquid, 4 oz | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 15J743 | Pro210ES Stand Replacement Cord Set |
| 243081 | Easy Out Pump Manifold Filter, 100 mesh |
| 243080 | Easy Out Pump Manifold Filter, 60 mesh |
| 119277 | Pro210ES Replacement Fuse |
| 247340 | DuraFlex Hose 1/4 in x 50 ft |
| 257407 | Stand Suction Set |
| 15E288 | INSERT, MANIFOLD |
| 24X312 | Pro210ES Pressure Control Paint Sprayer Repair Kit for Pro210ES Sprayer |
| 249052 | Control Board Paint Sprayer Kit for Pro210ES |
| 249042 | Pro Motor Brush Paint Sprayer Kit for Pro210ES |
| 249051 | 210ES Drain Tube Paint Sprayer Kit for 210ES Stand |
| 17C794 | 210ES Motor Paint Sprayer Kit for 210ES Sprayer |
| 235004 | Inlet Strainer, Nylon Cap, 3/4 in |
| 239914 | Replacement Drain Valve Kit |
| 24W830 | Hose Replacement Kit |
| 104361 | Pro210ES Packing O-ring |
