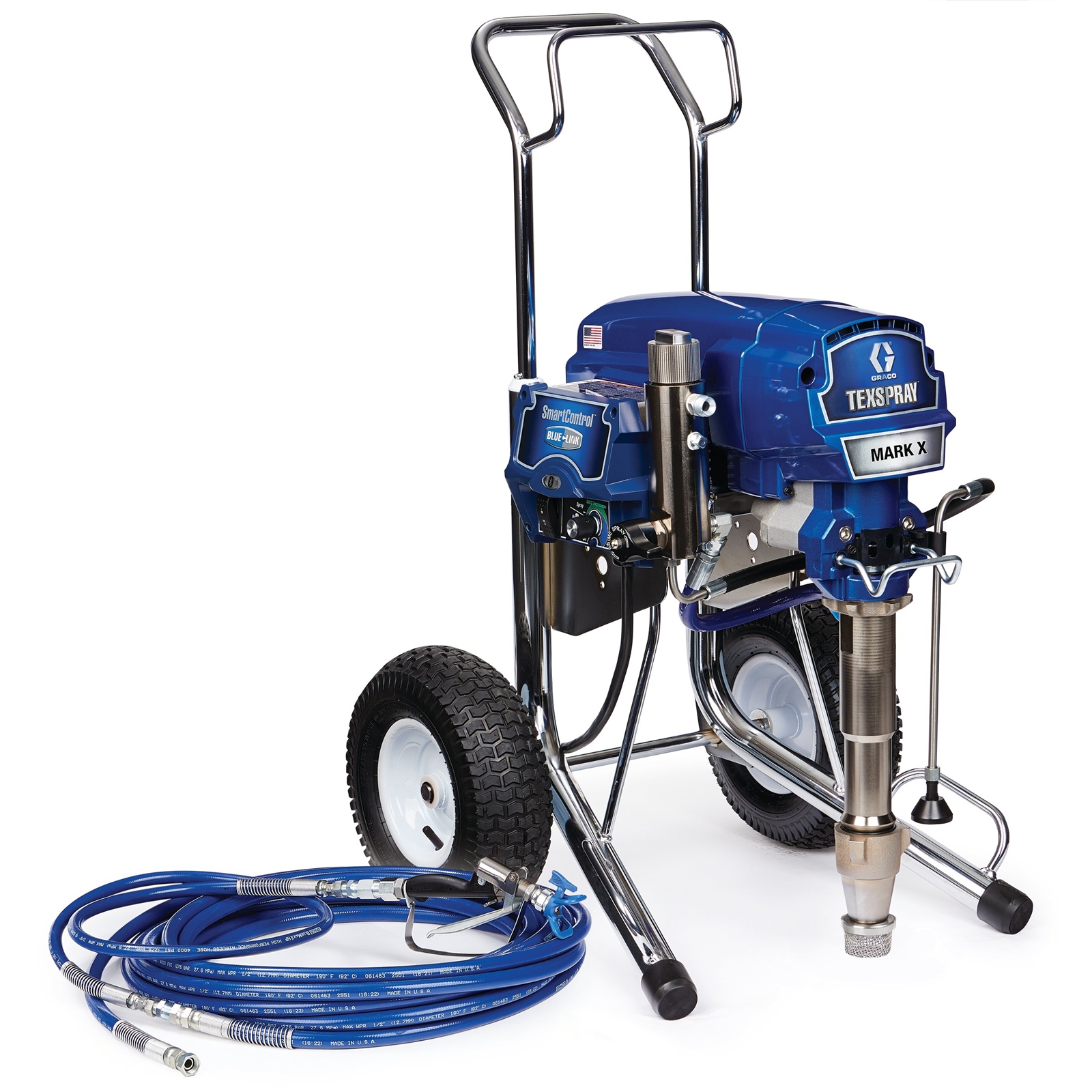

Mark X HD 3-in-1 Standard Series Electric Airless Sprayer
Part Number: 17E608
Mark HD X
Mark X HD 3-in-1 Standard Series Electric Airless Sprayer
Part Number: 17E608
THE most powerful electric airless texture sprayer. The Mark X HD 240 volt is the sprayer of choice for serious professional contractors with nearly double the output of the Mark V HD. It easily sprays skim coat in a Level 5 finish, multiple texture finishes and the all primers and paints.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
THE most powerful electric airless texture sprayer. The Mark X HD 240 volt is the sprayer of choice for serious professional contractors with nearly double the output of the Mark V HD. It easily sprays skim coat in a Level 5 finish, multiple texture finishes and the all primers and paints.
Everyday Reliability. Mark HD Standard Series electric airless texture sprayers provide unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.
- Endurance Chromex Piston Pump
- The most reliable pump
- Lasts 2X Longer than the next leading brand
- Long life ceramic and stainless steel balls included for maximum versatility
- Faster cleaning with the QuikAccess intake foot valve
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- SmartControl 4.0 with ProGuard Protection System
- Precision pressure control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- Prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if the material supply is too low
- Worry-Free MaxPower Motor
- Get more work done
- Proven performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- Use longer cords, regardless of voltage fluctuations
- Precision Advantage Drive
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
- WatchDog Pump Protection System
- Prevents dry pumping damage
- Automatically shuts pump down when if the material supply is too low
- Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
- Heavy-Duty Prime Valve
- Maintenance-free high-pressure dumping capability
- Rugged, Durable Cart Design
- Rugged and easy-to-move
- Withstands tough jobsite conditions while absorbing impacts and vibrations
- Easy hose storage with integrated hose wrap and telescoping handle
- Easy loading with built-in lift handles
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 16 |
|---|---|
| Compatible Replacement Pump | 17H831 |
| Construction | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass |
| Convertible | Non-Convertible |
| Engine Size (HP) | 4 |
| Features | Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Includes | Inline Heavy-Duty Texture Gun, RAC X LTX 531 Spray Tip, RAC X LTX 541 Spray Tip, RAC X Guard, 1/2 in x 50 ft BlueMax II Airless Hose, 3/8 in x 11 ft 10 in Airless Whip Hose |
| Maximum Flow Rate (GPM) | 2.1 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.045 |
| Maximum Tip Size 1 Gun (in) | 0.045 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Mark HD |
| Motor Type | MaxPower |
| Number of Guns | 1 |
| Overall Height (in) | 40.1 |
| Overall Length (in) | 26 |
| Overall Width (in) | 24 |
| Power Rating (HP) | 4.0 |
| Power Rating (W) | 2983 |
| Power Rating (kW) | 2.98 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product Series | Standard |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Stainless Steel |
| Series | X |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Volume Per Cycle (cycles/gal) | 70 |
| Weight (lb) | 154 |
| Amperage (A) | 16 |
| Compatible Replacement Pump | 17H831 |
| Construction | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass |
| Convertible | Non-Convertible |
| Features | Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Size (mm) | 12.7 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Includes | Inline Heavy-Duty Texture Gun, RAC X LTX 531 Spray Tip, RAC X LTX 541 Spray Tip, RAC X Guard, 1/2 in x 50 ft BlueMax II Airless Hose, 3/8 in x 11 ft 10 in Airless Whip Hose |
| Maximum Flow Rate (L/min) | 8.0 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.045 |
| Maximum Tip Size 1 Gun (in) | 0.045 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Mark HD |
| Motor Type | MaxPower |
| Number of Guns | 1 |
| Overall Height (cm) | 102 |
| Overall Height (mm) | 1020 |
| Overall Length (cm) | 66 |
| Overall Length (mm) | 660 |
| Overall Width (cm) | 61 |
| Overall Width (mm) | 610 |
| Power Rating (W) | 2983 |
| Power Rating (kW) | 2.98 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product Series | Standard |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Stainless Steel |
| Series | X |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Volume Per Cycle (cycles/gal) | 70 |
| Weight (kg) | 70 |
Product Manuals
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 245820 | Inline Heavy-Duty Texture Airless Spray Gun, 4 Finger Trigger | 1 | ea |
| LTX531 | RAC X SwitchTip, 531 | 1 | ea |
| LTX541 | RAC X SwitchTip, 541 | 1 | ea |
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 278499 | HOSE, CPLD, 1/2 IN X 50 FT | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 278499 | HOSE, CPLD, 1/2 IN X 50 FT |
| 245103 | Q KIT REPAIR, DRAIN VALVE |
| 258909 | KIT, REPAIR, MOTOR |
| 244240 | KIT, REPAIR, RETURN LINE, HI |
| 189920 | Inlet Strainer, SST Cap Single Screen, 1 in |
| 243222 | Pressure Control Transducer Repair Kit |
| 16Y496 | KIT,DISPLAY, GMAX, PREMIUM |
| 24V029 | KIT,REPAIR,HOSE,COUPLED, 1/2" |
| 117285 | PACKING, O-RING |
| 15D527 | SWITCH, ROCKER, 240V |
| 16T483 | PLUG, HOLE, SWITCH |
| 245820 | Inline Heavy-Duty Texture Airless Spray Gun, 4 Finger Trigger |
