Endurance Chromex

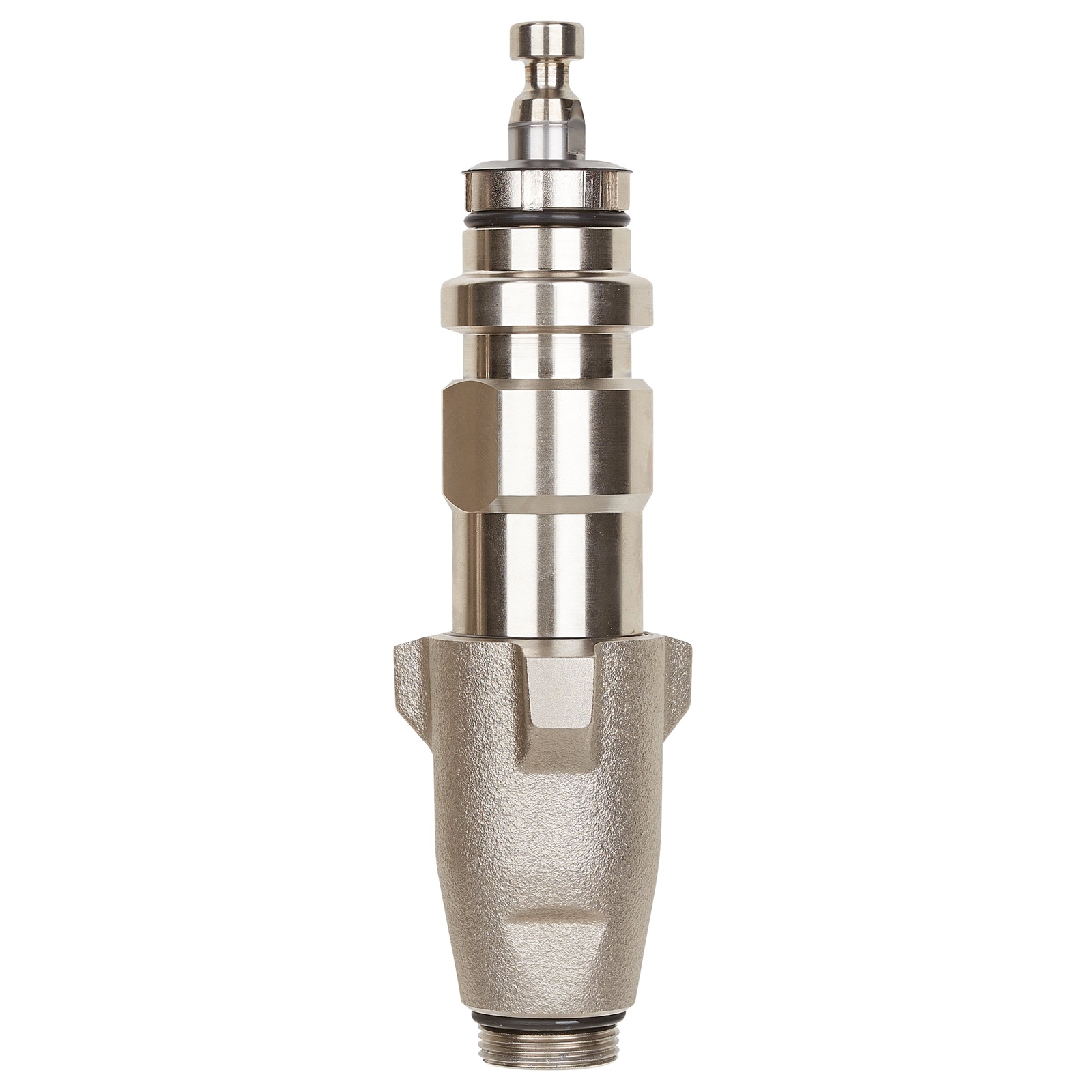

Endurance Chromex Piston Pump
Part Number: 16X414
Endurance Chromex
Endurance Chromex Piston Pump
Part Number: 16X414
Genuine Graco Endurance Pumps lead the industry in durability and ease of installation. Keep a spare on hand to minimize downtime in the field.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Genuine Graco Endurance Pumps lead the industry in durability and ease of installation. Keep a spare on hand to minimize downtime in the field.
Replacement pump for GMAX II 3900 Standard Series Lo-Boy sprayers model year 2014 and newer.
- Lasts 2X longer than the next leading brand
- Chromex rod and hardened stainless steel cylinder
- Long Life V-Max Blue Packings
- Faster cleaning with the QuikAccess intake valve
- Repack the pump in minutes with the new QuikPak Cartridge System
Specifications & Documents
Technical Specifications
Convert to Metric| Fluid Inlet Size (in) | 1 5/16 |
|---|---|
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | UN |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| For Use With | GMAX II 3900 Standard Series Lo-Boy (2014 and newer) |
| Maximum Working Pressure (psi) | 3300 |
| Model | Endurance |
| Series | Chromex |
| Type | Replacement Pump |
| Fluid Inlet Size (in) | 1 5/16 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | UN |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| For Use With | GMAX II 3900 Standard Series Lo-Boy (2014 and newer) |
| Maximum Working Pressure (psi) | 3300 |
| Model | Endurance |
| Series | Chromex |
| Type | Replacement Pump |
Product Manuals
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
Repair Parts
| Part No. | Description |
|---|---|
| 105444 | BALL (.31250) |
| 105445 | BALL (.5000) |
| 192624 | GB GUIDE, BALL |
| 239922 | Q KIT, REPAIR |
| 248212 | Pump Packing Repair Kit |
| 248209 | Stainless Steel Cylinder Sleeve |
| 287877 | Piston Valve Repair Kit |
| 16X450 | Q KIT,REPAIR,CYL,3900 PCII |
| 16X434 | Q KIT,REPAIR,ROD,3900 PCII |
| 193046 | NUT, PACKING |
