GH 833ES

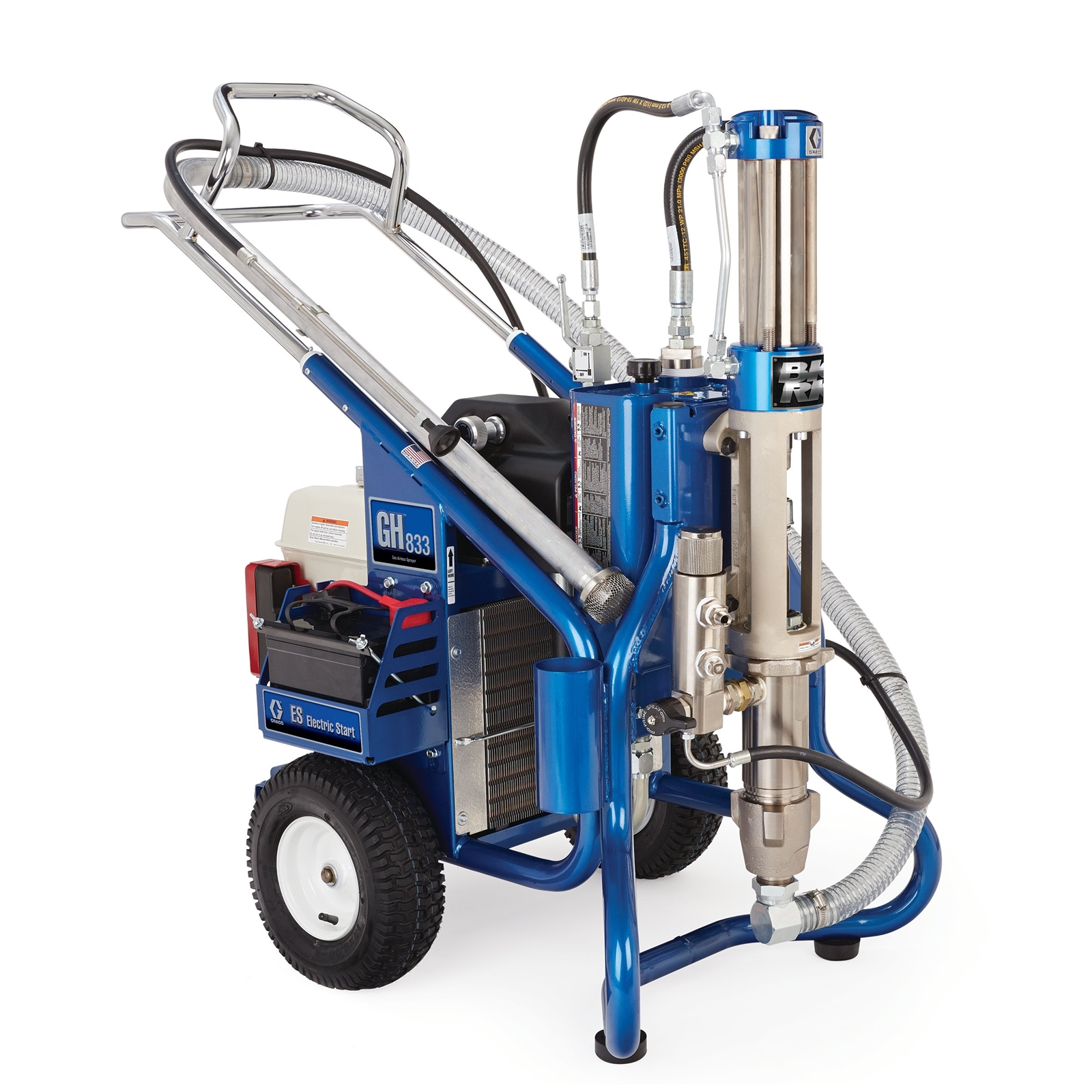

GH 833ES Big Rig Gas Hydraulic Sprayer, Bare
Part Number: 16U287
GH 833ES
GH 833ES Big Rig Gas Hydraulic Sprayer, Bare
Part Number: 16U287
The GH 833ES is the preferred choice for high production professional contractors who spray the wide range of materials. This jobsite-proven workhorse is the answer when you demand ruggedness, performance and value.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The GH 833ES is the preferred choice for high production professional contractors who spray the wide range of materials. This jobsite-proven workhorse is the answer when you demand ruggedness, performance and value.
- Honda® Engine with Electric Start
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Back-up Pull Start
- High-capacity, 12 Volt 18 Amp Charging System
- Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Heavy-Duty Graco Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
- MaxLife Endurance Pump
- Proven design and performance
- Only 16 cycles per gallon (4.2 cycles per liter)
- Exclusive MaxLife rod and sleeve delivers unmatched durability and life – Graco’s best
- Exclusive QuikChange Pump System and QuikAccess Intake Valve eliminates downtime
- Flow-Through Filter System
- Inside/out design eliminates clogged filters
- Eliminates tip clogs
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing |
|---|---|
| Compatible Replacement Pump | 287834 |
| Control Type | N/A |
| Engine Brand | Honda |
| Engine Size (HP) | 13 |
| Fluid Inlet Size (in) | 1-1/2 to 11-1/2 |
| Fluid Inlet Thread Type | MNPT |
| Fluid Outlet Size (in) | 1 to 11-1/2 |
| Fluid Outlet Thread Type | FNPT |
| Frame Configuration | Cart |
| Material Application | Paints, Primers |
| Maximum Flow Rate (GPM) | 4.0 |
| Maximum Hose Length (ft) | 50 |
| Maximum Tip Size (in) | 0.065 |
| Maximum Tip Size 1 Gun (in) | 0.065 |
| Maximum Tip Size 2 Guns (in) | 0.046 |
| Maximum Tip Size 3 Guns (in) | 0.037 |
| Maximum Tip Size 4 Guns (in) | 0.032 |
| Maximum Tip Size 5 Guns (in) | 0.029 |
| Maximum Tip Size 6 Guns (in) | 0.026 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Model | GH |
| Motor Type | Hydraulic Motor |
| Number of Guns | 6 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Power Rating (HP) | 13 |
| Power Rating (W) | 9694 |
| Power Rating (kW) | 9.7 |
| Power Source | Gas Hydraulic |
| Pressure Control Type | Pressure Control Knob |
| Product Type | Single Leg |
| Pump Mount Type | QuikChange |
| Pump Rod Type | MaxLife |
| Pump Type | Endurance |
| Series | 833ES |
| Type | Airless Sprayer |
| Weight (lb) | 398 |
| Compatible Material | Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing |
| Compatible Replacement Pump | 287834 |
| Control Type | N/A |
| Engine Brand | Honda |
| Fluid Inlet Size (in) | 1-1/2 to 11-1/2 |
| Fluid Inlet Thread Type | MNPT |
| Fluid Outlet Size (in) | 1 to 11-1/2 |
| Fluid Outlet Thread Type | FNPT |
| Frame Configuration | Cart |
| Material Application | Paints, Primers |
| Maximum Flow Rate (L/min) | 15.1 |
| Maximum Hose Length (m) | 15 |
| Maximum Tip Size (in) | 0.065 |
| Maximum Tip Size 1 Gun (in) | 0.065 |
| Maximum Tip Size 2 Guns (in) | 0.046 |
| Maximum Tip Size 3 Guns (in) | 0.037 |
| Maximum Tip Size 4 Guns (in) | 0.032 |
| Maximum Tip Size 5 Guns (in) | 0.029 |
| Maximum Tip Size 6 Guns (in) | 0.026 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (bar) | 275.8 |
| Maximum Working Pressure (kPa) | 27580 |
| Maximum Working Pressure (psi) | 4000 |
| Model | GH |
| Motor Type | Hydraulic Motor |
| Number of Guns | 6 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Power Rating (W) | 9694 |
| Power Rating (cc) | 390 |
| Power Rating (kW) | 9.7 |
| Power Source | Gas Hydraulic |
| Pressure Control Type | Pressure Control Knob |
| Product Type | Single Leg |
| Pump Mount Type | QuikChange |
| Pump Rod Type | MaxLife |
| Pump Type | Endurance |
| Series | 833ES |
| Type | Airless Sprayer |
| Weight (kg) | 181 |
Product Manuals
Warranty
Sales Literature
Repair Parts
| Part No. | Description |
|---|---|
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 245103 | Q KIT REPAIR, DRAIN VALVE |
| 24Y566 | KIT, REPAIR, HYDRAULIC MOTOR |
| 287870 | KIT, REPAIR, PACKING, HYDR. |
| 237840 | Inlet Strainer, SST Cap, 1 1/4 in |
| 287916 | GB KIT, SUCT. HOSE-NON SLVT RES |
| 117285 | PACKING, O-RING |
| 15C766 | TUBE, DIFFUSION |
