QUANTM
Electric Diaphragm Pumps
A massive leap forward
QUANTM PUMPS SAVE UP TO 80% ON ENERGY COSTS
ENERGY COST SAVINGS
Conserve energy and reduce costs to increase your bottom-line savings
NEXT-LEVEL PLANT PRODUCTIVITY
Boost automation by linking QUANTM to your plant software for pump monitoring and enhanced controllability
PLUG-AND-PLAY
Functions like a classic pneumatic pump, fits existing fluid transfer systems but runs on electricity
SUSTAINABILITY
Mitigate the effects of climate change by using significantly less energy and reducing product waste
WORKER SAFETY
Effective nose reduction, combined with no muffler, eliminates the risk of harmful material being airborne
SIMPLIFIED MAINTENANCE
The quieter, lightweight pump is easier to install and service compared to competitive pump technologies.
Sustainability Meets
Profitability
QUANTM Electric Pumps: The Future of Fluid Handling
QUANTM is a revolutionary electric double diaphragm (EODD) pump that reduces operational costs and energy consumption by up to 80%.
Its innovative motor design eliminates the need for compressed air, delivering quieter operation while removing the muffler to minimize the risk of harmful leaks. This ensures a safer workplace for employees.
QUANTM pumps deliver the same benefits as pneumatic double diaphragm pumps coupled with advanced features such as I/O for easy integration into existing control systems.
QUANTM is the greener, safer and more cost-effective choice.
Quantm features
Efficient electric drive
- Up to 80% less energy consumption
- Requires NO air
- 40db sound level for operation flexibility
- NO freezing
Proven AODD benefits
- Stalls under pressure
- Self-priming
- Dry running
- Handles solids and abrasive materials
Integrated controls
- Control flow and pressure at the pump
- I/O for remote operation
Plug-and-play
- Factory wired for quick install
- 120V and 240V options
- Standard, C1D1 and ATEX models available
Automated priming
QUANTM pump feature comparison
Designed for safety, reliability, control and efficiency, the QUANTM electric diaphragm pump excels in a lot of aspects. Discover how QUANTM outshines competing technologies
| Features | QUANTM Electric Diaphragm Pumps | Other Electric Diaphragm Pumps | Air-Operated Diaphragm Pumps | Peristaltic Pumps | Progressive Cavity Pumps | Rotary Lobe Pumps |
|---|---|---|---|---|---|---|
| Stall Under Pressure | ✔ | ✘ | ||||
| Runs Dry | ✔ | ✘ | ✘ | ✘ | ||
| Self Priming | ✔ | ✘ | ✘ | ✘ | ✘ | |
| Energy Efficient Electric Drive | ✔ | ✘ | ✘ | ✘ | ✘ | |
| No Rotational Shaft Seal | ✔ | ✘ | ✘ | ✘ | ||
| Integrated Controls | ✔ | |||||
| Integrated Automation Capabilities | ✔ |

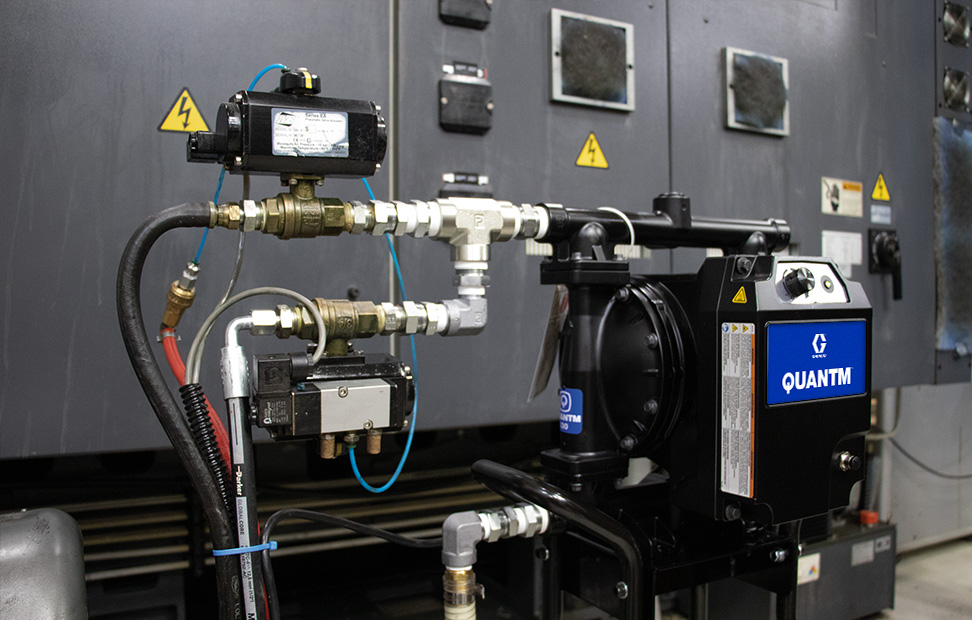

An electric solution for many industrial and hygienic applications
We designed QUANTM to be quieter, lighter, more reliable and easier for anyone in your team to operate and maintain. QUANTM pumps come in several configurations offering a solution for most fluid applications.
| QUANTM Industrial Diaphragm Pumps |  |
 |
 |
 |
| Model | i30 | i80 | i120 | i120 LP |
| Maximum Flow Rate | 115 lpm (30 GPM) | 300 lpm (80 GPM) | 450 lpm (120 GPM) | 450 lpm (120 GPM) |
| Maximum Fluid Pressure | 7 bar (100 psi) | 7 bar (100 psi) | 4.2 bar (60 psi) | 4.2 bar (60 psi) |
| Fluid Passage Size | 1 inch | 1 1/2 inch | 2 inch | 2 inch |
| Maximum Size Pumpable Solids | 0.125 inch | 0.19 inch | 0.25 inch | 1.8 inch |
| Fluid Section Materials | 0.125 inch | 0.19 inch | 0.25 inch | 1.8 inch |
| QUANTM Hygienic Diaphragm Pumps |  |
|
|
|---|---|---|---|
| Model | h30 | h80 | h120 |
| Maximum Flow Rate | 115 lpm (30 GPM) | 300 lpm (80 GPM) | 450 lpm (120 GPM) |
| Maximum Fluid Pressure | 7 bar (100 psi) | 7 bar (100 psi) | 4.2 bar (60 psi) |
| Port Size | 1 inch | 1 1/2 inch | 2 inch |
| Surface Finish | Food Grade High Sanitary Pharmaceutical |
Food Grade High Sanitary Pharmaceutical 3A-Certified Flapper |
Food Grade High Sanitary Pharmaceutical 3A-Certified Flapper |
BETTER ROI WITH NO TRADEOFFS
Calculate your savings
Pumps are key to manufacturing and offer an easy way to boost sustainability and efficiency. Switching from AODD to QUANTM electric pumps cuts energy use by eliminating compressed air.
Enter your operating parameters to see your potential savings with QUANTM electric pumps.
