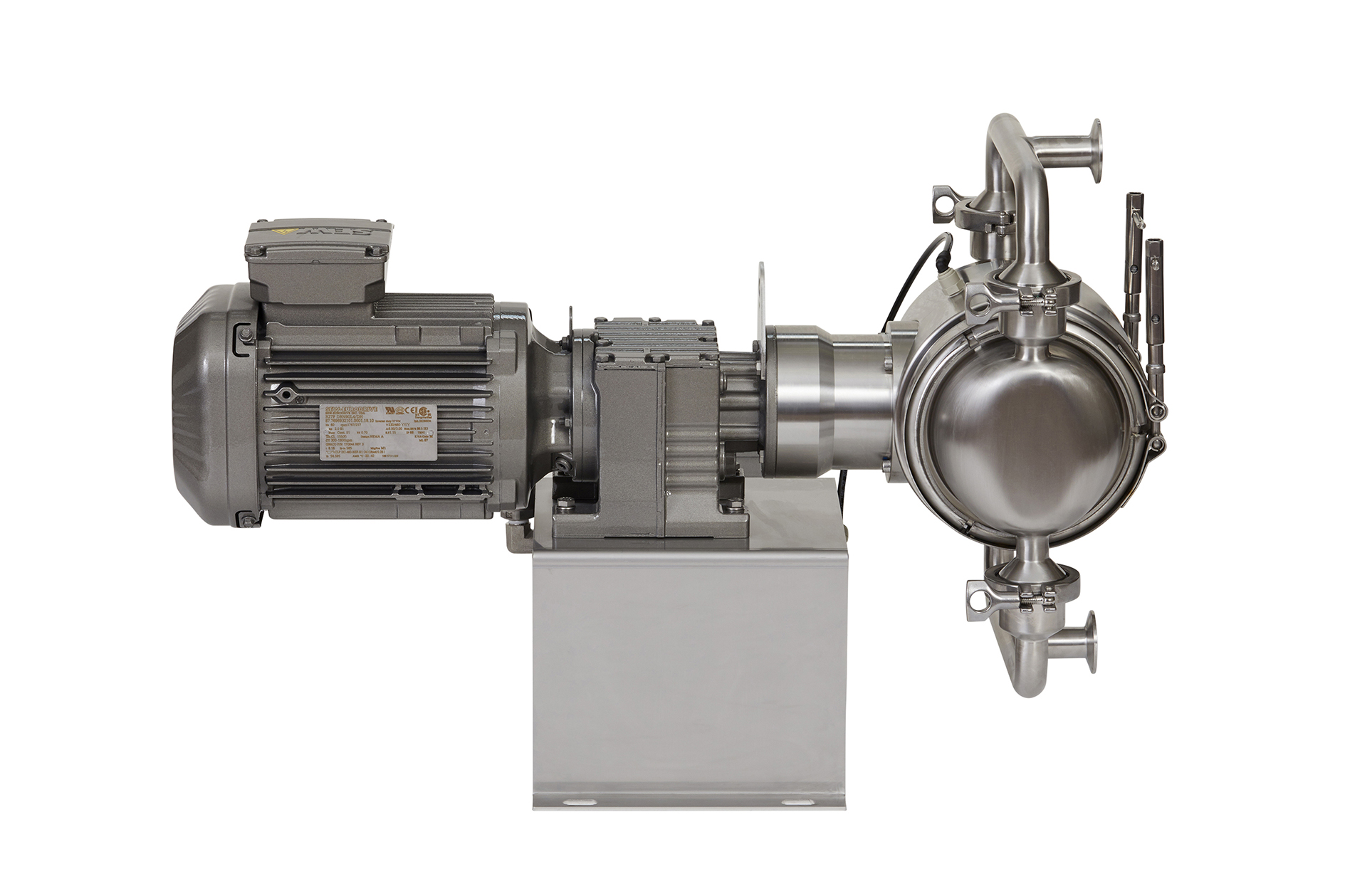

Bombas de diafragma operadas eléctricamente de alto saneamiento SaniForce

Graco’s SaniForce High Sanitation Electric Operated Double Diaphragm pumps are designed to meet requirements for the most rigous food, beverage, personal care, and pharmaceutical transfer applications. Providing the same great self-priming, stalling, seal-less design coveted by air operated pumps in an electric package that can solve many of the problems associated with rotary positive displacement pumps. Graco's patened air-charged center all but eliminates pulsation on the fluid outlet of the pump providing a smooth steady flow idea for in process appplications, filling systems, and sanitary/hygeinic applicator applications.

Encuentre un distribuidor Solicite una cotización

High Sanitation, FDA Approved

Electric drive reduces energy consumption up to 5 times compared to traditional air operated diaphragm pumps and provides additional pump control
Seal-less design removes common issues associated with rotary shaft seals and handles abrasive material
Patented air charge reduces pulsation for smooth flow
Air charge provides ability to stall pump under pressure increasing system safety and removing requirement for circulation loops
Overmolded diaphragm plates with PTFE on the fluid side and EPDM on the air side do not contain crevices for harboring bacteria (Bolt-through diaphragm options are also available)
Tri-clamp connections allow accelerated cleaning and minimal downtime
Flow rates up to 150 gpm (568 lpm) and pressure up to 100 psi (6.9 bar)

Accionamiento eléctrico con eficiencia energética

Reduce el consumo de energía hasta 5 veces en comparación con la bomba de diafragma de operación neumática tradicional.
Proporciona control de bomba adicional

Diafragmas de sobremoldeado PTFE/EPDM (están disponibles opciones de atornillar)

Mejore la resistencia al desgaste y la vida útil del diafragma sin exponer la placa de diafragma del lado del fluido
Sin hendiduras que alberguen bacterias
Mayor vida útil del diafragma en aplicaciones abrasivas que necesiten PTFE
PTFE del lado del fluido y EPDM del lado del aire
