Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump and 60 lb Reservoir, Follower Plate, Pressure and Level Reporting, Auto-Fill Shut Off
Part Number: CD3364

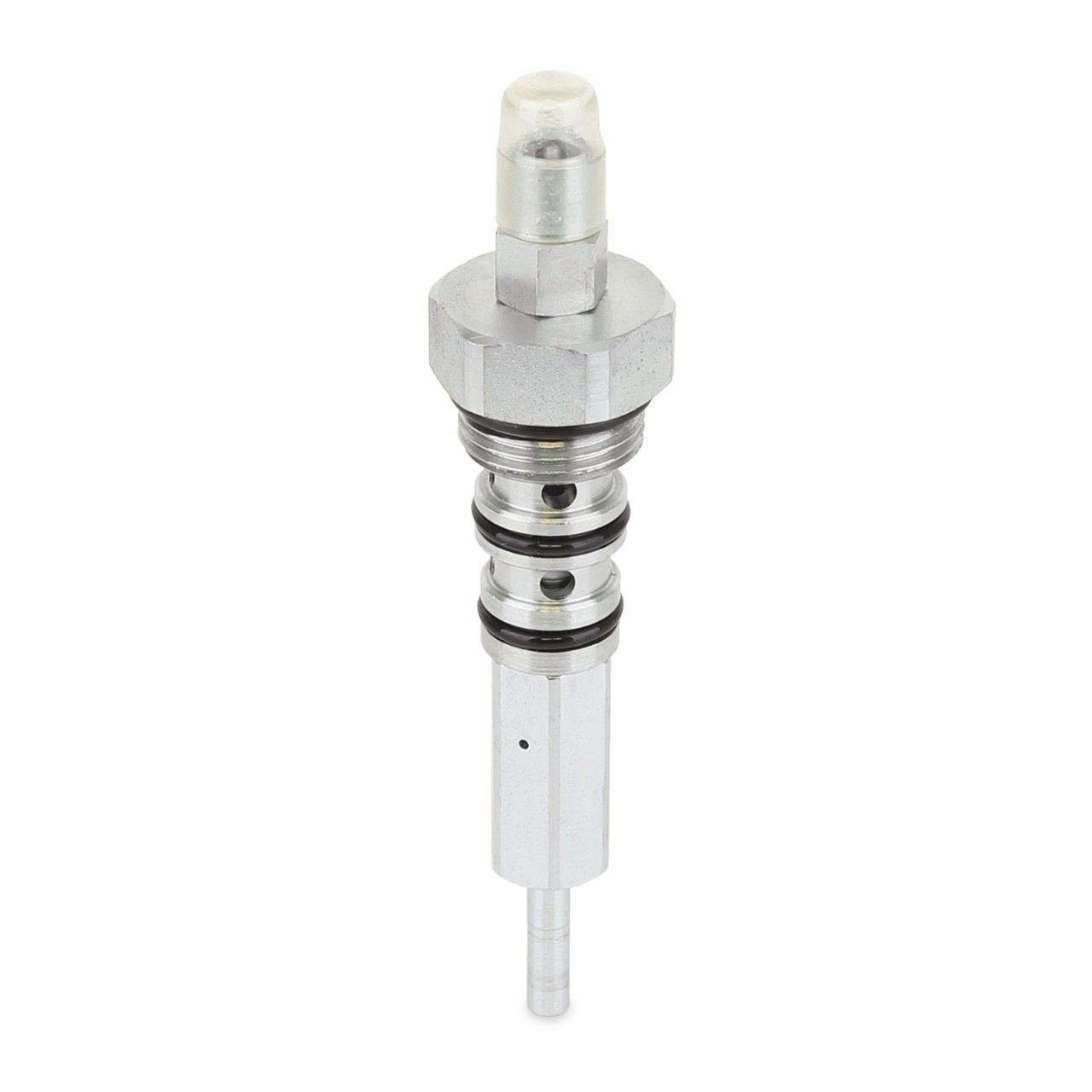

Image is for illustrative purposes only.

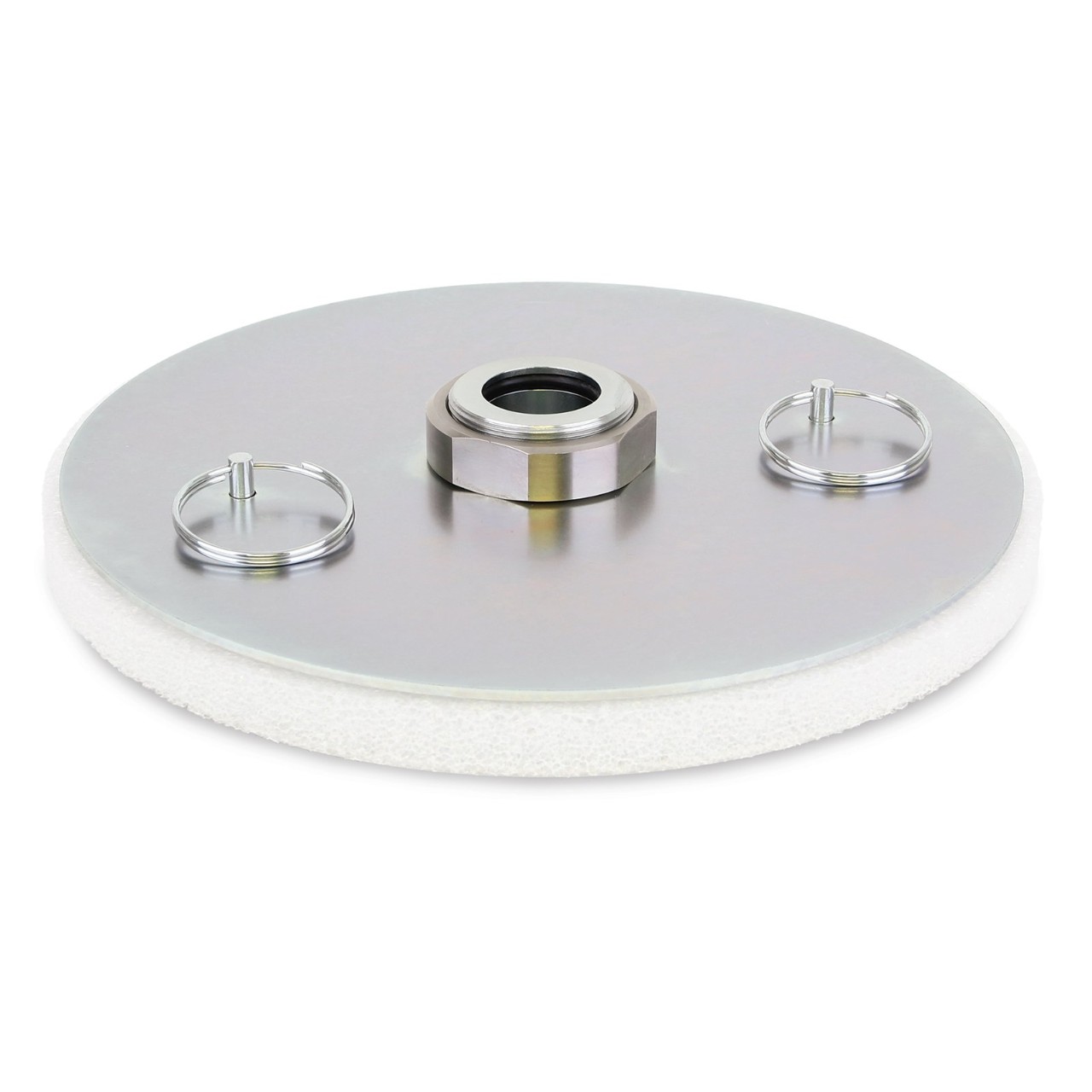

Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump and 60 lb Reservoir, Follower Plate, Pressure and Level Reporting, Auto-Fill Shut Off
Part Number: CD3364
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time.
- Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills.
Specifications & Documents
Technical Specifications
Convert to Metric| Application | In-Plant Machinery, Off-Road Equipment |
|---|---|
| Approvals | CE;EAC;RCM |
| Compatible Material | Grease |
| Compatible Metering Device | Single Line Parallel |
| Component Technology | Brushless Electric Motor;Shovel-loading pump tube |
| Construction | Steel, Buna-N, Acetal, Lubrithane, Polyurethane, Brass, Polyethylene |
| Fluid Outlet Size (in) | 3/8, 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| IP Rating | IP69K |
| Input Voltage (V dc) | 24 |
| Level Reporting Sensor Maximum Signal (VDC) | 10 |
| Level Reporting Sensor Minimum Signal (VDC) | 0 |
| Low Level Carry Current (A) | 0.02 |
| Lower Type | Integrated Shovel Loading |
| Maximum Continuous Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (strokes/min) | 64 |
| Maximum Fill Inlet Pressure (psi) | 500 |
| Maximum Flow Rate (ci/min) | 4.5 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum Intermittent Cycle Rate (CPM) | 64 |
| Maximum NLGI Grade | 2 |
| Maximum Operating Temperature (°F) | 65 |
| Maximum Voltage (V dc) | 30 |
| Maximum Working Pressure (MPa) | 24.1 |
| Maximum Working Pressure (psi) | 3500 |
| Maximum cST Grade (cST) | NLGI #2 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Voltage (V dc) | 18 |
| Motor Type | Brushless DC |
| Number of Outlets | 2 |
| Number of Pump Elements | 1 |
| Overall Depth (in) | 15.6 |
| Overall Height (in) | 28.4 |
| Overall Width (in) | 15 |
| Package Options | Pump with Reservoir |
| Power Connection Type | Deutsch DT04-12PB Housing |
| Power Rating (HP) | 0.25 |
| Power Type | Electric |
| Pressure Reporting Maximum Signal (VDC) | 5 |
| Pressure Reporting Minimum Signal (VDC) | 1 |
| Pressure Reporting Transducer Full Range (psi) | 5000 |
| Reservoir Material | Steel |
| Reservoir Size (L) | 30 |
| Reservoir Size (lb) | 60 |
| Seal Material | Buna-N |
| Sound Pressure Level (dB(A)) | 70 |
| Throat Seal Type | Hythane 181 |
| Type | Compact Electric Piston Pump |
| Vent Valve Maximum Operating Current (A) | 1 |
| Vent Valve Maximum Operating Power (W) | 25 |
| Vent Valve Output Voltage (VDC) | 24 |
| Voltage | 24 |
| Voltage (V) | 24 |
| Weight (lb) | 83 |
| Application | In-Plant Machinery, Off-Road Equipment |
| Approvals | CE;EAC;RCM |
| Compatible Material | Grease |
| Compatible Metering Device | Single Line Parallel |
| Component Technology | Brushless Electric Motor;Shovel-loading pump tube |
| Construction | Steel, Buna-N, Acetal, Lubrithane, Polyurethane, Brass, Polyethylene |
| Fluid Outlet Size (in) | 3/8, 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| IP Rating | IP69K |
| Input Voltage (V dc) | 24 |
| Level Reporting Sensor Maximum Signal (VDC) | 10 |
| Level Reporting Sensor Minimum Signal (VDC) | 0 |
| Low Level Carry Current (A) | 0.02 |
| Lower Type | Integrated Shovel Loading |
| Maximum Continuous Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (strokes/min) | 64 |
| Maximum Fill Inlet Pressure (psi) | 500 |
| Maximum Flow Rate (L/min) | 0.074 |
| Maximum Fluid Output Pressure (bar) | 241 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum Intermittent Cycle Rate (CPM) | 64 |
| Maximum NLGI Grade | 2 |
| Maximum Operating Temperature (°C) | 149 |
| Maximum Voltage (V dc) | 30 |
| Maximum Working Pressure (MPa) | 24.1 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Maximum cST Grade (cST) | NLGI #2 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Voltage (V dc) | 18 |
| Motor Type | Brushless DC |
| Number of Outlets | 2 |
| Number of Pump Elements | 1 |
| Output Per Cycle (cm³) | 1 |
| Overall Depth (cm) | 39.62 |
| Overall Depth (mm) | 396.2 |
| Overall Height (cm) | 72.14 |
| Overall Height (mm) | 721.4 |
| Overall Width (cm) | 38.1 |
| Overall Width (mm) | 381 |
| Package Options | Pump with Reservoir |
| Power Connection Type | Deutsch DT04-12PB Housing |
| Power Type | Electric |
| Pressure Reporting Maximum Signal (VDC) | 5 |
| Pressure Reporting Minimum Signal (VDC) | 1 |
| Pressure Reporting Transducer Full Range (psi) | 5000 |
| Reservoir Material | Steel |
| Reservoir Size (L) | 30 |
| Seal Material | Buna-N |
| Sound Pressure Level (dB(A)) | 70 |
| Throat Seal Type | Hythane 181 |
| Type | Compact Electric Piston Pump |
| Vent Valve Maximum Operating Current (A) | 1 |
| Vent Valve Maximum Operating Power (W) | 25 |
| Vent Valve Output Voltage (VDC) | 24 |
| Voltage | 24 |
| Voltage (V) | 24 |
| Weight (kg) | 37.6 |
