Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 12 L Reservoir, Follower Plate, Pressure and Low-Level Switch
Part Number: CD1211

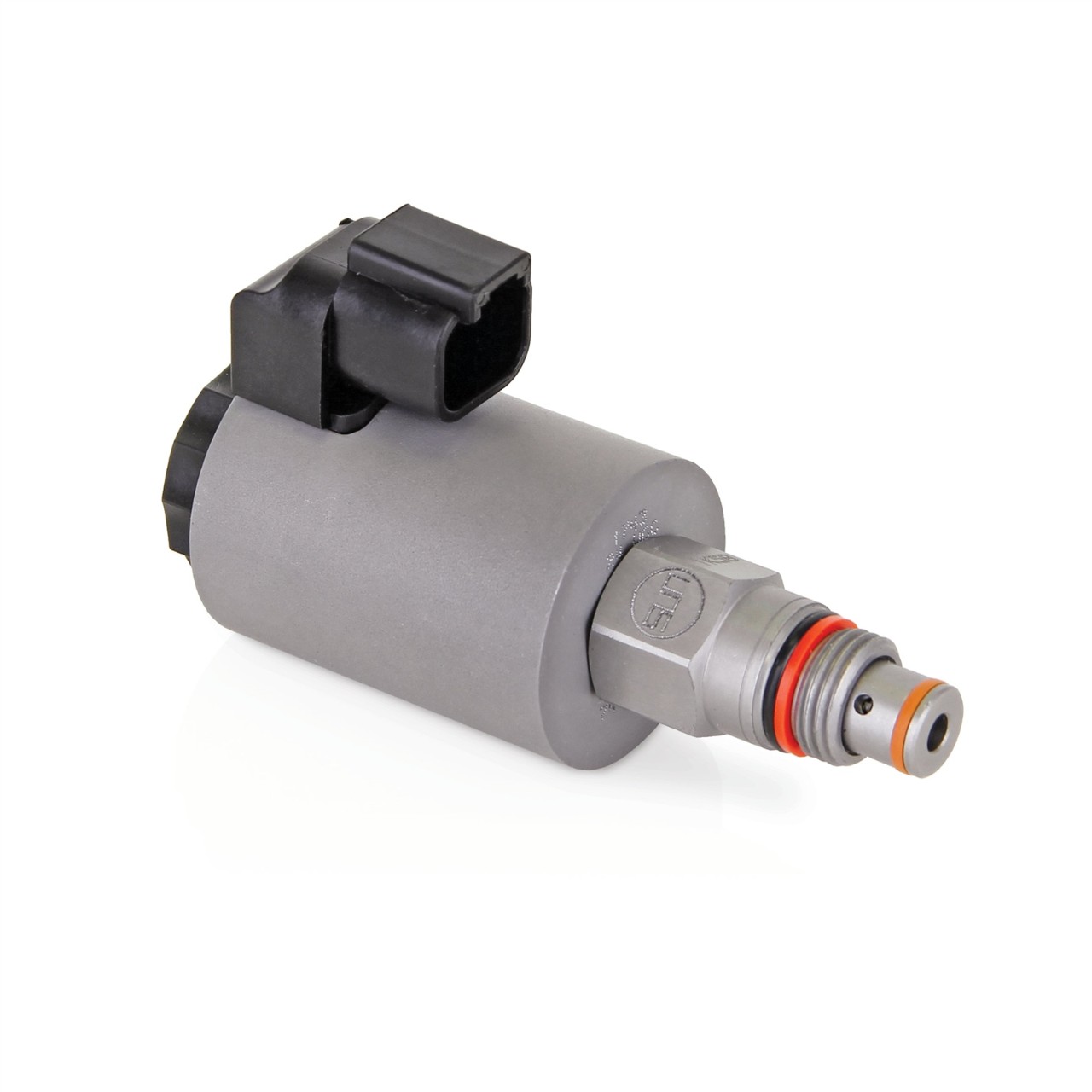

Image is for illustrative purposes only.

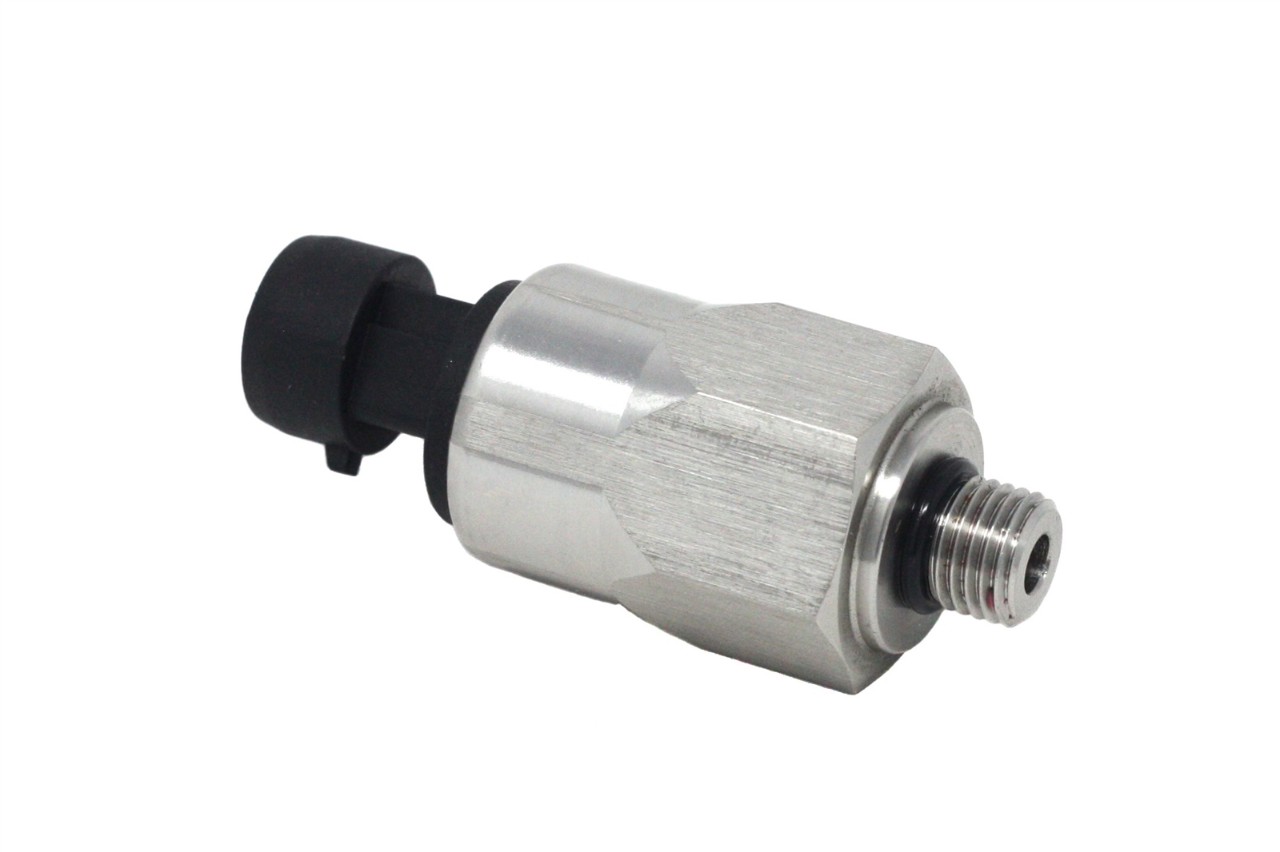

Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 12 L Reservoir, Follower Plate, Pressure and Low-Level Switch
Part Number: CD1211
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
Specifications & Documents
Technical Specifications
Convert to Metric| Application | In-Plant Machinery, Off-Road Equipment |
|---|---|
| Approvals | CE;RCM |
| Compatible Material | Grease |
| Compatible Metering Device | Single Line Parallel |
| Component Technology | Brushless Electric Motor;Shovel-loading pump tube |
| Construction | Steel, Buna-N, Acetal, Lubrithane, Polyurethane, Brass, Polyethylene |
| Control Options | Integrated electrical motor controller |
| Fluid Outlet Size (in) | 3/8 NPT and/or 1/4 NPT |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | Tapered Pipe Thread (NPT) |
| For Use With | ISO 100 Oil up to NLGI #2 Grease |
| IP Rating | IP69K |
| Input Sensor Voltage (VDC) | 24 |
| Input Voltage (V dc) | 24 |
| Low Level Carry Current (A) | 0.02 |
| Low Level Switch Rating (VDC) | 24 |
| Low Level Switching Current (A) | 0.2 |
| Lower Type | Shovel |
| Material | Carbon Alloy Steel |
| Maximum Continuous Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (strokes/min) | 64 |
| Maximum Flow Rate (ci/min) | 4.5 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum Input Amperage (A) | 10 |
| Maximum NLGI Grade | 2 |
| Maximum Operating Temperature (°F) | 149 |
| Maximum Voltage (V dc) | 30 |
| Maximum Working Pressure (MPa) | 24.1 |
| Maximum Working Pressure (psi) | 3500 |
| Maximum cST Grade (cST) | NLGI #2 Grease |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Voltage (V dc) | 18 |
| Motor Type | Brushless DC |
| Number of Pump Elements | 1 |
| Overall Depth (in) | 13.9 |
| Overall Height (in) | 39.0 |
| Overall Width (in) | 11.5 |
| Package Options | Pump with Reservoir |
| Power Connection Type | Deutsch DT04-12PB Housing |
| Power Rating (HP) | 0.25 |
| Power Type | Electric |
| Reservoir Material | Steel |
| Reservoir Size (L) | 12 |
| Sound Power Level (dB(A)) | <80 |
| Throat Seal Type | Hythane 181 |
| Type | Compact Electric Piston Pump |
| Vent Valve Maximum Operating Current (A) | 2 |
| Vent Valve Output Voltage (VDC) | 24 |
| Voltage (V dc) | 24 |
| Weight (lb) | 66 |
| Application | In-Plant Machinery, Off-Road Equipment |
| Approvals | CE;RCM |
| Compatible Material | Grease |
| Compatible Metering Device | Single Line Parallel |
| Component Technology | Brushless Electric Motor;Shovel-loading pump tube |
| Construction | Steel, Buna-N, Acetal, Lubrithane, Polyurethane, Brass, Polyethylene |
| Control Options | Integrated electrical motor controller |
| Fluid Outlet Size (in) | 3/8 NPT and/or 1/4 NPT |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | Tapered Pipe Thread (NPT) |
| For Use With | ISO 100 Oil up to NLGI #2 Grease |
| IP Rating | IP69K |
| Input Sensor Voltage (VDC) | 24 |
| Input Voltage (V dc) | 24 |
| Low Level Carry Current (A) | 0.02 |
| Low Level Switch Rating (VDC) | 24 |
| Low Level Switching Current (A) | 0.2 |
| Lower Type | Shovel |
| Material | Carbon Alloy Steel |
| Maximum Continuous Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (strokes/min) | 64 |
| Maximum Flow Rate (L/min) | 0.074 |
| Maximum Fluid Output Pressure (bar) | 241 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum Input Amperage (A) | 10 |
| Maximum NLGI Grade | 2 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Voltage (V dc) | 30 |
| Maximum Working Pressure (MPa) | 24.1 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24132 |
| Maximum Working Pressure (psi) | 3500 |
| Maximum cST Grade (cST) | NLGI #2 Grease |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Voltage (V dc) | 18 |
| Motor Type | Brushless DC |
| Number of Pump Elements | 1 |
| Overall Depth (mm) | 353.1 |
| Overall Height (mm) | 990 |
| Overall Width (mm) | 292 |
| Package Options | Pump with Reservoir |
| Power Connection Type | Deutsch DT04-12PB Housing |
| Power Type | Electric |
| Reservoir Material | Steel |
| Reservoir Size (L) | 12 |
| Sound Power Level (dB(A)) | <80 |
| Throat Seal Type | Hythane 181 |
| Type | Compact Electric Piston Pump |
| Vent Valve Maximum Operating Current (A) | 2 |
| Vent Valve Output Voltage (VDC) | 24 |
| Voltage (V dc) | 24 |
| Weight (kg) | 29.9 |
