Modu-Flo AL-25
Modu-Flo® AL-25 Pneumatic Pump without Reservoir
Part Number: 563306

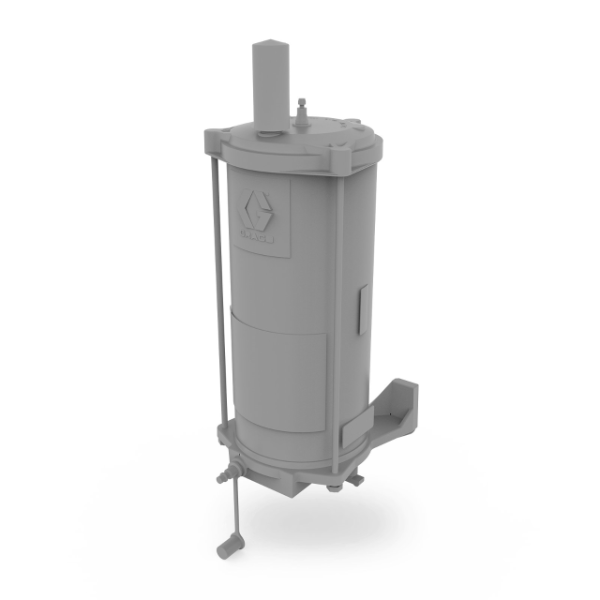

Image is for illustrative purposes only.
Modu-Flo AL-25
Modu-Flo® AL-25 Pneumatic Pump without Reservoir
Part Number: 563306
Mix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Mix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.
- Easy to standardize on components and reduce inventory
- Adjustable pump output for fast, convenient customizing
- Lubriquip part number 521-000-021
Specifications & Documents
Technical Specifications
Convert to Metric| Application | In-Plant Machinery |
|---|---|
| Compatible Material | Oil, Grease |
| Compatible Metering Device | Series Progressive |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Cycle Rate (CPM) | 30 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (MPa) | 31 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Modu-Flo |
| Overall Depth (in) | 2.875 |
| Overall Height (in) | 2.875 |
| Overall Width (in) | 10.375 |
| Power Type | Pneumatic |
| Series | AL-25 |
| Type | Pneumatic Piston Pump |
| Application | In-Plant Machinery |
| Compatible Material | Oil, Grease |
| Compatible Metering Device | Series Progressive |
| Maximum Air Inlet Pressure (bar) | 10.34 |
| Maximum Air Inlet Pressure (kPa) | 1034 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Cycle Rate (CPM) | 30 |
| Maximum Fluid Output Pressure (bar) | 241 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (MPa) | 31 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20680 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Modu-Flo |
| Overall Depth (cm) | 7.3 |
| Overall Depth (mm) | 73 |
| Overall Height (cm) | 7.3 |
| Overall Height (mm) | 73 |
| Overall Width (cm) | 26.4 |
| Overall Width (mm) | 264 |
| Power Type | Pneumatic |
| Series | AL-25 |
| Type | Pneumatic Piston Pump |
