Trabon
MSP and MHH Divider Valves - Visual Cycle Indicator
Part Number: 563251

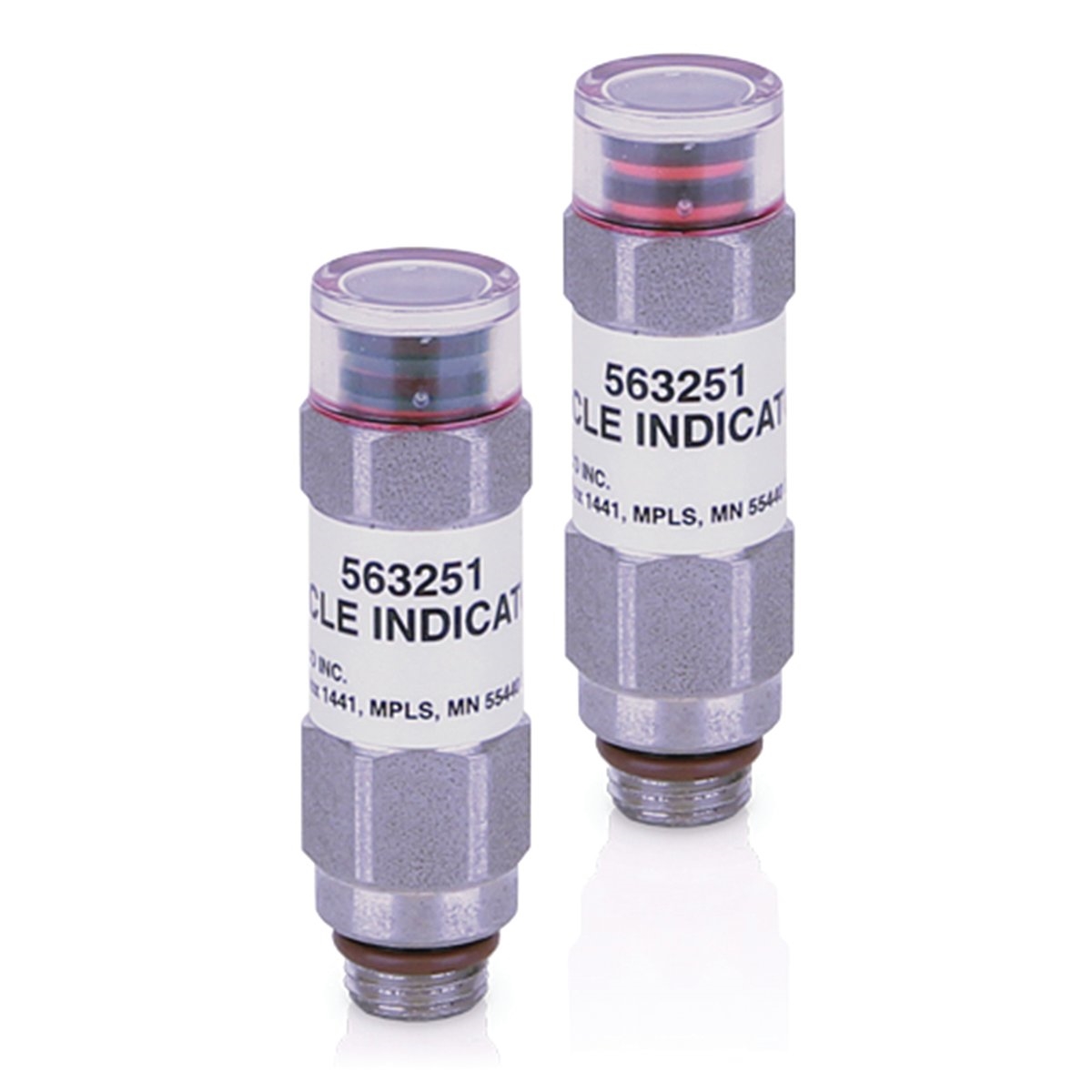

Image is for illustrative purposes only.
Trabon
MSP and MHH Divider Valves - Visual Cycle Indicator
Part Number: 563251
The self-contained Visual Cycle Indicator is designed to allow for easy installation to Trabon MSP and Manzel MHH divider valves. The red indicator ring moves with the valve piston, allowing the user to visually determine the timing of each divider valve cycle.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
The self-contained Visual Cycle Indicator is designed to allow for easy installation to Trabon MSP and Manzel MHH divider valves. The red indicator ring moves with the valve piston, allowing the user to visually determine the timing of each divider valve cycle.
For use with Oil or Grease lubrication systems, at pressures up to 7500 psi (517 bar).
- Makes physical contact with valve piston
- Polycarbonate housing allows for clear view of red indicator ring
- All parts are captured
- FKM o-ring seal for broad compatibility with synthetic oils and greases
- Replaces Lubriquip part number 509-932-522
Specifications & Documents
Technical Specifications
Convert to Metric| Application | On-Road Vehicles, Off-Road Equipment, Compressor Equipment |
|---|---|
| Compatible Material | Oil, Grease |
| Indicator Type | Cycle Indicator |
| Maximum Working Pressure (MPa) | 51.7 |
| Maximum Working Pressure (psi) | 7500 |
| Model | Trabon |
| Type | Cycle Indicator |
| Application | On-Road Vehicles, Off-Road Equipment, Compressor Equipment |
| Compatible Material | Oil, Grease |
| Indicator Type | Cycle Indicator |
| Maximum Working Pressure (MPa) | 51.7 |
| Maximum Working Pressure (bar) | 517.11 |
| Maximum Working Pressure (kPa) | 51711 |
| Maximum Working Pressure (psi) | 7500 |
| Model | Trabon |
| Type | Cycle Indicator |
