Trabon
Automatic Relief Indicator for MX Divider Valves, 750 psi (52 bar)
Part Number: 563156

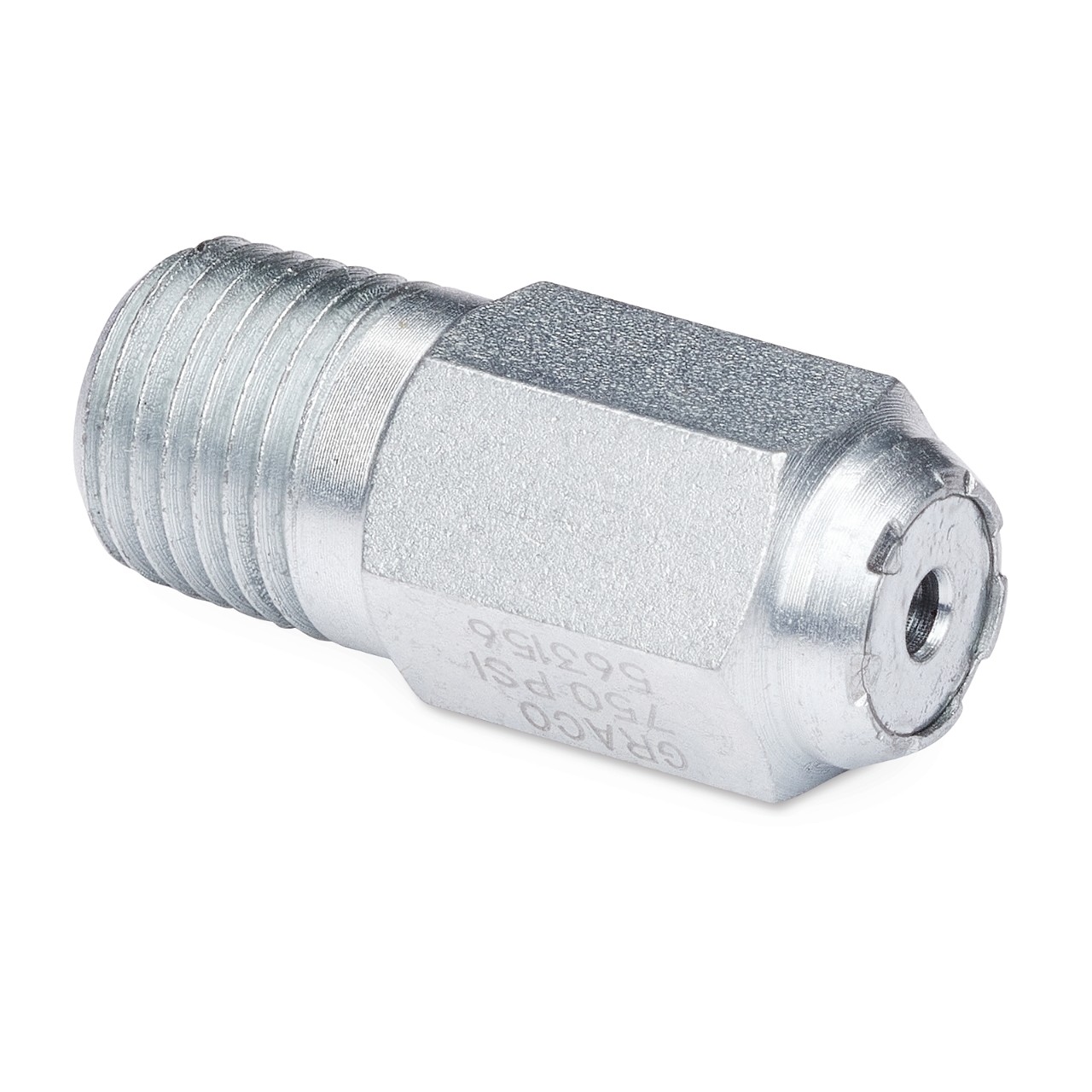

Image is for illustrative purposes only.
Trabon
Automatic Relief Indicator for MX Divider Valves, 750 psi (52 bar)
Part Number: 563156
Keep your machine running while lubrication gets to critical points. These performance indicators pinpoint lube line blockages but allow the lube system to continue to supply lubrication to points that are not blocked.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Keep your machine running while lubrication gets to critical points. These performance indicators pinpoint lube line blockages but allow the lube system to continue to supply lubrication to points that are not blocked.
- No time or effort required for reset after blockage is cleared
- Easy information on blocked lines, high system pressure or blocked bearings
- Works with MSP, MX, MXP, MJ and MHH divider valves
- Lubriquip part number 508-210-075
Specifications & Documents
Technical Specifications
Convert to Metric| Application | In-Plant Machinery, Off-Road Equipment, Compressor Equipment |
|---|---|
| Compatible Material | Oil, Grease |
| Connection Size (in) | 0.25 |
| Indicator Type | Automatic Relief Indicators |
| Maximum Working Pressure (MPa) | 5 |
| Maximum Working Pressure (psi) | 750 |
| Model | Trabon |
| Overall Length (in) | 1.37 |
| Thread Type | NPTF |
| Type | Relief Valve |
| Application | In-Plant Machinery, Off-Road Equipment, Compressor Equipment |
| Compatible Material | Oil, Grease |
| Connection Size (in) | 0.25 |
| Indicator Type | Automatic Relief Indicators |
| Maximum Working Pressure (MPa) | 5 |
| Maximum Working Pressure (bar) | 51 |
| Maximum Working Pressure (kPa) | 5100 |
| Maximum Working Pressure (psi) | 750 |
| Model | Trabon |
| Overall Length (cm) | 3 |
| Overall Length (mm) | 35 |
| Thread Type | NPTF |
| Type | Relief Valve |
Product Manuals
CAD Drawings
563156-3D-EN.zip
(118 KB)
