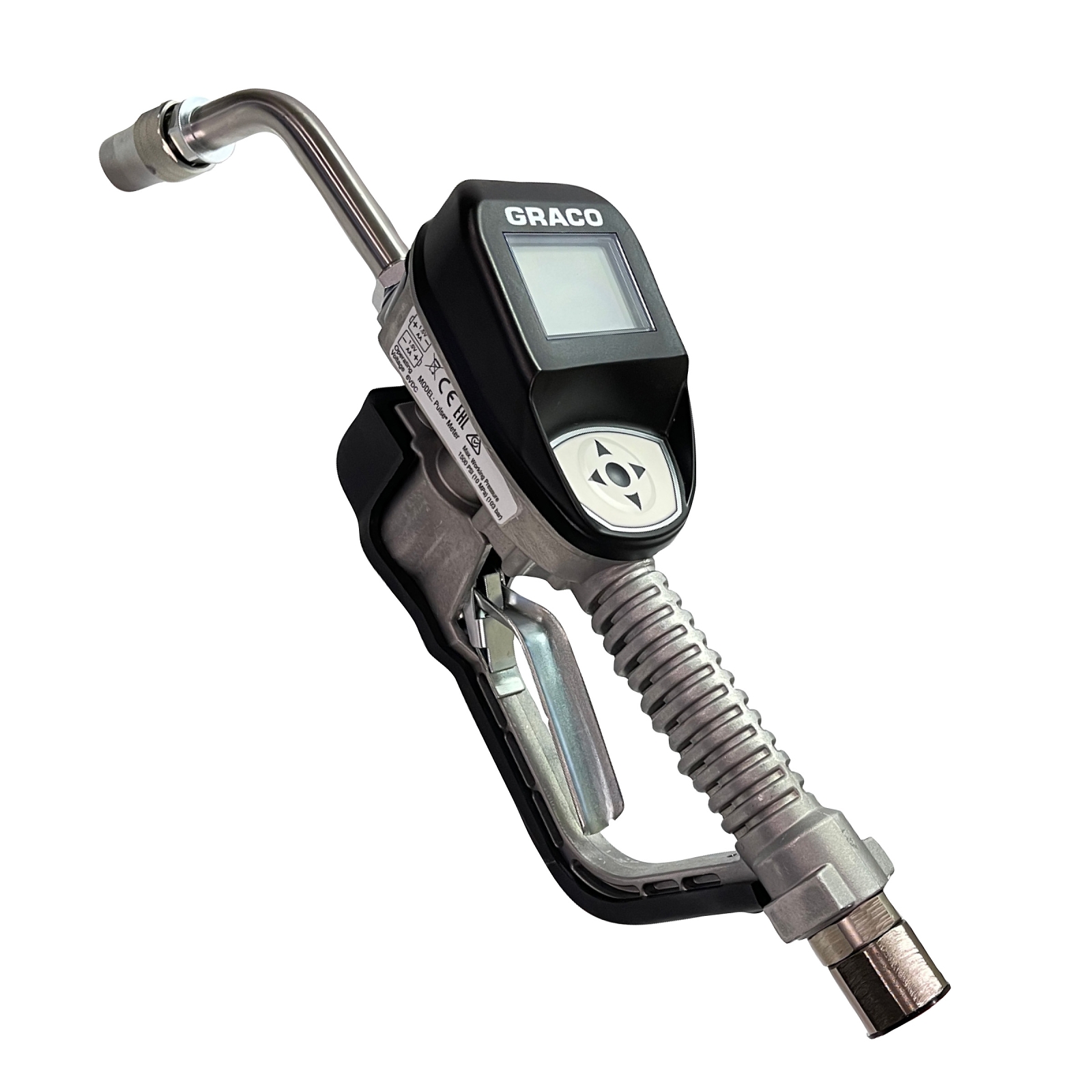

Pulse® Metered Dispense Valve for Oil and Coolant Applications - 3/4 in NPT inlet swivel, Rigid Extension, High Flow Nozzle
Part Number: 26D784
Pulse® Metered Dispense Valve for Oil and Coolant Applications - 3/4 in NPT inlet swivel, Rigid Extension, High Flow Nozzle
Part Number: 26D784
Graco dispense meters designed for our Pulse® Asset fluid management system are durable and easy to use. Everything you need is at your fingertips. Intuitive LCD display and D-pad allow for easy operation.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Graco dispense meters designed for our Pulse® Asset fluid management system are durable and easy to use. Everything you need is at your fingertips. Intuitive LCD display and D-pad allow for easy operation.
Track and record fluid refills in your assets with electronic metering and NFC tagging
Increase maintenance productivity
- Reliable—time-tested Graco engineering
- Large, Intuitive Display—high-contrast display for low and bright light conditions
Protective trigger guard—prevents accidental dispenses
Four finger trigger with lock-on feature
Long battery life—uses 4 AA easy-to-replace batteries
Specifications & Documents
Technical Specifications
Convert to Metric| Construction | Aluminum, Nickel-Plated Carbon Steel, Nitrile Rubber, PBT, Stainless Steel, Zinc-Plated Carbon Steel |
|---|---|
| Display Type | LCD |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | Extension, Nozzle, Batteries, Swivel Boot |
| Inlet Size (in) | 3/4 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 18 |
| Maximum RF Operating Temperature (°F) | 158 |
| Maximum Storage Temperature (°F) | 158 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy | .5 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 5.3 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Operating Temperature (°F) | 4 |
| Nozzle Type | High Flow |
| Overall Length (ft) | 1 |
| Overall Length (in) | 13 |
| Overall Width (in) | 3.75 |
| Product Type | Meter |
| Trigger Lock | Locking |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Gallon, Liter, Quart, Pint |
| Warranty | 5 Years Structural, 3 Years Electronics, 1 Year Wear Components |
| Construction | Aluminum, Nickel-Plated Carbon Steel, Nitrile Rubber, PBT, Stainless Steel, Zinc-Plated Carbon Steel |
| Display Type | LCD |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | Extension, Nozzle, Batteries, Swivel Boot |
| Inlet Size (in) | 3/4 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (L/min) | 68 |
| Maximum Flow Rate (cc/min) | 68137 |
| Maximum Flow Rate (cc/sec) | 1135.62 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (bar) | 103.4 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy | .5 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (kg) | 2.4 |
| Minimum Flow Rate (L/min) | 0.9 |
| Minimum Operating Temperature (°C) | -16 |
| Nozzle Type | High Flow |
| Overall Length (mm) | 330 |
| Overall Width (cm) | 9.5 |
| Overall Width (mm) | 95 |
| Product Type | Meter |
| Trigger Lock | Locking |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Gallon, Liter, Quart, Pint |
| Warranty | 5 Years Structural, 3 Years Electronics, 1 Year Wear Components |
