EM8 A

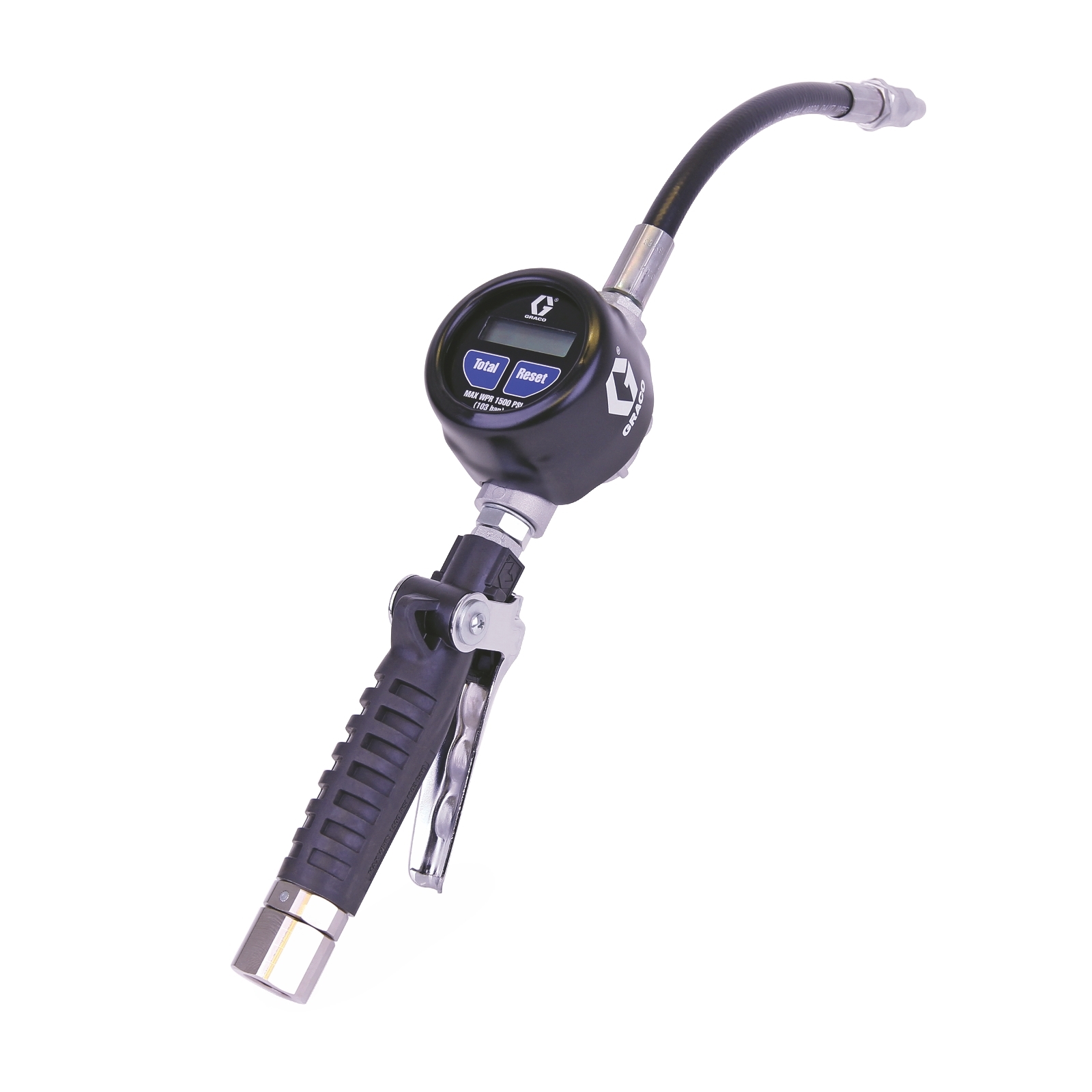

EM8 Electronic Manual Oil/Antifreeze Meter - Flexible Extension - 1/2 in. (13 mm) Inlet - NPT
Part Number: 25C904
Image is for illustrative purposes only.
EM8 A
EM8 Electronic Manual Oil/Antifreeze Meter - Flexible Extension - 1/2 in. (13 mm) Inlet - NPT
Part Number: 25C904
EM Series handheld and in-line meters are designed to last – from small service centers and lubrication trucks to heavy-duty repair facilities. Choose from 8 or 20 gpm (30.3 to 75.7 lpm) hand-held models or our 20 gpm (75.7 lpm) in-line meter. Graco’s EM Series meters are backed by our robust warran...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
EM Series handheld and in-line meters are designed to last – from small service centers and lubrication trucks to heavy-duty repair facilities. Choose from 8 or 20 gpm (30.3 to 75.7 lpm) hand-held models or our 20 gpm (75.7 lpm) in-line meter. Graco’s EM Series meters are backed by our robust warranty and feature upgraded electronics and easy-to-read LCD with simple operator controls that measures in quarts, gallons, pints and liters.
- Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
- High-Flow Rates - Capable of up to 8 gpm (30.3 lpm).
- Legacy Valve - 1/2 inch (13 mm) inlet, compatible with oil and Antifreeze.
- Prevent Accidental Dispenses - Easy-to-hold locking handle.
- Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
- Long Battery Life - Features upgraded electronics and easily replaceable AAA batteries.
Specifications & Documents
Technical Specifications
Convert to Metric| Approvals | CE |
|---|---|
| Calibration Type | Factory Calibrated |
| Compatible Material | Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze |
| Construction | Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast® |
| Display Type | Electronic |
| Extension Type | Flexible |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| IP Rating | 69K |
| Includes | Nozzle, Extension |
| Inlet Size (in) | 1/2 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 8 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Recorded Dispense | 19999 |
| Maximum Storage Temperature (°F) | 185 |
| Maximum Totalizer | 19999 |
| Maximum Working Pressure (MPa) | 10.2 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy (%) | ±0.5 |
| Meter Pressure Loss (psi) | 30 PSI at 6 GPM |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 3 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Operating Temperature (°F) | -22 |
| Model | EM8 |
| Nozzle Type | Manual |
| Outlet Size (in) | 3/4 |
| Outlet Thread Type | ORB |
| Overall Height (in) | 5.25 |
| Overall Length (in) | 13 |
| Overall Width (in) | 3.5 |
| Recommended Environment | Indoor/Outdoor |
| Series | A |
| Trigger Lock | Locking |
| Trigger Protection Type | Lock Off Button |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Quart, Pint, Liter, Gallon |
| Valve Type | Metered |
| Warranty | 5 Years |
| Approvals | CE |
| Calibration Type | Factory Calibrated |
| Compatible Material | Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze |
| Construction | Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast® |
| Display Type | Electronic |
| Extension Type | Flexible |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| IP Rating | 69K |
| Includes | Nozzle, Extension |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (L/min) | 30.3 |
| Maximum Flow Rate (cc/min) | 30283 |
| Maximum Flow Rate (cc/sec) | 505 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Recorded Dispense | 19999 |
| Maximum Storage Temperature (°C) | 85 |
| Maximum Totalizer | 19999 |
| Maximum Working Pressure (MPa) | 10.2 |
| Maximum Working Pressure (bar) | 102 |
| Maximum Working Pressure (kPa) | 10200 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy (%) | ±0.5 |
| Meter Pressure Loss (bar) | 2.1 Bar at 6 GPM |
| Meter Pressure Loss (psi) | 30 PSI at 6 GPM |
| Meter Technology | Oval Gear |
| Metering Gun Weight (kg) | 1.36 |
| Minimum Flow Rate (L/min) | 0.95 |
| Minimum Operating Temperature (°C) | -30 |
| Model | EM8 |
| Nozzle Type | Manual |
| Outlet Size (cm) | 1.905 |
| Outlet Size (in) | 3/4 |
| Outlet Size (mm) | 19.05 |
| Outlet Thread Type | ORB |
| Overall Height (cm) | 13.3 |
| Overall Height (mm) | 133 |
| Overall Length (cm) | 33 |
| Overall Length (mm) | 330 |
| Overall Width (cm) | 9 |
| Overall Width (mm) | 90 |
| Recommended Environment | Indoor/Outdoor |
| Series | A |
| Trigger Lock | Locking |
| Trigger Protection Type | Lock Off Button |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Quart, Pint, Liter, Gallon |
| Valve Type | Metered |
| Warranty | 5 Years |
