LD Series 3:1 Tank Mount Oil Pump with SD™ Series Hose Reel Packages - Manual Meter Type

Part Number: 24J776

product image
Image is for illustrative purposes only.

LD

LD Series 3:1 Tank Mount Oil Pump with SD™ Series Hose Reel Packages - Manual Meter Type

Part Number: 24J776

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

  • Three Inch Air Motor - Provides more power to create better flow.
  • Engineered for Durability - Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
  • Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
  • Pilot Valves - Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
  • Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

Specifications & Documents

Technical Specifications

Convert to Metric
Air Inlet Size (in) 0.25
Application Oil
Compatible Material Oil
Construction Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
Fluid Inlet Size (in) 1
Fluid Outlet Size (in) 1/2
Maximum Flow Rate (GPM) 7.8
Maximum Working Pressure (MPa) 5.2
Maximum Working Pressure (psi) 750
Model LD
Power Type Pneumatic
Pump Ratio 3:1
Type Piston Pump Package
Air Inlet Size (in) 0.25
Application Oil
Compatible Material Oil
Construction Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
Fluid Inlet Size (cm) 2.5400
Fluid Inlet Size (in) 1
Fluid Inlet Size (mm) 25.4000
Fluid Outlet Size (cm) 1.27
Fluid Outlet Size (in) 1/2
Fluid Outlet Size (mm) 12.7
Maximum Working Pressure (MPa) 5.2
Maximum Working Pressure (bar) 52
Maximum Working Pressure (kPa) 5200
Maximum Working Pressure (psi) 750
Model LD
Power Type Pneumatic
Pump Ratio 3:1
Type Piston Pump Package

What's Included

Part No. Description Qty Unit

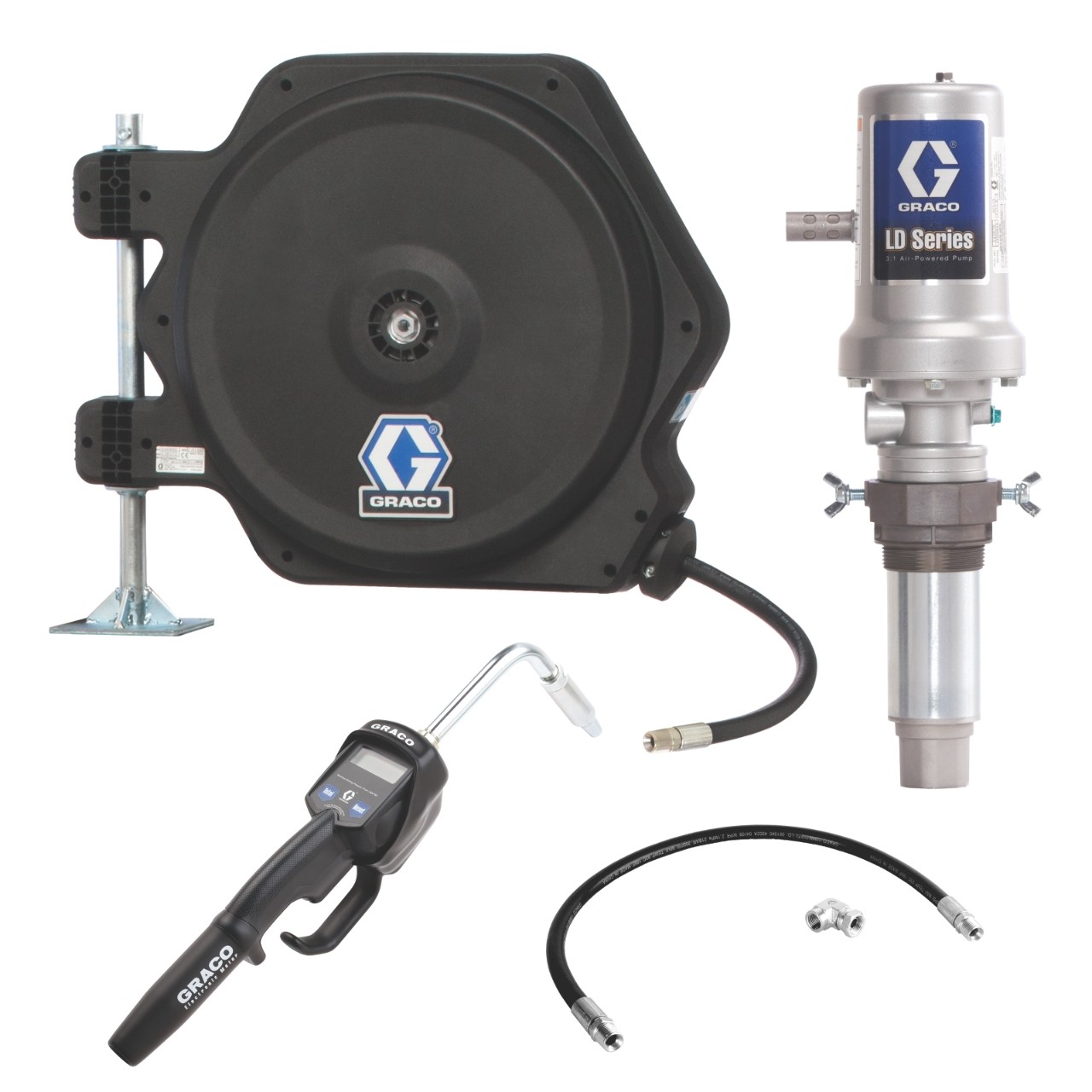

24G576 LD Series 3:1 Universal Oil Pump with Bung Adapter - NPT ea
HEM004 LDX™ Series, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT ea
25C903 EM8 Electronic Manual Oil/Antifreeze Meter - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT ea
