SDV15

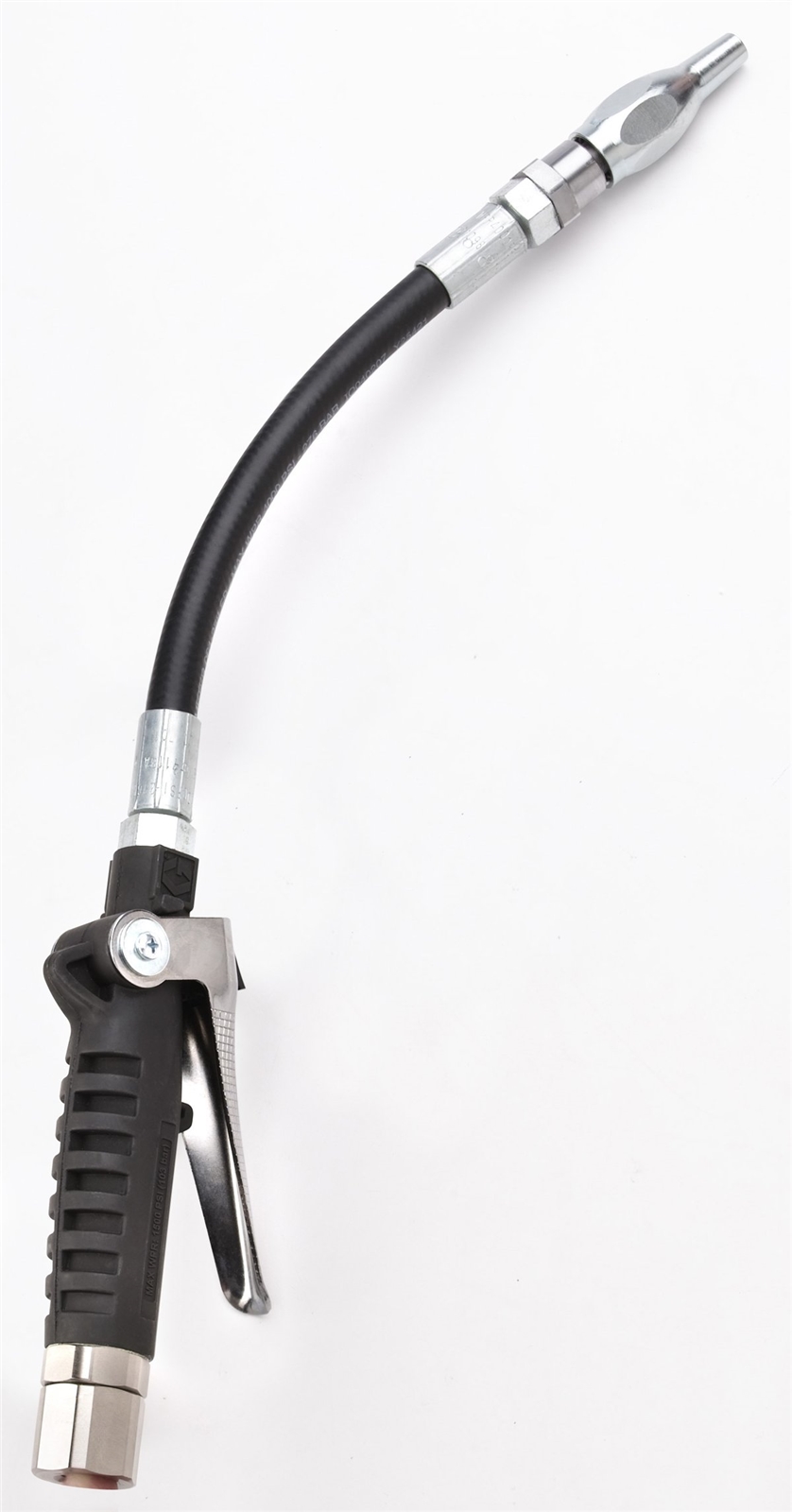

SDV15 Series Oil Control Valve - Flexible Extension - 1/2 in. (13 mm) Inlet - NPT
Part Number: 247713
SDV15
SDV15 Series Oil Control Valve - Flexible Extension - 1/2 in. (13 mm) Inlet - NPT
Part Number: 247713
For standard and heavy-duty applications, both indoor and outdoor, the SDV15 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil...
More InfoIf you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
For standard and heavy-duty applications, both indoor and outdoor, the SDV15 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil up to 15 gpm (56.8 lpm).
Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, In-plant, Lube trucks, and Mining.
- Lock-on/Lock-off trigger allows hands free operation
- Sturdy cast body designed for use in tough environments
- Inlet 1/2 in. NPT with swivel
- Features flexible extension with oil nozzle
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Oil |
|---|---|
| Construction | Aluminum, Stainless Steel, CS, Acetal, Nitrile Rubber, TPE |
| Dispense Type | Manual |
| Display Type | N/A |
| Extension Type | Flexible |
| Includes | Nozzle, Extension |
| Inlet Size (in) | 1/2 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (psi) | 1500 |
| Minimum Operating Temperature (°F) | -40 |
| Model | SDV15 |
| Outlet Size (in) | 3/4 |
| Outlet Thread Gender | Female |
| Outlet Thread Type | Straight Thread O-Ring Boss |
| Recommended Environment | Indoor, Outdoor |
| Trigger Lock | Locking |
| Type | Non-Metered Dispense Valve |
| Valve Type | Non-Metered |
| Weight (lb) | 0.4 |
| Compatible Material | Oil |
| Construction | Aluminum, Stainless Steel, CS, Acetal, Nitrile Rubber, TPE |
| Dispense Type | Manual |
| Display Type | N/A |
| Extension Type | Flexible |
| Includes | Nozzle, Extension |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Working Pressure (bar) | 103.4 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (psi) | 1500 |
| Minimum Operating Temperature (°C) | -40 |
| Model | SDV15 |
| Outlet Size (cm) | 1.905 |
| Outlet Size (in) | 3/4 |
| Outlet Size (mm) | 19.05 |
| Outlet Thread Gender | Female |
| Outlet Thread Type | Straight Thread O-Ring Boss |
| Recommended Environment | Indoor, Outdoor |
| Trigger Lock | Locking |
| Type | Non-Metered Dispense Valve |
| Valve Type | Non-Metered |
| Weight (kg) | 0.18 |
