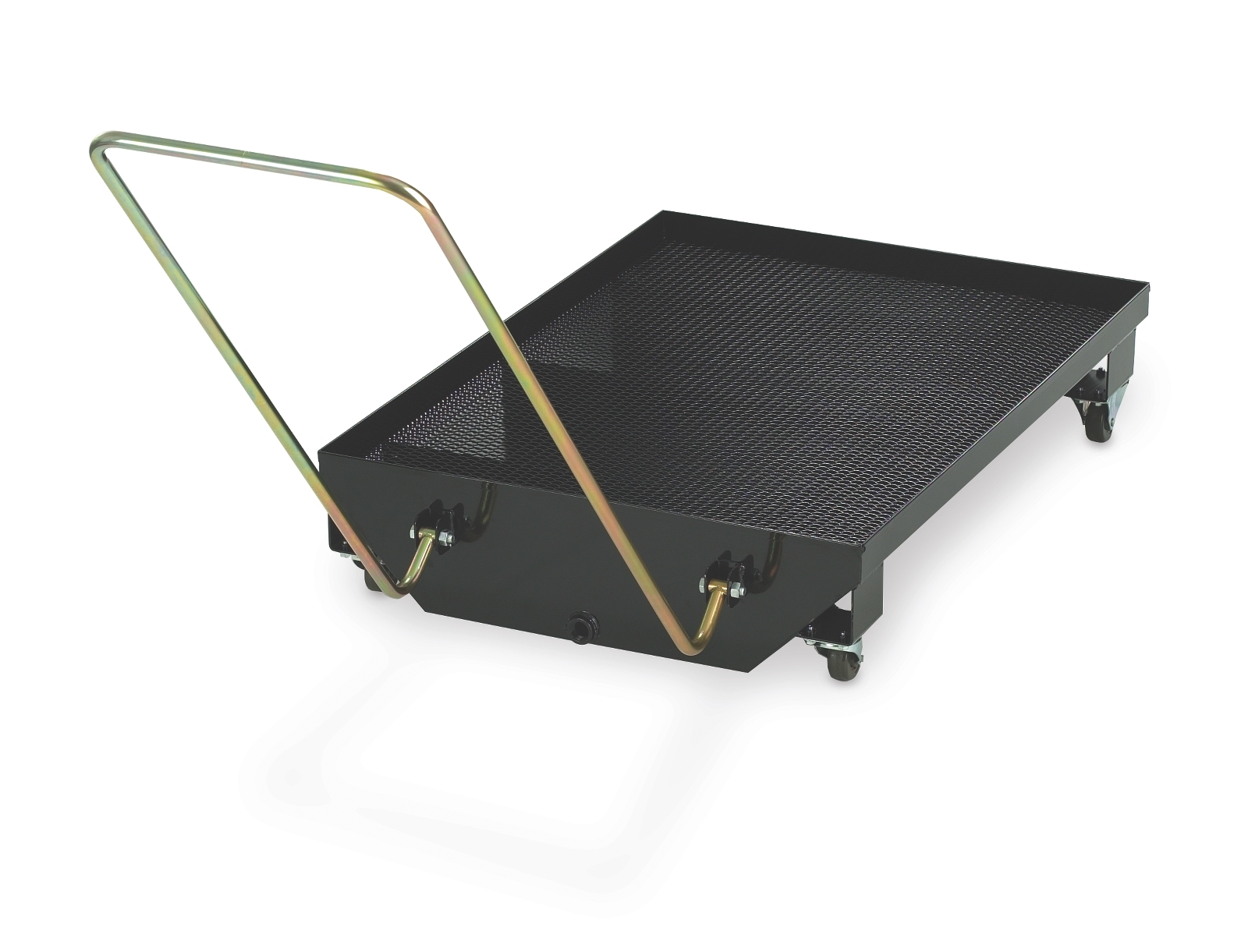

Big Hauler Truck Drain for Truck Maintenance Facilities
Part Number: 244055
![product image](/content/dam/pim/graco/led/pmg/244055_Big_Hauler_LF.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
Image is for illustrative purposes only.
Big Hauler Truck Drain for Truck Maintenance Facilities
Part Number: 244055
Specially-designed for truck maintenance facilities, the Big Hauler Truck Drain boasts a large capacity and easy maneuverability.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product BrochureSpecially-designed for truck maintenance facilities, the Big Hauler Truck Drain boasts a large capacity and easy maneuverability.
- Gravity drain valve at bottom of unit allows for easy drain access
- 3/4 in NPT outlet can also be used with 224873 for diaphragm evacuation
- Capacity: 26 gallons (98 l)
- Dimensions: 42 in (106.7 cm) long; 30 in (76.2 cm) wide; 9 in (22.9 cm) deep
Specifications & Documents
Technical Specifications
Convert to MetricColor | Black |
---|---|
Fluid Outlet Size (in) | 3/4 |
Fluid Outlet Thread Type | NPT |
Overall Height (ft) | 0.92 |
Overall Height (in) | 11 |
Overall Length (ft) | 3.5 |
Overall Length (in) | 42 |
Overall Width (ft) | 2.5 |
Overall Width (in) | 30 |
Tank Capacity (gal) | 26 |
Type | Fluid Reclamation Package |
Weight (lb) | 85 |
Wetted Parts | Steel |
Color | Black |
Fluid Outlet Size (cm) | 1.905 |
Fluid Outlet Size (in) | 3/4 |
Fluid Outlet Size (mm) | 19.05 |
Fluid Outlet Thread Type | NPT |
Overall Height (cm) | 27.94 |
Overall Height (m) | 0.28 |
Overall Height (mm) | 279.4 |
Overall Length (cm) | 107 |
Overall Length (m) | 1.07 |
Overall Length (mm) | 1066.8 |
Overall Width (cm) | 76.2 |
Overall Width (m) | 0.76 |
Overall Width (mm) | 762 |
Tank Capacity (L) | 98 |
Type | Fluid Reclamation Package |
Weight (kg) | 38.6 |
Wetted Parts | Steel |
Product Manuals
Sales Literature
303245EN-AM Graco Vehicle Service Equipment (VSE) North American Buyer's Guide
(27 MB)
(English Only)
