Husky 307
Husky 307 Series Pre-Mixed Windshield Wash Solvent and Coolant Dispense Diaphragm Pump Package
Part Number: 237161

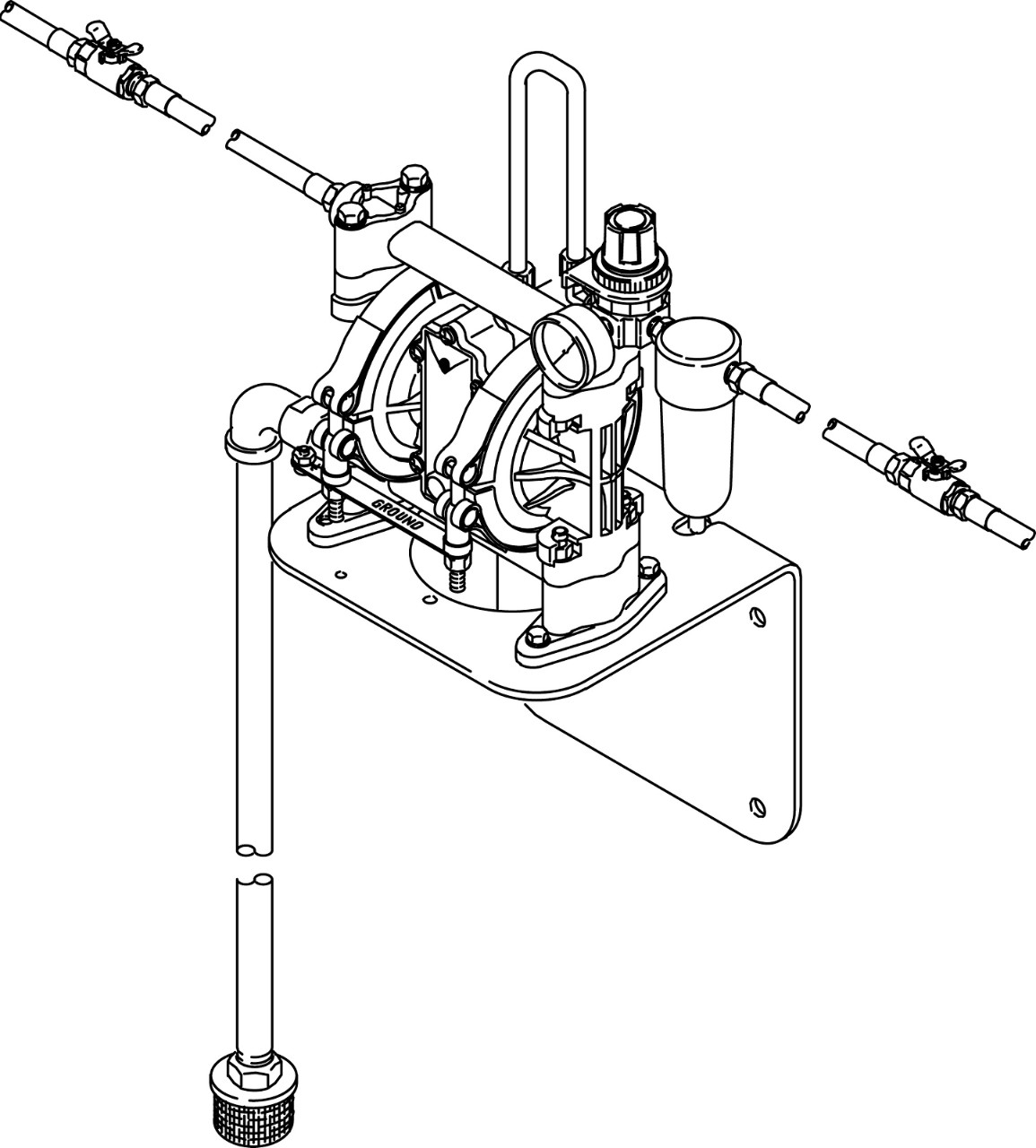

![product image](/content/dam/pim/graco/led/pmg/237161_Double_Diaphragm_Kit_bw.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
Image is for illustrative purposes only.
Husky 307
Husky 307 Series Pre-Mixed Windshield Wash Solvent and Coolant Dispense Diaphragm Pump Package
Part Number: 237161
The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product BrochureThe Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil.
- Quick and easy assembly and disassembly design
- Easy to service air valve and ball checks
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Every pump is tested prior to shipping
- 3/8 in (9.52 mm) end porting
- Delivery up to 7 gpm (26.5 lpm)
- Easy-to-service air valve and ball checks
Specifications & Documents
Technical Specifications
Convert to MetricApplication | Industrial |
---|---|
Compatible Material | Oil, Water, Antifreeze, Windshield Washer Fluid |
Fluid Inlet Size (in) | 3/8 |
Fluid Inlet Thread Gender | Female |
Fluid Inlet Thread Type | NPT |
Fluid Outlet Size (in) | 3/8 |
Fluid Outlet Thread Gender | Female |
Fluid Outlet Thread Type | NPT |
For Use With | Windshield Wash Solvent and Coolant |
Includes | 307 Diaphragm Pump, Air Hose, Coupled Fluid Hose, Air Filter, Air Gauge, Air Line Fitting, Air Regulator, Elbow, Tube, Mounting Bracket, Adapter, Nipple, Suction Hose Kit, Coupled PVC Hose and Mesh Strainer, Wall Bracket |
Material | Acetal, TPE |
Maximum Air Pressure (psi) | 100 |
Maximum Cycle Rate (CPM) | 330 |
Maximum Flow Rate (GPM) | 7 |
Maximum Fluid Pressure (MPa) | 0.7 |
Maximum Fluid Pressure (psi) | 100 |
Maximum Solid Size (in) | 0.06 |
Model | Husky |
Series | 307 |
Type | Diaphragm Pump Package |
Application | Industrial |
Compatible Material | Oil, Water, Antifreeze, Windshield Washer Fluid |
Fluid Inlet Size (cm) | 0.9525 |
Fluid Inlet Size (in) | 3/8 |
Fluid Inlet Size (mm) | 9.525 |
Fluid Inlet Thread Gender | Female |
Fluid Inlet Thread Type | NPT |
Fluid Outlet Size (cm) | 0.9525 |
Fluid Outlet Size (in) | 3/8 |
Fluid Outlet Size (mm) | 9.525 |
Fluid Outlet Thread Gender | Female |
Fluid Outlet Thread Type | NPT |
For Use With | Windshield Wash Solvent and Coolant |
Includes | 307 Diaphragm Pump, Air Hose, Coupled Fluid Hose, Air Filter, Air Gauge, Air Line Fitting, Air Regulator, Elbow, Tube, Mounting Bracket, Adapter, Nipple, Suction Hose Kit, Coupled PVC Hose and Mesh Strainer, Wall Bracket |
Material | Acetal, TPE |
Maximum Air Pressure (bar) | 7 |
Maximum Air Pressure (kPa) | 70 |
Maximum Air Pressure (psi) | 100 |
Maximum Cycle Rate (CPM) | 330 |
Maximum Fluid Pressure (MPa) | 0.7 |
Maximum Fluid Pressure (bar) | 7 |
Maximum Fluid Pressure (kPa) | 70 |
Maximum Fluid Pressure (psi) | 100 |
Maximum Solid Size (cm) | 0.1524 |
Maximum Solid Size (mm) | 1.524 |
Model | Husky |
Series | 307 |
Type | Diaphragm Pump Package |
