Power-Star

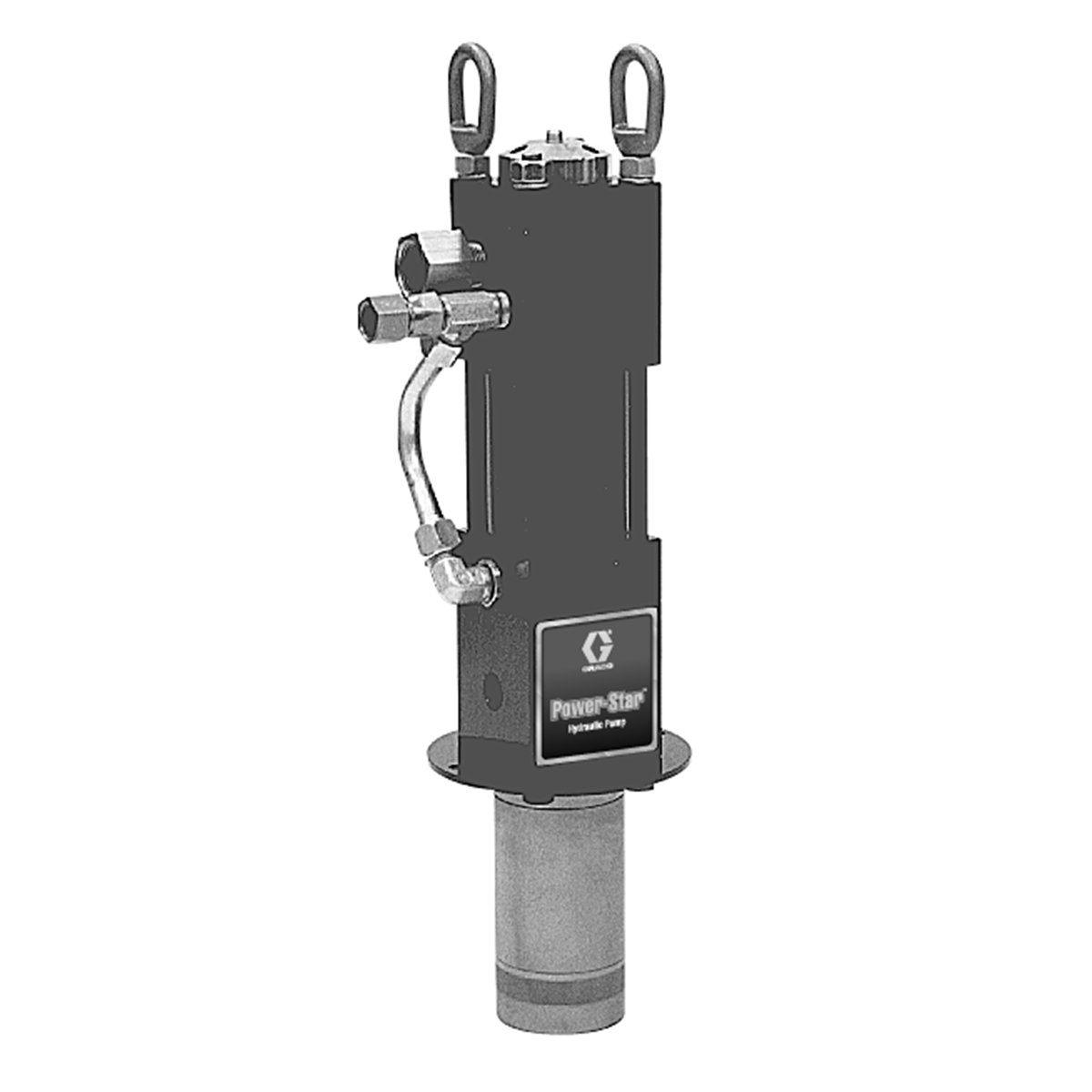

Power-Star™ Series 1:1 Universal Size Hydraulic-Powered Oil Pump
Part Number: 236754
![product image](/content/dam/pim/graco/led/pmg/236754_Power_Star_RF.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
Image is for illustrative purposes only.
Power-Star
Power-Star™ Series 1:1 Universal Size Hydraulic-Powered Oil Pump
Part Number: 236754
Hydraulic Power-Star pumps provide reliable, quiet, ice-free performance at maximum pressure and low flow rates and are up to three times more energy efficient than comparable compressed-air systems.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product BrochureHydraulic Power-Star pumps provide reliable, quiet, ice-free performance at maximum pressure and low flow rates and are up to three times more energy efficient than comparable compressed-air systems.
- Built-In Reliability - Self-lubricating vertical design for long life and reliable operation in high-vibration environments.
- Quiet Hydraulic Motor - No need for add-on mufflers.
- High-Efficiency Motor - Uses less hydraulic oil.
Specifications & Documents
Technical Specifications
Convert to MetricApplication | Industrial |
---|---|
Compatible Material | Oil |
Construction | Iron, Steel, Stainless Steel, Nitrile, Polyurethane |
Fluid Inlet Size (in) | 1-1/2 |
Fluid Inlet Thread Gender | Female |
Fluid Inlet Thread Type | NPT |
Fluid Outlet Size (in) | 1/2 |
Fluid Outlet Thread Gender | Female |
Fluid Outlet Thread Type | NPT |
For Use With | Petroleum- and synthetic-based oils (motor, gear and ATF) |
Maximum Continuous Cycle Rate (CPM) | 60 |
Maximum Flow Rate (GPM) | 12 |
Maximum Fluid Output Pressure (psi) | 1500 |
Maximum Hydraulic Fluid Inlet Pressure (psi) | 1500 |
Maximum Intermittent Cycle Rate (CPM) | 60 |
Model | Power-Star |
Pump Ratio | 1:1 |
Type | Hydraulic Piston Pump |
Application | Industrial |
Compatible Material | Oil |
Construction | Iron, Steel, Stainless Steel, Nitrile, Polyurethane |
Fluid Inlet Size (in) | 1-1/2 |
Fluid Inlet Size (mm) | 38.1 |
Fluid Inlet Thread Gender | Female |
Fluid Inlet Thread Type | NPT |
Fluid Outlet Size (in) | 1/2 |
Fluid Outlet Size (mm) | 12.7 |
Fluid Outlet Thread Gender | Female |
Fluid Outlet Thread Type | NPT |
For Use With | Petroleum- and synthetic-based oils (motor, gear and ATF) |
Maximum Continuous Cycle Rate (CPM) | 60 |
Maximum Flow Rate (L/min) | 45.42 |
Maximum Fluid Output Pressure (bar) | 103 |
Maximum Fluid Output Pressure (psi) | 1500 |
Maximum Hydraulic Fluid Inlet Pressure (bar) | 103 |
Maximum Hydraulic Fluid Inlet Pressure (kPa) | 10300 |
Maximum Hydraulic Fluid Inlet Pressure (psi) | 1500 |
Maximum Intermittent Cycle Rate (CPM) | 60 |
Model | Power-Star |
Pump Ratio | 1:1 |
Type | Hydraulic Piston Pump |
