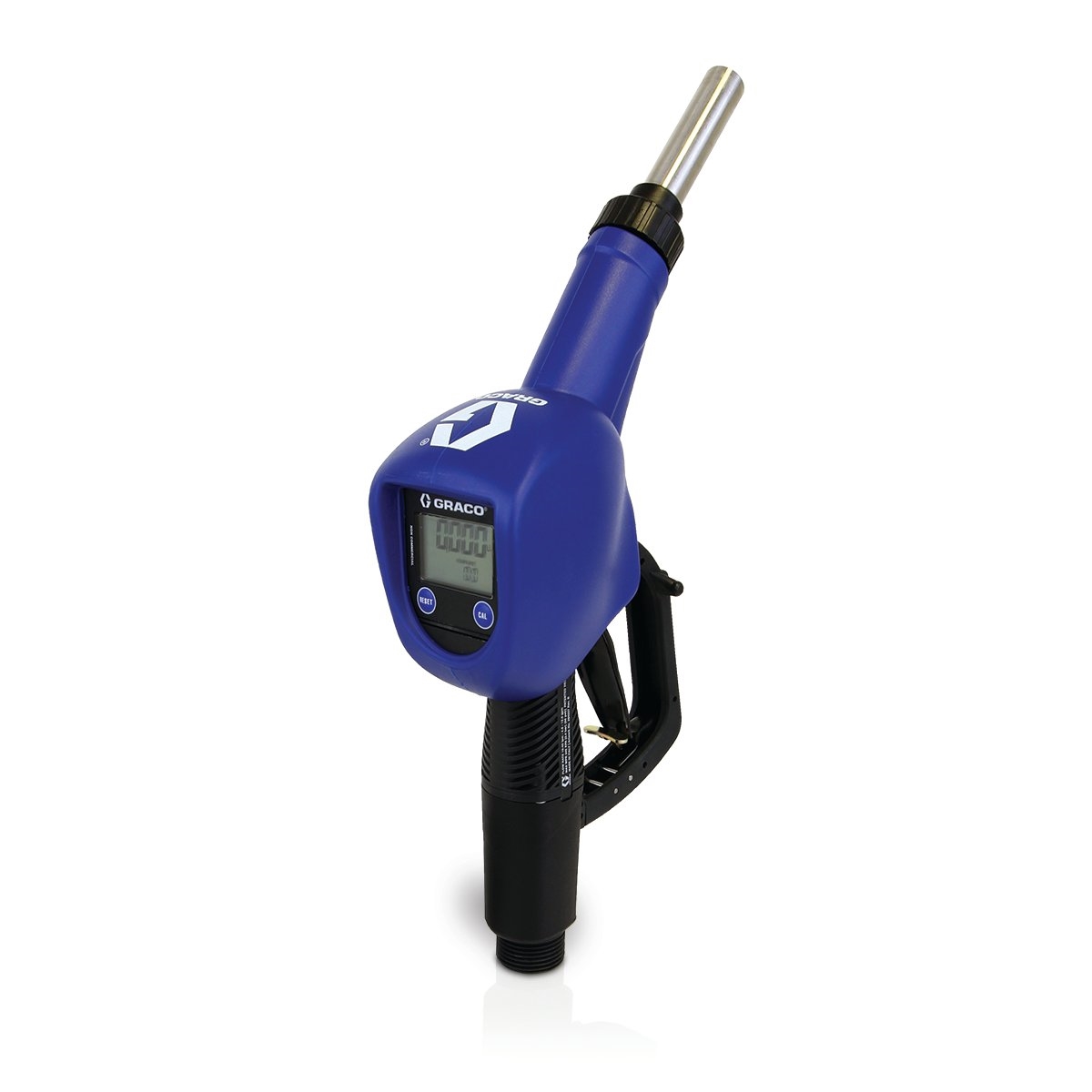

LD™ Automatic Nozzle with Built-In Electronic Turbine Meter, with Stainless Steel Breakaway Spout
Part Number: 127650
LD
LD™ Automatic Nozzle with Built-In Electronic Turbine Meter, with Stainless Steel Breakaway Spout
Part Number: 127650
Graco's LD Series DEF solutions offer long-lasting efficiency in a compact, high-performance electric pump package capable of pumping up to 9 gpm (34 lpm). Whether a small garage, large dealership, or heavy equipment maintenance facility, Graco has a complete line of Diesel Exhaust Fluid (DEF) produ...
More InfoIf you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Graco's LD Series DEF solutions offer long-lasting efficiency in a compact, high-performance electric pump package capable of pumping up to 9 gpm (34 lpm). Whether a small garage, large dealership, or heavy equipment maintenance facility, Graco has a complete line of Diesel Exhaust Fluid (DEF) products for every application. Our electric, pneumatic, or manual products are engineered specifically for the advanced needs of DEF fluid and are designed to minimize downtime and dispense materials quickly without compromising chemical integrity.
Typical applications include automotive and heavy-duty dealerships, service and fast lube centers, fleet service facilities, and in-plant.
- Manual shut-off valve with
- High 12 gpm (45 lpm) flow rate
- 3/4 in BSPP inlet
- Lightweight – under 1 lb (0.5 kg)
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Diesel Exhaust Fluid |
|---|---|
| Construction | Stainless Steel, Plastic, Rubber |
| Dispense Type | Manual |
| Display Type | LCD |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Male |
| Fluid Outlet Thread Gender | Male |
| Includes | LD Automatic Nozzle with built-in Electronic Turbine Meter, with Stainless Steel Breakaway Tip, Hose Barb |
| Inlet Size (in) | 3/4 |
| Inlet Thread Type | BSPP |
| Maximum Operating Temperature (°F) | 122 |
| Maximum Storage Temperature (°F) | 158 |
| Maximum Working Pressure (MPa) | 0.4 |
| Maximum Working Pressure (psi) | 50 |
| Meter Accuracy (%) | 1 |
| Meter Technology | Turbine |
| Metering Gun Weight (lb) | 1.8 |
| Minimum Operating Temperature (°F) | 14 |
| Model | LD |
| Nozzle Type | Rigid |
| Overall Height (in) | 7.4860 |
| Overall Length (in) | 15.6024 |
| Overall Width (in) | 3.152 |
| Recommended Environment | Indoor |
| Trigger Lock | Locking |
| Trigger Protection Type | Guard |
| Type | Automatic Shut-Off Nozzle |
| Warranty | 2 years |
| Compatible Material | Diesel Exhaust Fluid |
| Construction | Stainless Steel, Plastic, Rubber |
| Dispense Type | Manual |
| Display Type | LCD |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Male |
| Fluid Outlet Thread Gender | Male |
| Includes | LD Automatic Nozzle with built-in Electronic Turbine Meter, with Stainless Steel Breakaway Tip, Hose Barb |
| Inlet Size (cm) | 1.905 |
| Inlet Size (in) | 3/4 |
| Inlet Size (mm) | 19.05 |
| Inlet Thread Type | BSPP |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Working Pressure (MPa) | 0.4 |
| Maximum Working Pressure (bar) | 3.5 |
| Maximum Working Pressure (kPa) | 350 |
| Maximum Working Pressure (psi) | 50 |
| Meter Accuracy (%) | 1 |
| Meter Technology | Turbine |
| Metering Gun Weight (kg) | 0.08 |
| Minimum Operating Temperature (°C) | -10 |
| Model | LD |
| Nozzle Type | Rigid |
| Overall Height (cm) | 19.0144 |
| Overall Height (mm) | 190 |
| Overall Length (cm) | 40 |
| Overall Length (mm) | 396 |
| Overall Width (cm) | 8 |
| Overall Width (mm) | 80 |
| Recommended Environment | Indoor |
| Trigger Lock | Locking |
| Trigger Protection Type | Guard |
| Type | Automatic Shut-Off Nozzle |
| Warranty | 2 years |
