24 gal (90 l) Steel-Tank Pressurized Oil Drain

Part Number: 119577

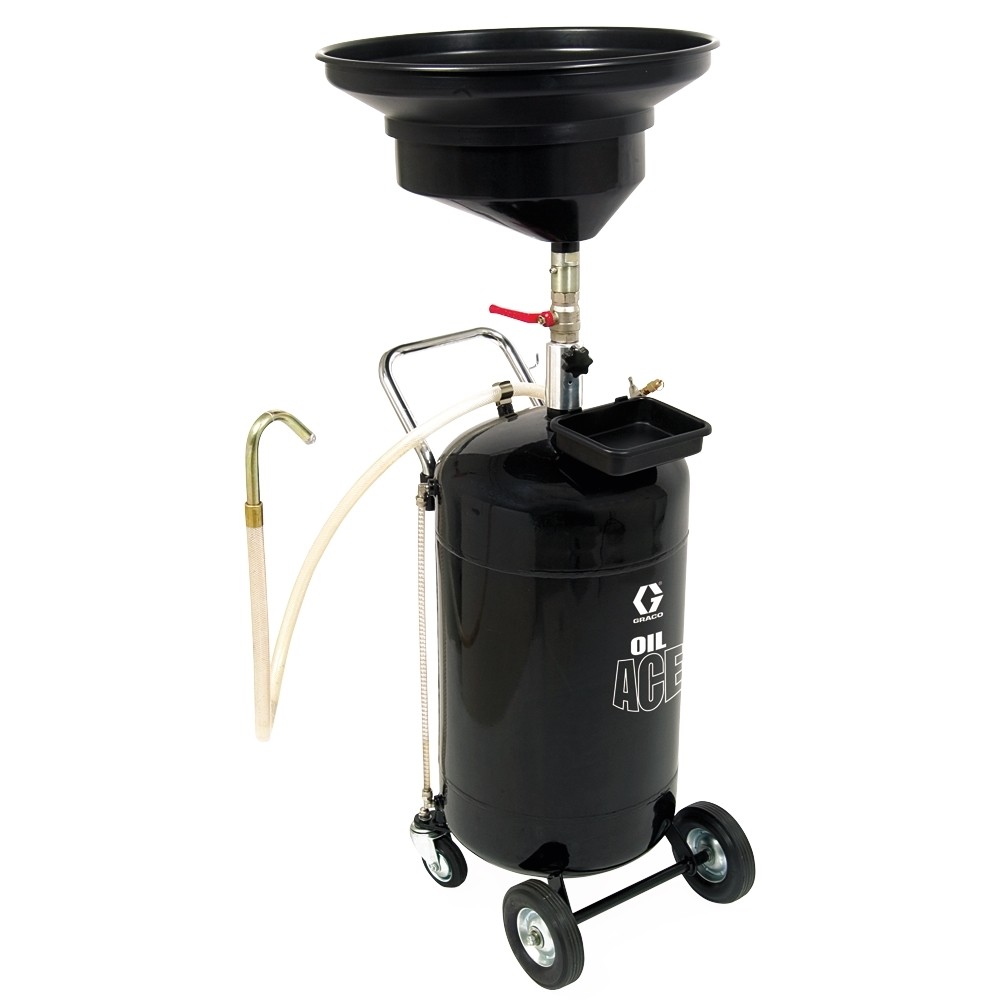

product image
Image is for illustrative purposes only.

24 gal (90 l) Steel-Tank Pressurized Oil Drain

Part Number: 119577

Drain, evacuate and transfer used oil (and other used fluids) reliably, quickly and in the most cost-effective manner.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Drain, evacuate and transfer used oil (and other used fluids) reliably, quickly and in the most cost-effective manner.

For shops requiring flexibility, use Graco’s multi-purpose used oil evacuation system when fluid drain plugs are either not easily accessible or not available.

  • Ensures peak performance with easy-to-read vacuum gauge
  • Includes vacuum probes with a variety of suction attachments and adapters
  • Features a 24-gallon (90 L) capacity receiver
  • Includes optional large offset collection pan to prevent splashing
  • Uses shop air to pressurize for easy oil evacuation and draining
  • Includes optional sight glass, which allows for oil quality inspection with clear evacuation chamber and easy-to-read evacuation measurements

Specifications & Documents

Technical Specifications

Convert to Metric
Color Black
Compatible Fluid Oil
Maximum Working Pressure (psi) 7
Overall Height (ft) 6.67
Overall Height (in) 80
Overall Width (ft) 1.3448
Overall Width (in) 16
Tank Capacity (gal) 24
Type Fluid Reclamation Package
Weight (lb) 74
Wetted Parts Steel, Copper, PVC Plastic, Rubber, Aluminum
Color Black
Compatible Fluid Oil
Maximum Working Pressure (bar) 0.5
Maximum Working Pressure (kPa) 50
Maximum Working Pressure (psi) 7
Overall Height (cm) 203.2
Overall Height (m) 2.03
Overall Height (mm) 2032
Overall Width (cm) 40.6
Overall Width (m) 0.41
Overall Width (mm) 406
Tank Capacity (L) 90
Type Fluid Reclamation Package
Weight (kg) 33.57
Wetted Parts Steel, Copper, PVC Plastic, Rubber, Aluminum
