GrindLazer
Surface Preparation Systems
Graco's GrindLazer Lineup
From Handhelds to High Production Series, Graco provides the ultimate lineup of surface preparation and line removal equipment. This recently expanded offering of scarifier systems delivers the industry's most complete line of surface preparation systems for any application. Backed by a solid reputation of proven quality, maximum performance, and unmatched on-the-job productivity, these GrindLazer scarifiers are designed to exceed the professional contractor's standards for quality and performance.
Powerful Solutions for Every Scarifier Application
HANDHELD SERIES
Ideal for touch up, edging, walls, curbs, and areas that are hard to reach.
STANDARD SERIES
Compact drum cutter models for basic surface prep, repairs, and line removal.
PROFESSIONAL SERIES
Heavy-duty drum cutter models for all surface prep, repairs, and line removal needs.
HIGH PRODUCTION SERIES
Ideal for high-production applications including surface prep, line removal, leveling, and inlay.
Download the GrindLazer Brochure

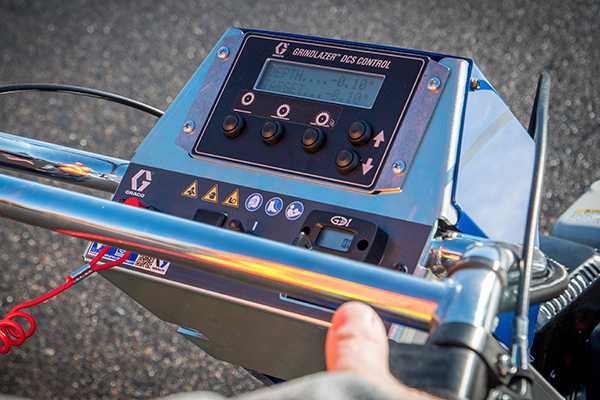

GrindLazer Depth Control System (DCS)
Experience The Easiest Depth Control Scarifier Ever Built
The revolutionary new Depth Control System from Graco. Finish every job faster with unmatched accuracy and “on-the-fly” depth control with the simple push of a button.
- Eliminate measuring & guesswork
- Quickly and accurately adjust cutter depth “on-the-fly”
- Easily align with ever-changing terrain
- Consistent cut depth for inlay applications
- Eliminate damage due to “dropped drums”
DCS Features
Ultimate Control & Application Flexibility
- User settable “zero point” to match cutter assembly
- Displays “active depth” from zero point
- English and metric units
- Robust design stands up the harsh abuse

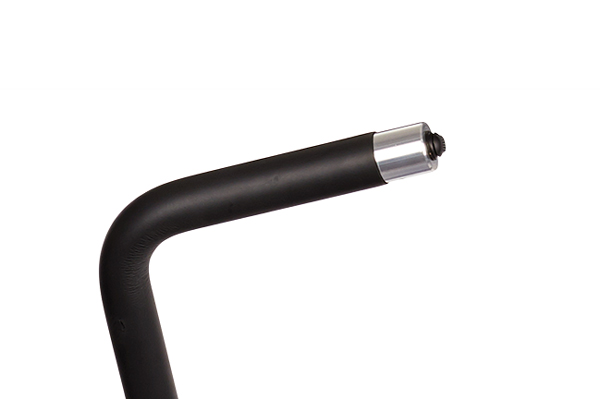

Remote Handlebar Switch
- Control cut depth while keeping both hands on the GrindLazer—increasing safety and reducing fatigue
- Highly durable, military-grade switch

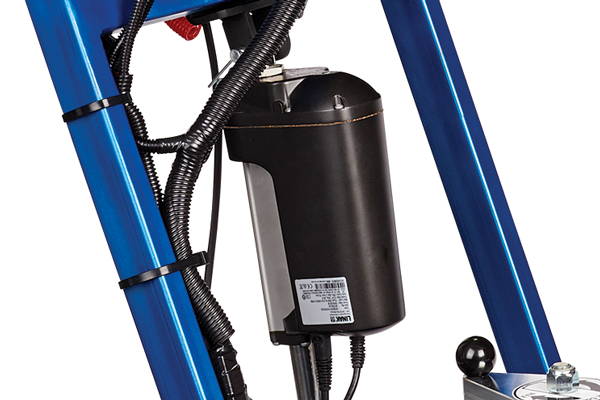

Maintenance-Free Design
- Linear drive delivers consistent, accurate movement
- High-speed design for fast on-the-fly adjustments
- Unique sealed case resists water, dust, and debris
GrindLazer
Handheld Series
Typical Applications: Touch Ups, Edge Work, and Walls
Handheld Series |
||
 |
 |
 |
| DC21 E | RC71 E | |
| Part Number | 25M841 | 25M848 |
| Cutter Type | Drum | Rotary |
| Max Working Width | 2 in | 7 in |
| Cutter Drum Diameter | 4 in | NA |
| Motor | 110V Makita | 110V Makita |
| Max Cut Rate | 100 sq ft/hr | 100 sq ft/hr |
| Vacuum Port | Yes | Yes |
| Product Link | LEARN MORE | LEARN MORE |
GrindLazer
Standard Series
Typical Applications: Traffic Paint Removal, Thermoplastic Removal, and Smoothing Uneven Surfaces
Standard Series |
||
 |
 |
 |

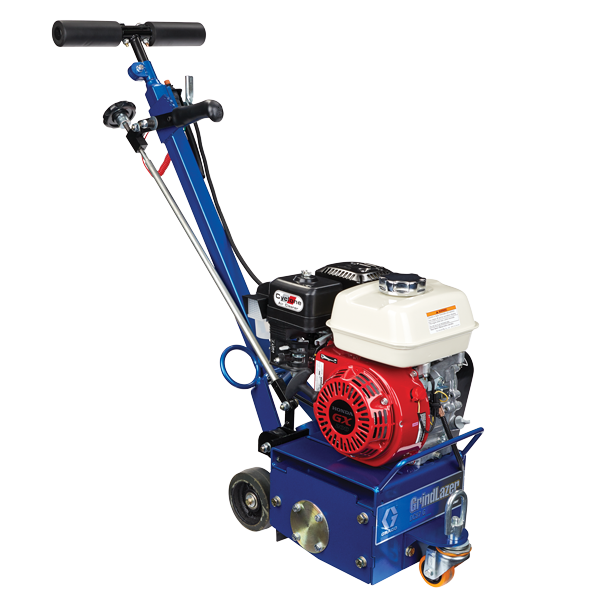

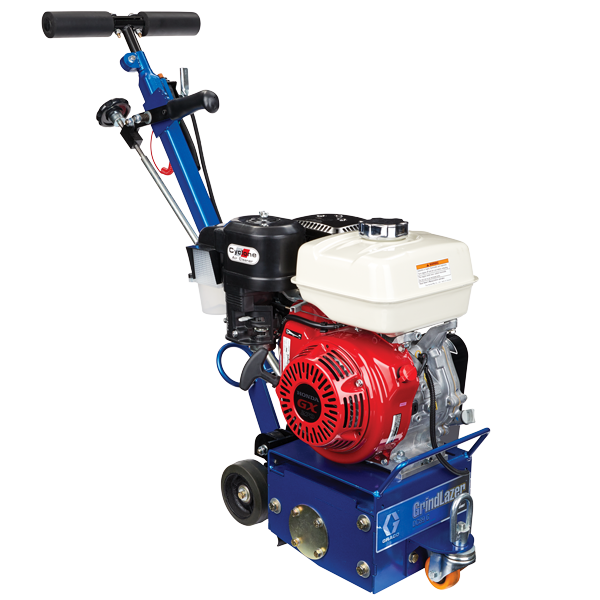

| Standard DC87 G | Standard DC89 G | |
| Part Number | 25M842 | 25M843 |
| Cutter Type | Drum | Drum |
| Max Working Width | 8 in | 8 in |
| Drum Diameter | 5 in | 5 in |
| Engine/Motor | 6.5 HP Honda | 9 HP Honda |
| Engine Start | Pull Start | Pull Start |
| Air Filter | Standard | Cyclone |
| Tach/Hour Meter | Yes | Yes |
| Max Cut Rate | 300 sq ft/hr | 400 sq ft/hr |
| Vacuum Port | Yes | Yes |
| Water Connection | Yes | Yes |
| Product Link | LEARN MORE | LEARN MORE |
GrindLazer
Professional Series
Typical Applications: Traffic Paint Removal, Thermoplastic Removal, Smoothing Uneven Surfaces, and Epoxy Removal
Pro Series |
|||||
 |
 |
 |
 |
 |
 |

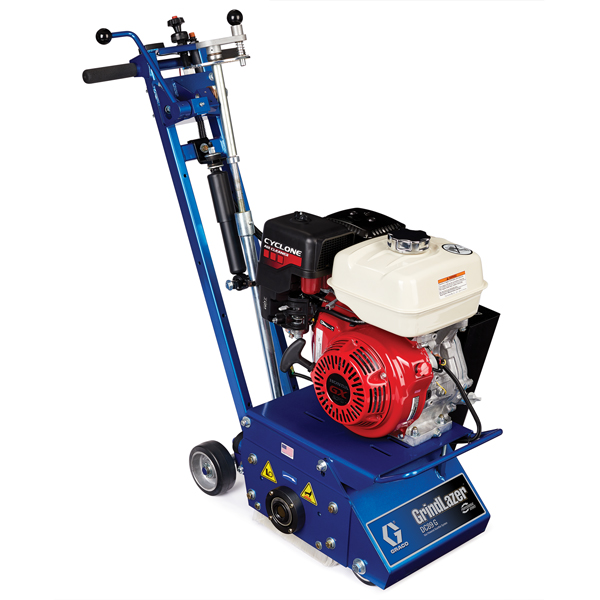

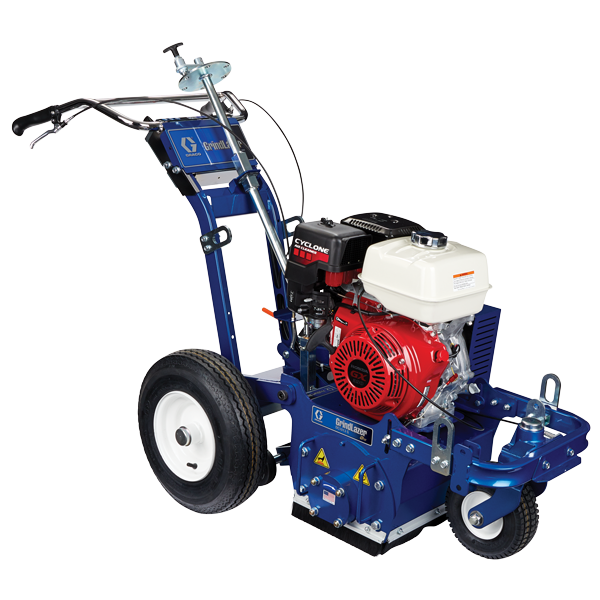

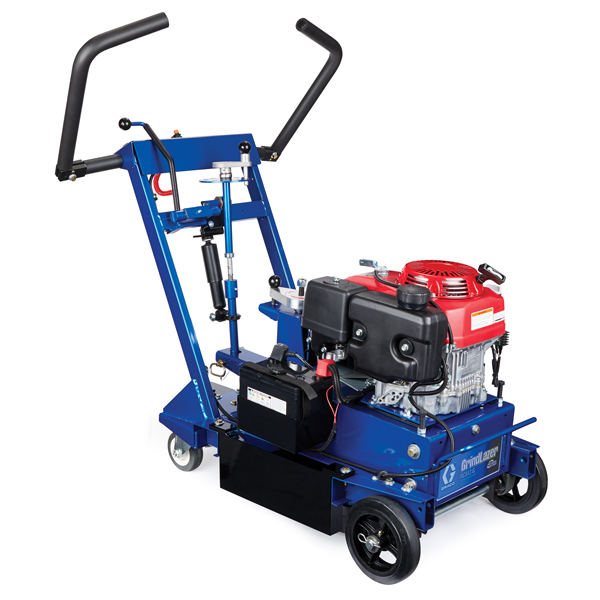

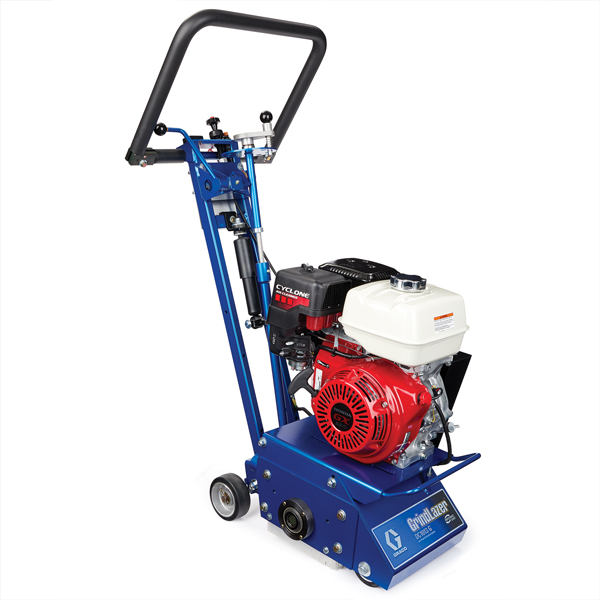

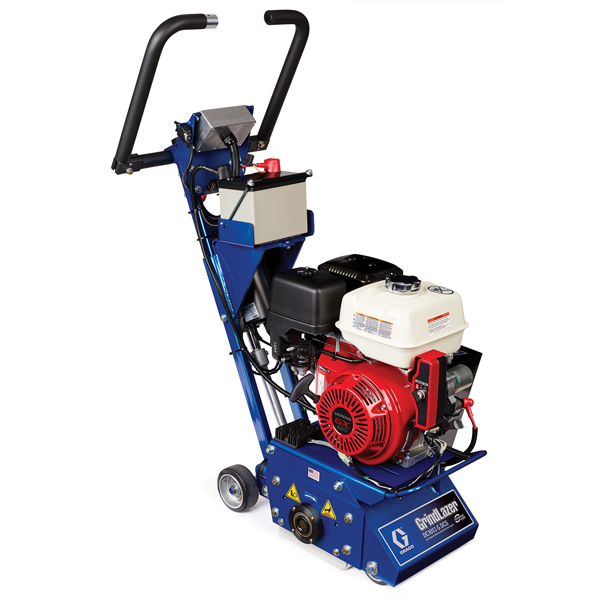

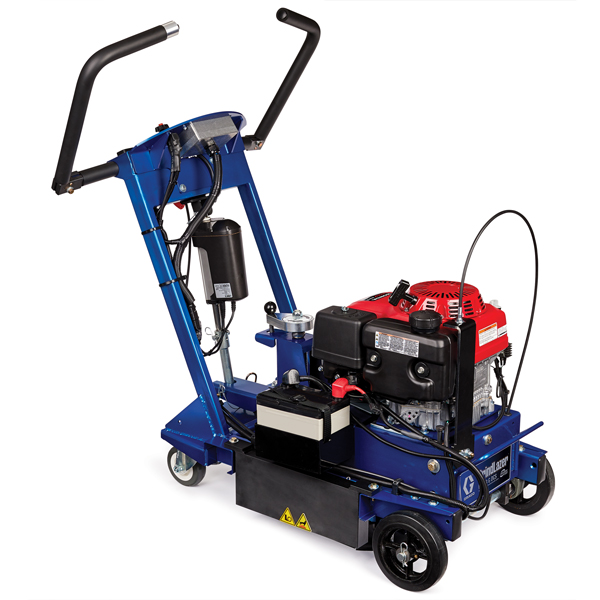

| Pro DC89 G | Pro DC1013 G | Pro DC1013 G DCS | Pro RC813 G | Pro RC813 G DCS | |
| Part Number | 25N667 | 25M846 | 25N668 | 25M847 | 25N669 |
| Cutter Type | Drum | Drum | Drum | Rotary | Rotary |
| Max Working Width | 8 in | 10 in | 10 in | 8 in | 8 in |
| Drum Diameter | 7 in | 7 in | 7 in | NA | NA |
| Engine/Motor | 9 HP Honda | 13 HP Honda | 13 HP Honda | 13 HP Honda | 13 HP Honda |
| Engine Start | Pull Start | Pull Start | Electric Start | Electric Start | Electric Start |
| Air Filter | Cyclone | Cyclone | Cyclone | Standard | Standard |
| Tach/Hour Meter | Yes | Yes | Yes | Yes | Yes |
| Max Cut Rate | 400 sq ft/hr | 700 sq ft/hr | 700 sq ft/hr | 800 sq ft/hr | 800 sq ft/hr |
| LineDriver Compatible | No | No | No | No | No |
| Vacuum Port | Yes | Yes | Yes | Yes | Yes |
| Water Connection | Optional | Optional | Optional | No | No |
| Depth Control System | No | No | Yes | No | Yes |
| Product Link | LEARN MORE | LEARN MORE | LEARN MORE | LEARN MORE | LEARN MORE |
GrindLazer
High Production Series
Typical Applications: High Production Removal Jobs including Leveling, Inlay, and All Surface Coatings
High Production Series |
|||||
 |
 |
 |
 |
 |
 |

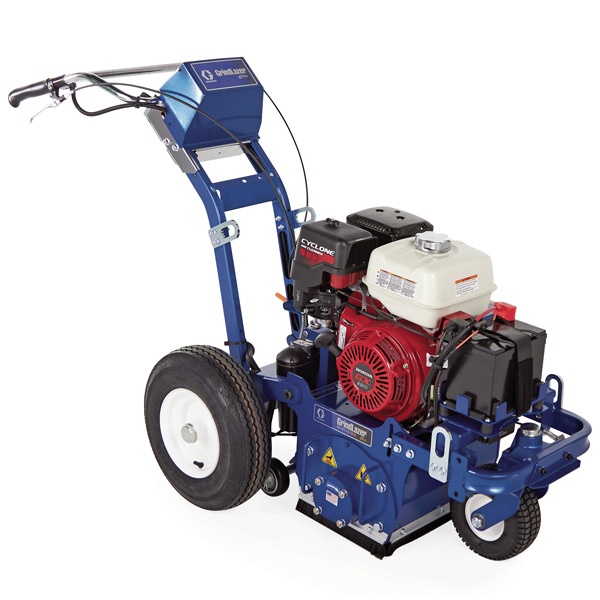

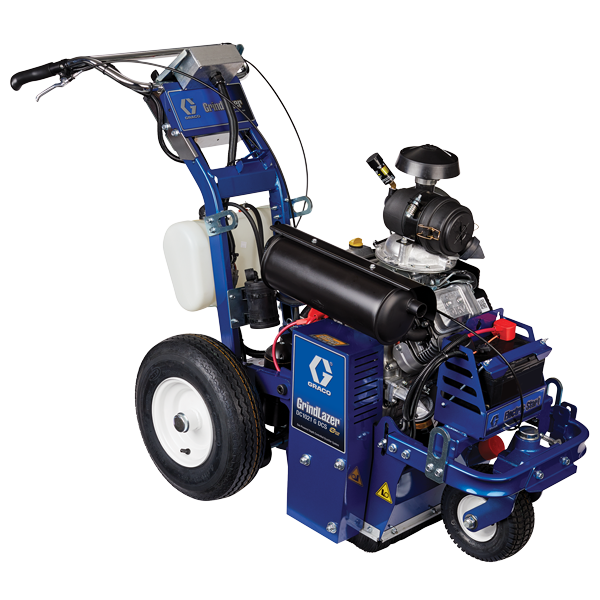

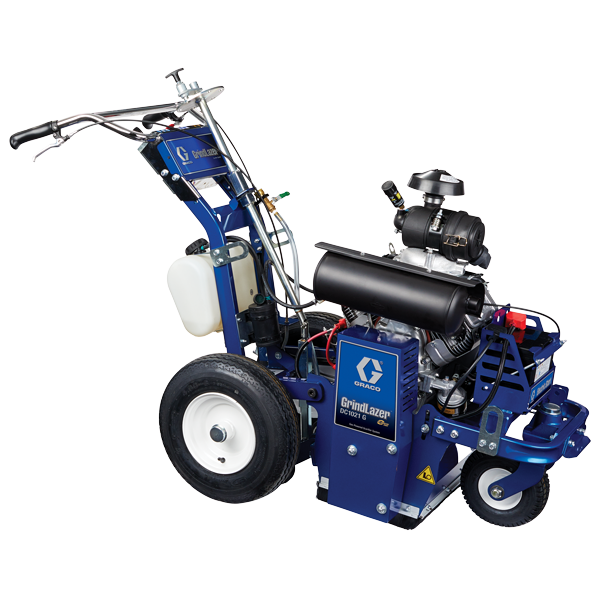

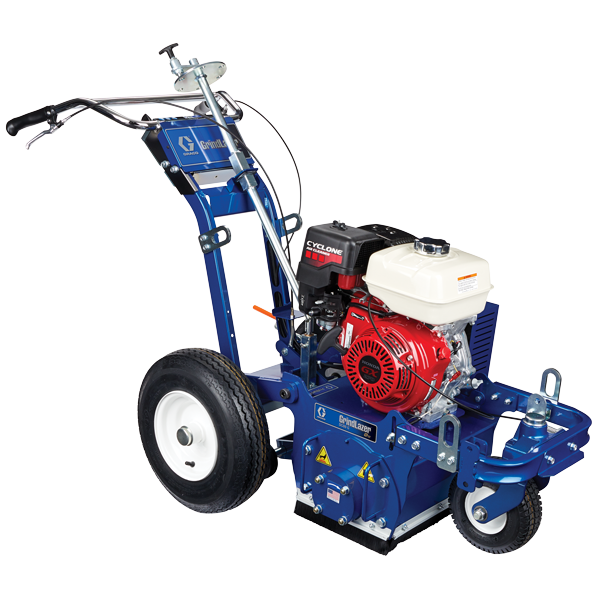

| HP DC89 G | HP DC1013 G | HP DC1013 G DCS | HP DC1021 G | HP DC1021 G DCS | |
| Part Number | 25M992 | 25M993 | 25N658 | 25M994 | 25N659 |
| Cutter Type | Drum | Drum | Drum | Drum, Reverse Cut | Drum, Reverse Cut |
| Max Working Width | 8 in | 10 in | 10 in | 10 in | 10 in |
| Cutter Drum Diameter | 7 in | 7 in | 7 in | 7 in | 7 in |
| Engine | 9 HP Honda | 13 HP Honda | 13 HP Honda | 21 HP Vanguard | 21 HP Vanguard |
| Engine Start | ProStart | ProStart | Electric Start | Electric Start | Electric Start |
| Air Filter | Cyclone | Cyclone | Cyclone | Donaldson Heavy-Duty | Donaldson Heavy-Duty |
| Tach/Hour Meter | Yes | Yes | Yes | Yes | Yes |
| Max Cut Rate | 600 sq ft/hr | 800 sq ft/hr | 800 sq ft/hr | NA | NA |
| LineDriver Compatible | Optional | Optional | Optional | Required | Required |
| Max Cut Rate w/ LineDriver | 1,300 sq ft/hr | 1,700 sq ft/hr | 1,700 sq ft/hr | 2,100 sq ft/hr | 2,100 sq ft/hr |
| Vacuum Port | Yes | Yes | Yes | Yes | Yes |
| Water Connection | Optional | Optional | Optional | Optional | Optional |
| Depth Control System | No | No | Yes | No | Yes |
| Product Link | LEARN MORE | LEARN MORE | LEARN MORE | LEARN MORE | LEARN MORE |
High Production Series |
|||||
|
 |
 |
 |
||

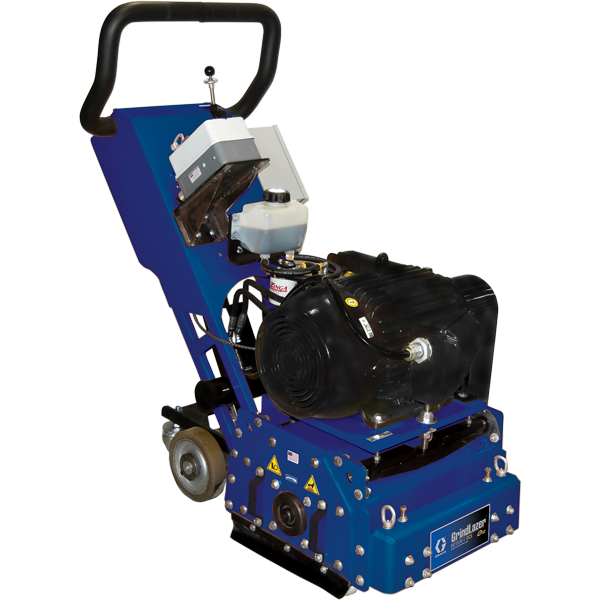

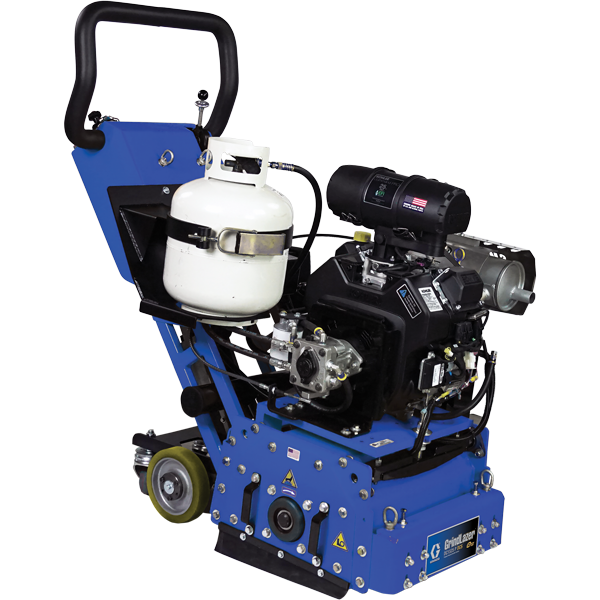

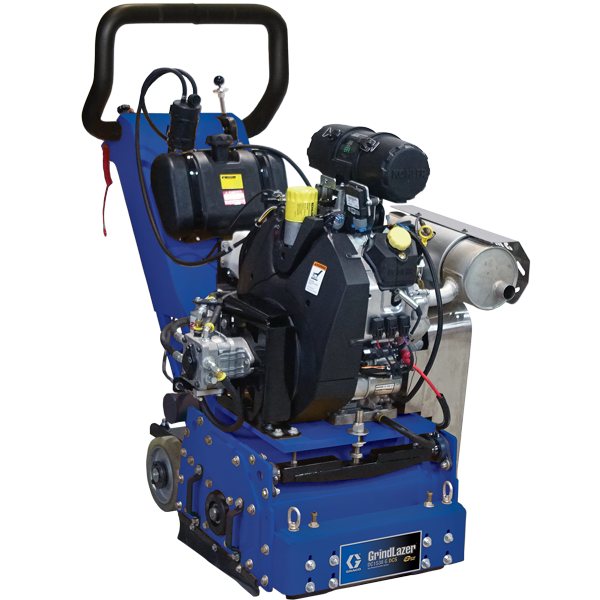

| HP DC1538 G DCS | HP DC1525 P DCS | HP DC1520 E DCS | |||
| Part Number with Low-Speed Pulley Kit | 25R100 | 25R101 | 25R102 | ||
| Part Number with High-Speed Pulley Kit | 25P474 | 25P475 | 25P476 | ||
| Cutter Type | Drum | Drum | Rotary | ||
| Max Working Width | 16 in | 16 in | 16 in | ||
| Cutter Drum Diameter | 10 in | 10 in | 10 in | ||
| Tach/Hour Meter | Yes | Yes | Yes | ||
| Motor/Engine | 38 HP Kohler EFI Gas | 25 HP Kohler EFI Propane | 20 HP, 480V, 3ph | ||
| Engine Start | Electric Start | Electric Start | NA | ||
| Air Filter | Heavy-Duty | Heavy-Duty | NA | ||
| Electronic Depth Control System | Yes | Yes | Yes | ||
| Max Cut Rate | 3,500 sq ft/hr | 3,500 sq ft/hr | 3,500 sq ft/hr | ||
| Vacuum Ports | 2 | 2 | 2 | ||
| Product Link | LEARN MORE | LEARN MORE | LEARN MORE | ||
High Production Series |
|||||
|
 |
 |
 |
||

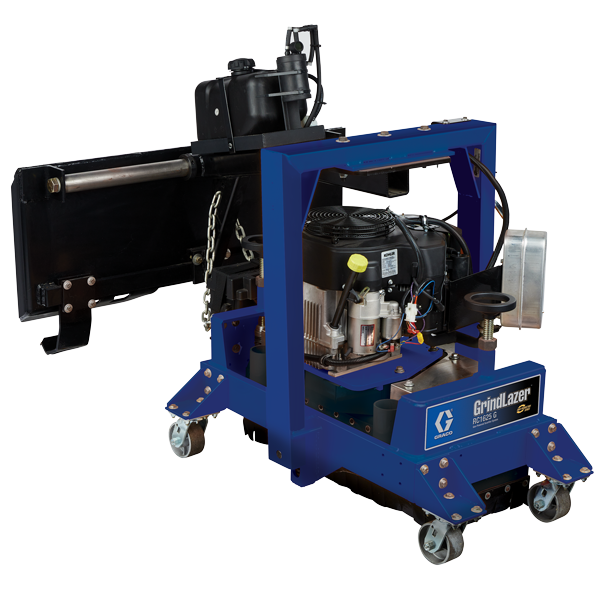

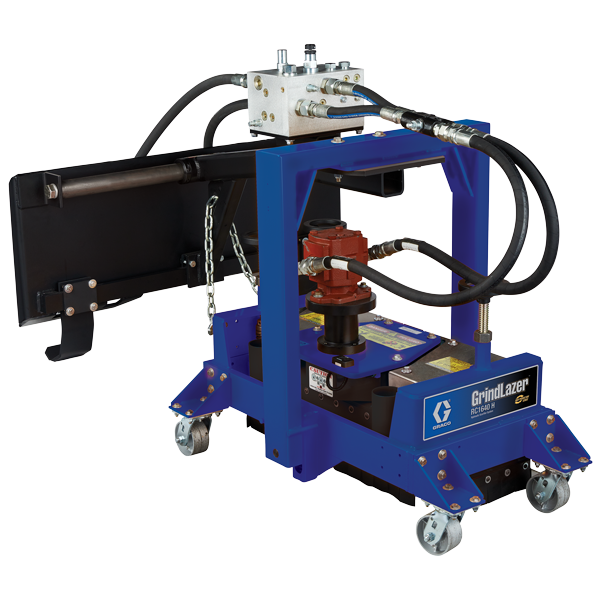

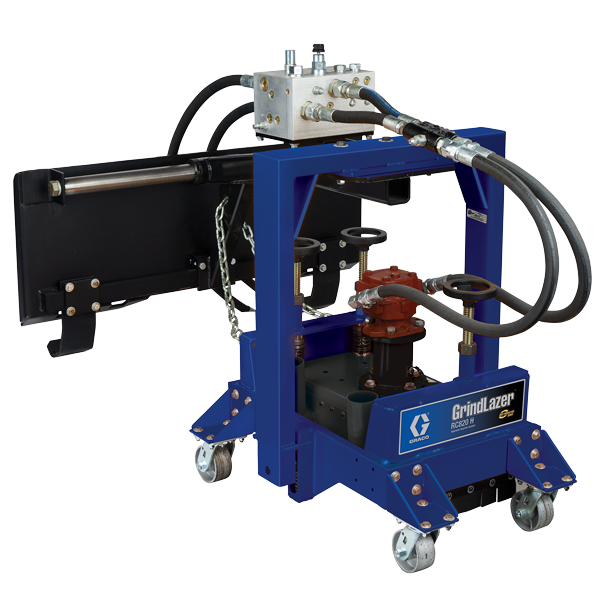

| HP RC820 H | HP RC1640 H | HP RC1625 G | |||
| Part Number | 25P471 | 25P472 | 25P473 | ||
| Cutter Type | Rotary | Rotary | Rotary | ||
| Max Working Width | 8 in | 16 in | 16 in | ||
| Tach/Hour Meter | Yes | Yes | Yes | ||
| Motor/Engine | 20 HP Hydraulic | 40 HP Hydraulic | 25 HP Kohler Gas | ||
| Engine Start | NA | NA | Electric Start | ||
| Air Filter | NA | NA | Standard | ||
| Universal Skid Loader Connection | Yes | Yes | Yes | ||
| Max Cut Rate | 1,000 sq ft/hr | 2,400 sq ft/hr | 2,400 sq ft/hr | ||
| Vacuum Port | Yes | Yes | Yes | ||
| Product Link | LEARN MORE | LEARN MORE | LEARN MORE | ||
LazerVac
Powerful Vacuums to Add to Your Grinders, Scarifiers, Line Removers, or Saws
Cyclone Separators
Add to a LazerVac for Increased Capacity
Cyclone 20
Cyclone 32
