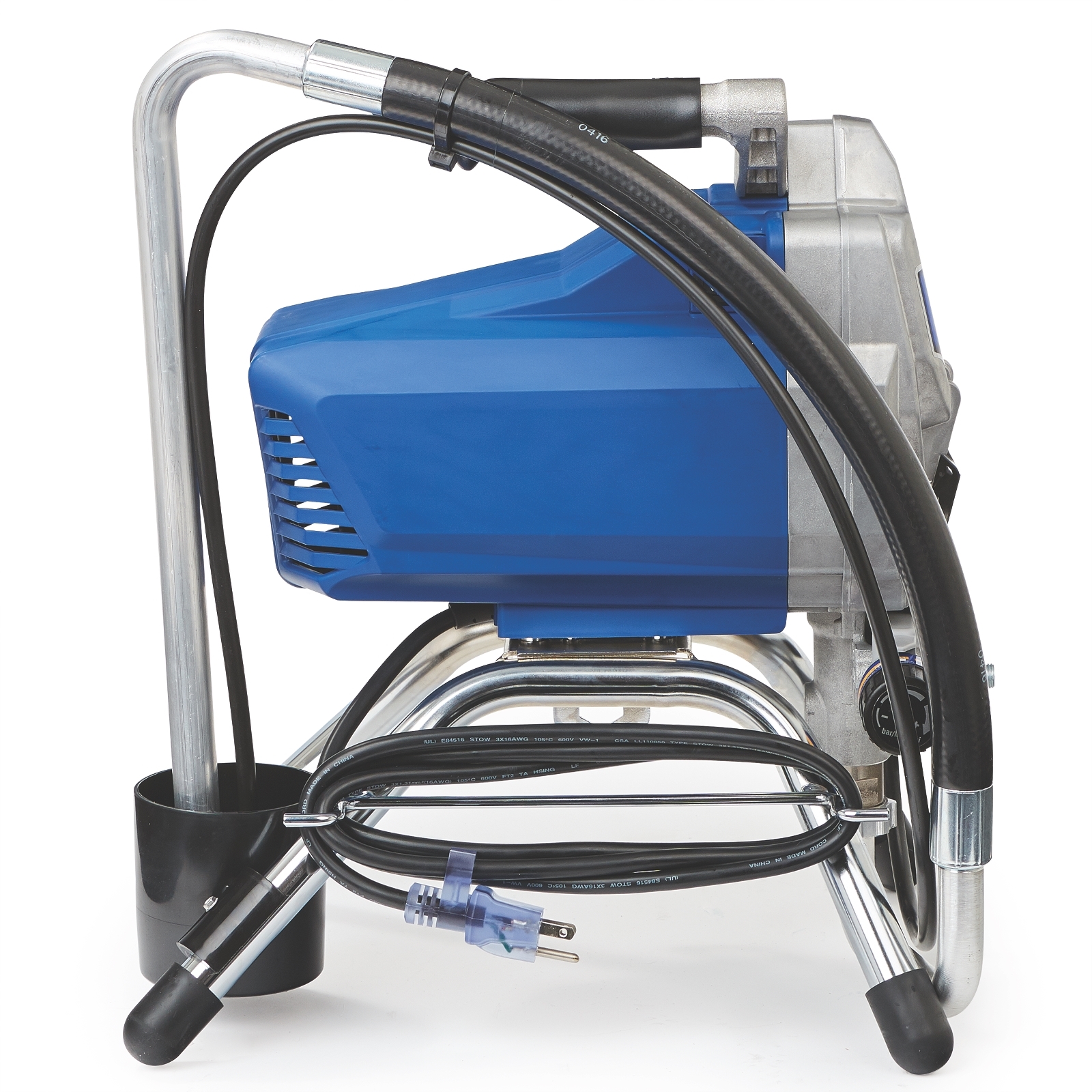

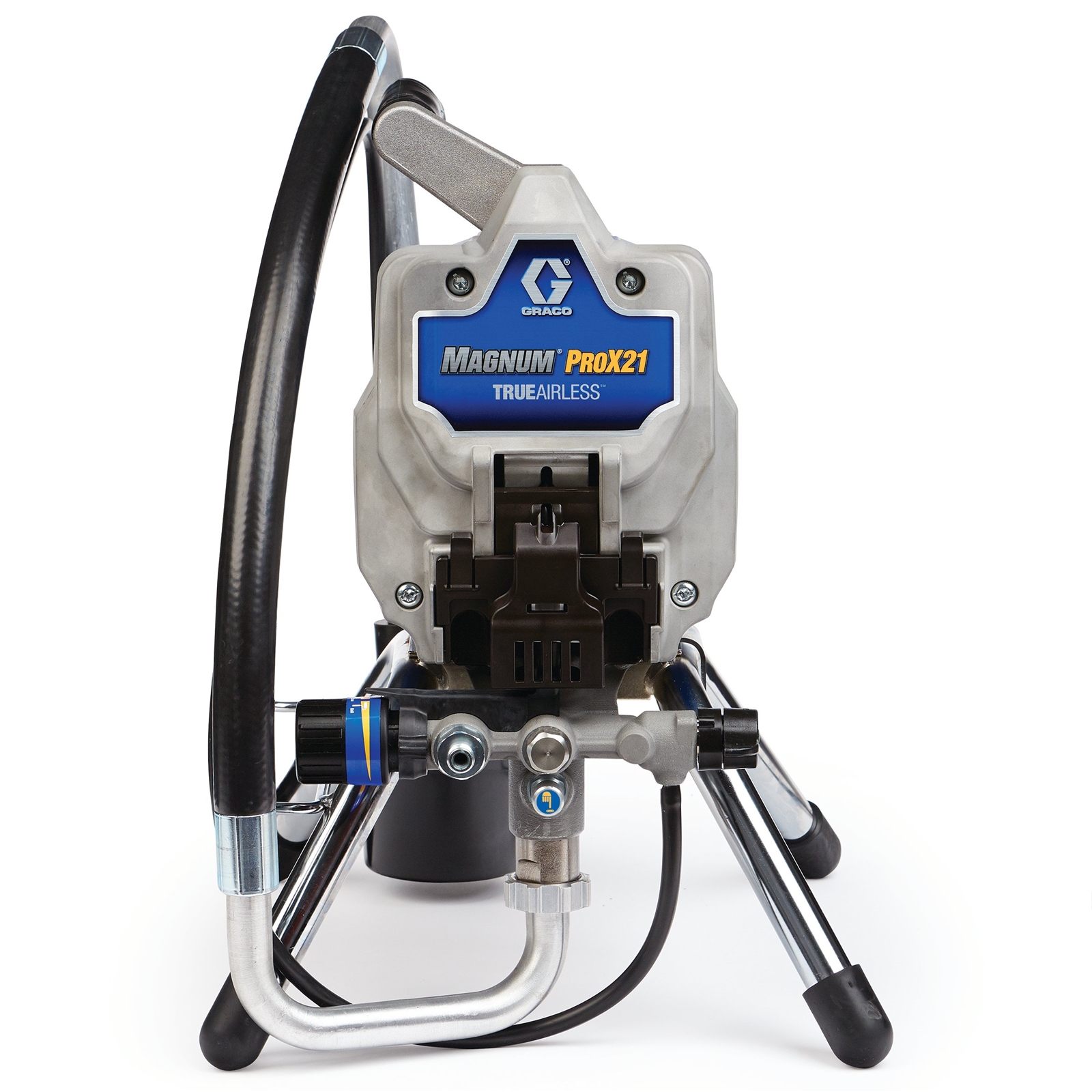

Magnum ProX21

Magnum ProX21 Electric TrueAirless Sprayer, Stand

Part Number: 17G181

The ProX21 airless sprayer is the solution for property maintenance pros, remodelers, and general contractors with fast-paced projects. Avoid downtime with the ability to quickly swap the pump on the job without tools. Spray heavier materials and hot solvents, including solvent-based lacquer.
$909.00
USD MSRP
Product is Discontinued

Replacement Product Not Available


Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Quick Operation Videos

Features

Product Brochure
The ProX21 airless sprayer is the solution for property maintenance pros, remodelers, and general contractors with fast-paced projects. Avoid downtime with the ability to quickly swap the pump on the job without tools. Spray heavier materials and hot solvents, including solvent-based lacquer.
  • ProX Stainless Steel Piston Pump - For greater reliability and long life
  • ProXChange Pump System - Eliminates downtime with quick, no-tools pump replacement on-the-job
  • Longer Pump Stroke - Supports a 0.021 in tip to spray heavier material
  • DC Motor - Supports longer extension cords and up to 200 feet of airless hose
  • Hot Solvent Compatible - Handles hot solvents such as solvent-based lacquer
  • PushPrime - Fast and reliable start-up every time
  • SG3 Metal Spray Gun - Premium spray gun with hose swivel making it easy to manage longer hose lengths
  • TrueAirless Spray Tip with SoftSpray Technology - greater control and less overspray with a wide range of coatings
  • Durable Welded Frame - Easy to transport around the job site
  • Adjustable Pressure - Easy control of paint flow

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 12
Compatible Tip Size (in) 0.009, 0.011, 0.013, 0.015, 0.017, 0.019, 0.021
Construction Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE
Engine Size (HP) 0.875
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Stand
Includes SG3 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 50 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.47
Maximum Tip Size (in) 0.021
Maximum Tip Size 1 Gun (in) 0.021
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (psi) 3000
Minimum Generator Power (W) 2500
Model Magnum
Motor Type DC
Number of Guns 1
Outlet Paint Filter InstaClean
Overall Height (in) 18.4
Overall Length (in) 16.7
Overall Width (in) 13.5
Phase 1
Power Rating (HP) 0.875
Power Rating (W) 653
Power Rating (kW) 0.65
Power Source Electric
Pressure Control Type Adjustable
Product Series Pro
Pump Mount Type ProXchange
Pump Rod Type Stainless Steel
Pump Sleeve Material Stainless Steel
Pump Type ProX Piston Pump
Recommended Annual Usage (gal) 800
Series ProX21
Type Airless Sprayer
Voltage (V) 120
Weight (lb) 25
Amperage (A) 12
Compatible Tip Size (in) 0.009, 0.011, 0.013, 0.015, 0.017, 0.019, 0.021
Construction Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration Stand
Includes SG3 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 50 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide
Inlet Paint Strainer 35 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 1.8
Maximum Tip Size (in) 0.021
Maximum Tip Size 1 Gun (in) 0.021
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20700
Maximum Working Pressure (psi) 3000
Minimum Generator Power (W) 2500
Model Magnum
Motor Type DC
Number of Guns 1
Outlet Paint Filter InstaClean
Overall Height (cm) 46.7
Overall Height (mm) 467
Overall Length (cm) 42.4
Overall Length (mm) 424
Overall Width (cm) 34.3
Overall Width (mm) 343
Phase 1
Power Rating (W) 653
Power Rating (kW) 0.65
Power Source Electric
Pressure Control Type Adjustable
Product Series Pro
Pump Mount Type ProXchange
Pump Rod Type Stainless Steel
Pump Sleeve Material Stainless Steel
Pump Type ProX Piston Pump
Series ProX21
Type Airless Sprayer
Voltage (V) 120
Weight (kg) 11

What's Included

Part No. Description Qty Unit
243012 SG3 Metal Spray Gun 1 ea
TRU515 TrueAirless 515 Spray Tip 1 ea
237859 Spray Tip Guard 1 ea
247340 DuraFlex Hose 1/4 in x 50 ft 1 ea
25M568 FLUID, PUMP ARMOR, 8OZ 1 ea

Repair Parts

Part No. Description
17J173 Magnum ProX Paint Sprayer Replacement Cord
119276 Replacement Fuse
17J719 HOSE, SUCTION
17K684 Repair Kit, Motor, Series A, ProX21 Stand/Cart
17J881 Repair Kit, Pressure Control, ProX17, ProX19, Prox21 Stand/Cart
24Y329 Repair Kit, Switch, ProX17, ProX19, ProX21 Stand/Cart
235014 Spray Prime/Drain Valve Kit
17J884 KIT, TUBE, DRAIN
17J867 Repair Kit, Control Board, ProX17, ProX19, ProX21 Stand/Cart
17J874 Magnum ProX Pump Assembly Replacement Kit
