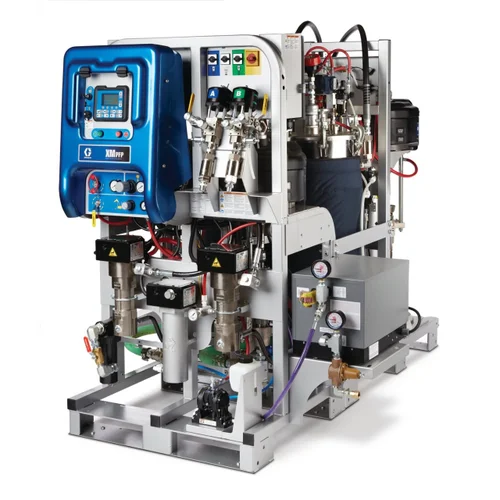

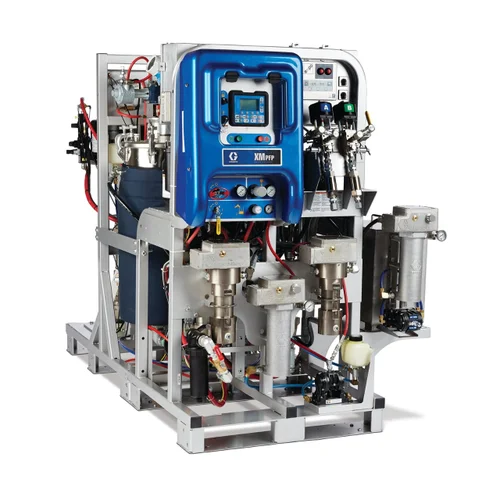

XM PFP
Designed for the application of epoxy intumescent fire protection coatings, the Graco XM PFP is the first and only system that is ATEX and IECEx certified for use in explosive atmospheres; it is rated for both electrical and mechanical construction.
TECHNOLOGY THAT BOOSTS PRODUCTIVITY
- Weight-based operation for fast, easy ratio assurance (within +/– 5%)
- Save time with fast ratio checks – less than 90 seconds
- Consistent temperature control, fast start-up times due to performance of heating system
- Easy user controls and data reporting
- Ensures accurate, on-ratio mixing to reduce material waste, handles two-part materials from 1:1 to 10:1
Heat Control
- Easy to use "set and forget" temperature controls
- Maintains consistent temperatures for primary A & B heaters and heated hose
- Helps prevent overheating of temperature sensitive materials
Heated Pressure Pots
- Uses circulating water for maximum heat transfer
- Conditions and feeds material into proportioner
- 76 litre (20-gal)
Viscon® HF Heaters
- Explosion proof
- Supports high production rates
- 5400 W - high efficiency core
- Cleanable design
- Set and forget fluid temperature
Heated Hose Set
- Set-and-forget hose temperature
- Heated mix manifold
- Provides faster spray pattern and reduced waste
Intuitive User Controls
- Displays ratio readings in real time for ultimate spraying control
- USB drive for data reporting
- Displays current tank levels and spray temperatures
