Gusmer GH-2

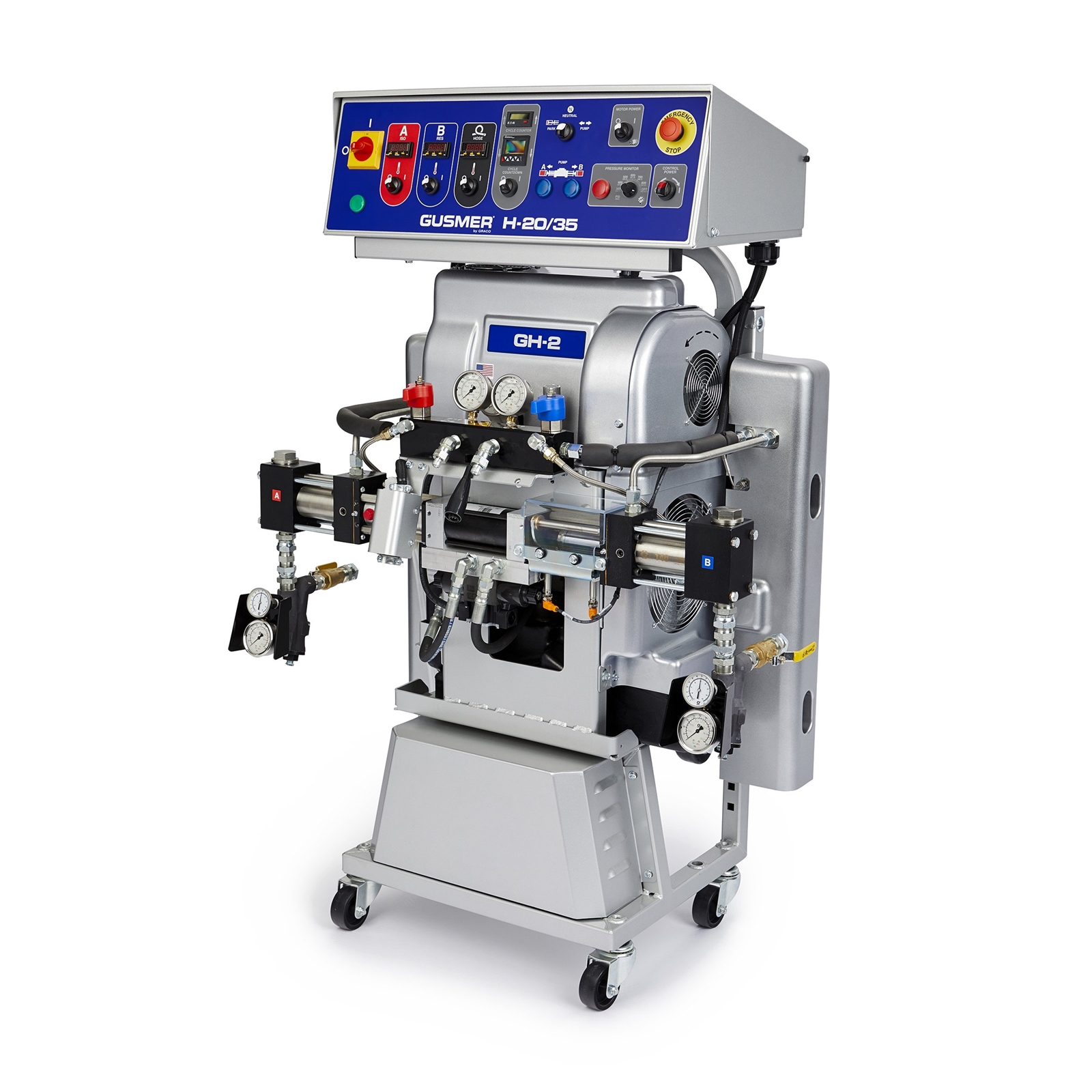

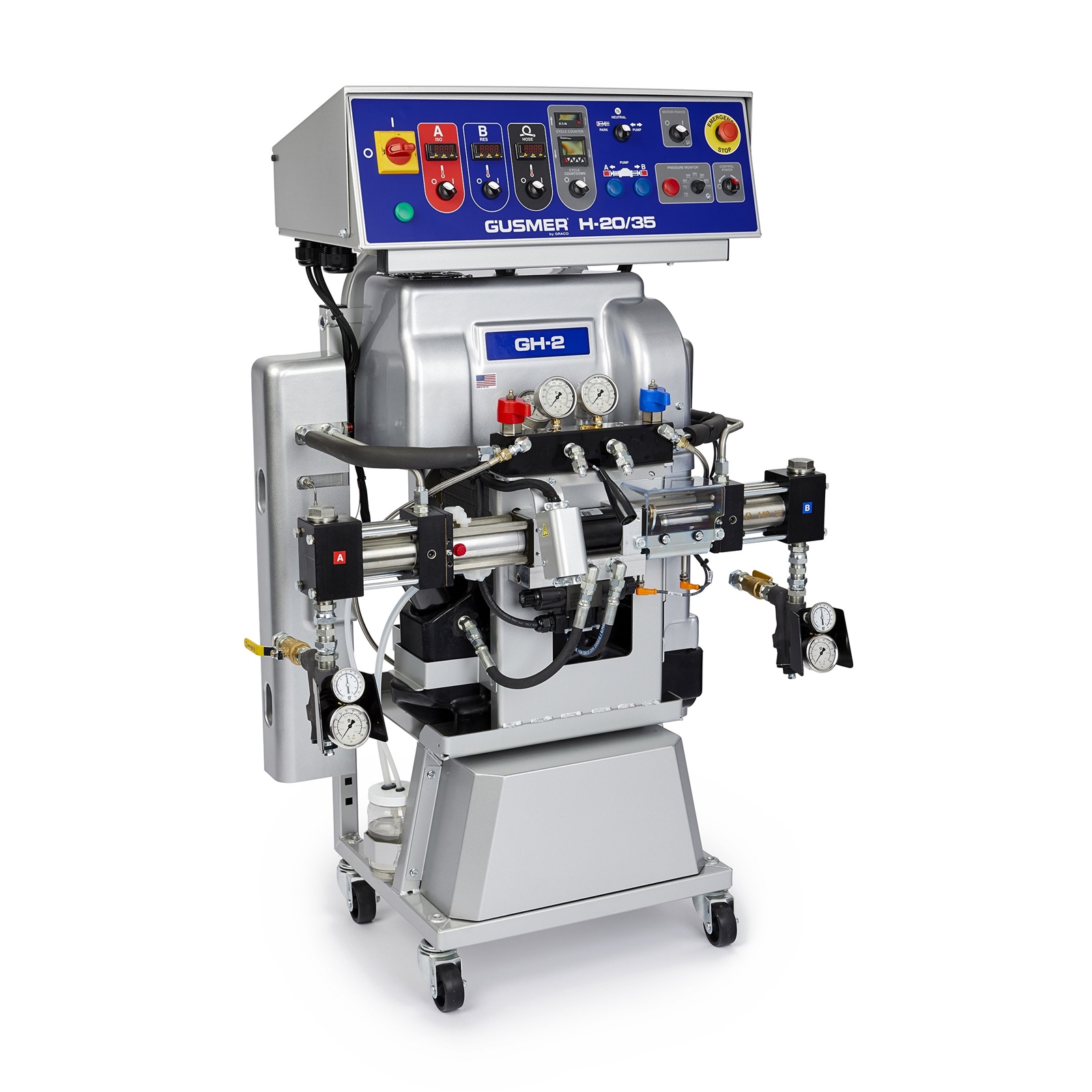

Gusmer GH-2 Proportioner Package, Fusion AP Gun, Heated Hose with Scuff Guard, 10 kW, 230 V, 3PH
Part Number: APC201
Gusmer GH-2
Gusmer GH-2 Proportioner Package, Fusion AP Gun, Heated Hose with Scuff Guard, 10 kW, 230 V, 3PH
Part Number: APC201
Guided by both simplicity and reliability, Gusmer's point-to-point wired electrical cabinet sits atop Graco's industry-proven hydraulic Reactor 2 chassis, including the Reactor horizontal pump line, fluid heaters, and hydraulic system. The Gusmer GH-2 hydraulic proportioner: a simple, durable machin...
More InfoFeatures
Product Brochure
Guided by both simplicity and reliability, Gusmer's point-to-point wired electrical cabinet sits atop Graco's industry-proven hydraulic Reactor 2 chassis, including the Reactor horizontal pump line, fluid heaters, and hydraulic system. The Gusmer GH-2 hydraulic proportioner: a simple, durable machine offering impressive performance at an attractive price.
Ideal for a wide range of spray foam applications, including residential insulation, commercial wall insulation, roof insulation, rim and band joist and even concrete lifting.

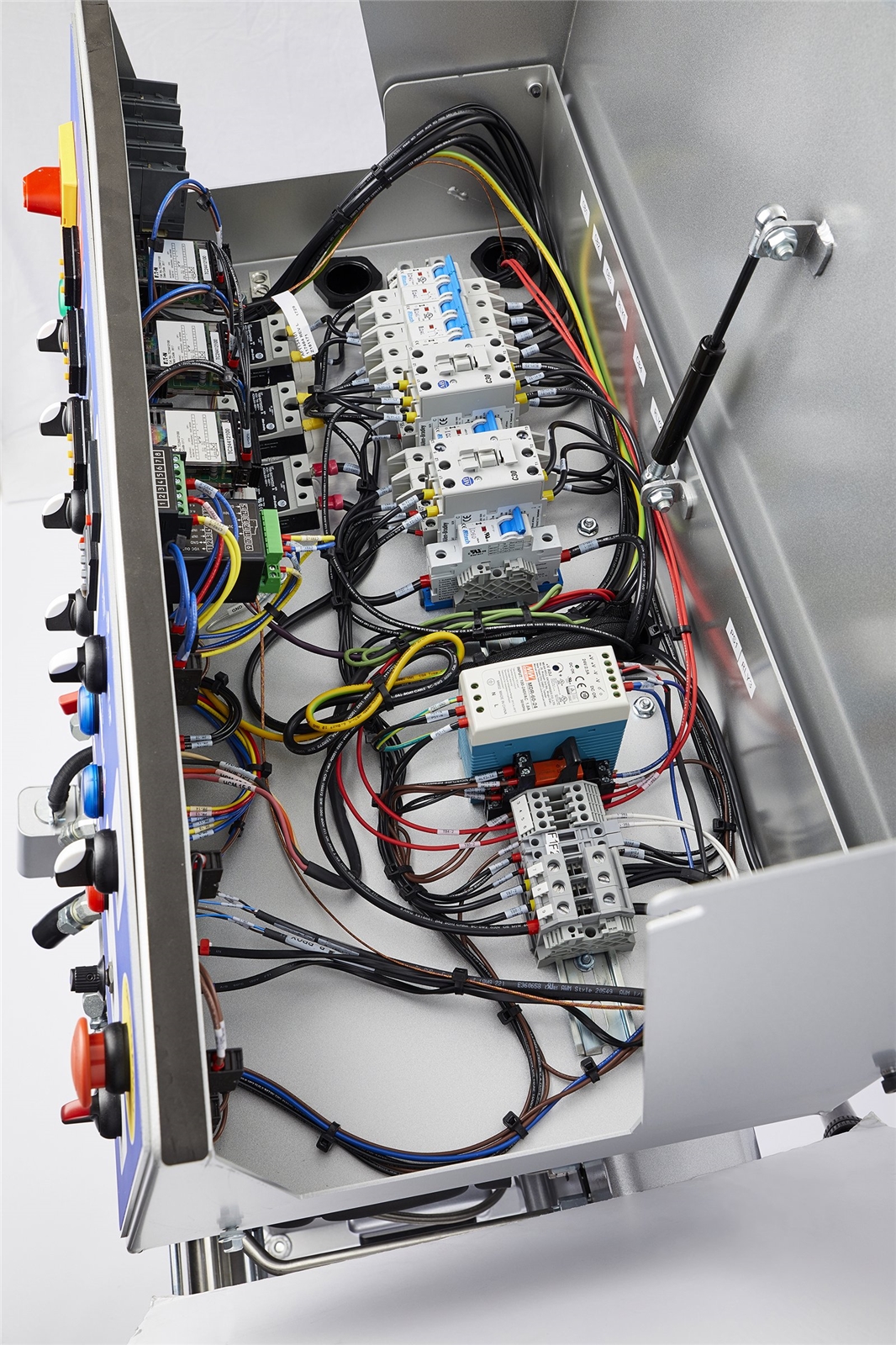

- The Gusmer system features easy access and service to the electrical cabinet. With standard off-the-shelf hardware it’s an easy-to-use and easy-to-maintain design.
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 46 |
|---|---|
| Application | Spray Foam |
| Applicator Type | Manual |
| Compatible Material | Plural Components |
| Construction | Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Fluoroelastomer, PTFE, UHMWPE |
| Flush Type | Solvent |
| Frequency (Hz) | 50;60 |
| Gun Type | Fusion AP |
| Hose Length (ft) | 50, 10 |
| Hose Package | Single Hose |
| Includes | Proportioner, Fusion AP Gun, Heated Hose with Scuff Guard, Heated Whip Hose |
| Material Application | Polyurethane Foam |
| Maximum Flow Rate (lb/min) | 28 |
| Maximum Fluid Temperature (°F) | 190 |
| Maximum Mix Ratio | 1:1 |
| Model | Gusmer |
| Overall Depth (in) | 21 |
| Overall Height (in) | 54 |
| Overall Width (in) | 32 |
| Phase | 3 |
| Power Rating (HP) | 13.41 |
| Power Rating (W) | 10000 |
| Power Rating (kW) | 10 |
| Power Source | Hydraulic |
| Pressure Type | High Pressure |
| Product Type | Plural Component |
| Series | GH-2 |
| Sound Pressure Level (dB(A)) | 82.6 |
| Type | Proportioner Package |
| Voltage (V) | 230 3 PH |
| Weight (lb) | 585 |
| Amperage (A) | 46 |
| Application | Spray Foam |
| Applicator Type | Manual |
| Compatible Material | Plural Components |
| Construction | Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Fluoroelastomer, PTFE, UHMWPE |
| Flush Type | Solvent |
| Frequency (Hz) | 50;60 |
| Gun Type | Fusion AP |
| Hose Length (m) | 15.2, 3 |
| Hose Package | Single Hose |
| Includes | Proportioner, Fusion AP Gun, Heated Hose with Scuff Guard, Heated Whip Hose |
| Material Application | Polyurethane Foam |
| Maximum Flow Rate (kg/min) | 12.7 |
| Maximum Fluid Temperature (°C) | 88 |
| Maximum Mix Ratio | 1:1 |
| Model | Gusmer |
| Overall Depth (cm) | 53.3 |
| Overall Depth (mm) | 533 |
| Overall Height (cm) | 137.2 |
| Overall Height (mm) | 1372 |
| Overall Width (cm) | 81.3 |
| Overall Width (mm) | 813 |
| Phase | 3 |
| Power Rating (W) | 10000 |
| Power Rating (kW) | 10 |
| Power Source | Hydraulic |
| Pressure Type | High Pressure |
| Product Type | Plural Component |
| Series | GH-2 |
| Sound Pressure Level (dB(A)) | 82.6 |
| Type | Proportioner Package |
| Voltage (V) | 230 3 PH |
| Weight (kg) | 265 |
