GX-7 Direct Impingement

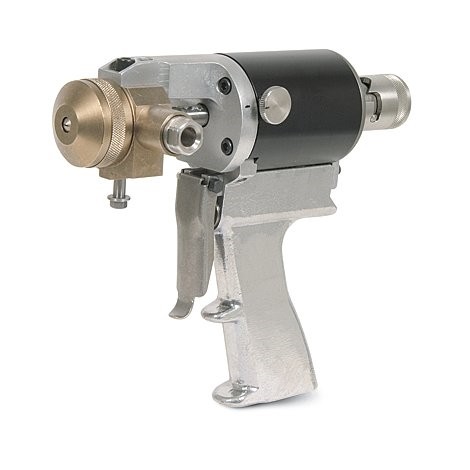

Gusmer GX-7 DI Spray Gun
Part Number: 299036
GX-7 Direct Impingement
Gusmer GX-7 DI Spray Gun
Part Number: 299036
The GX7-DI Gun features direct impingement mixing, which provides a superior surface finish for polyurea applications. Its spray tip and gun block feature a non-stick coating for easy maintenance.
Product is Discontinued
Replacement Product Not Available
Features
Product Brochure
The GX7-DI Gun features direct impingement mixing, which provides a superior surface finish for polyurea applications. Its spray tip and gun block feature a non-stick coating for easy maintenance.
Ideal for low to medium output foam applications.
- A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application
- Lightweight, easy to operate and maintain
- Mechanically self-cleaning so you eliminate costly solvent-flushing
- Air cap allows for easy cleaning of the purge rod
- Lightweight design reduces operator fatigue
- Pattern control knob allows for fine tune adjustments
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Type | NPT |
| Compatible Material | Polyurea |
| Component A Inlet Size (in) | 1/2-20 |
| Component A Inlet Thread Type | UNF |
| Component B Inlet Size (in) | 9/16 |
| Component B Inlet Thread Type | UNF |
| Gun Activation | Manual |
| Gun Type | Airless Gun |
| Gun Weight (lb) | 4.1 |
| Includes | Mix Module, Tip |
| Maximum Air Inlet Pressure (MPa) | 0.86 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Air Pressure (MPa) | 0.86 |
| Maximum Air Pressure (psi) | 3500 |
| Maximum Flow Rate (lb/min) | 22 |
| Maximum Fluid Pressure (MPa) | 24 |
| Maximum Fluid Pressure (psi) | 3500 |
| Maximum Fluid Working Pressure (MPa) | 24 |
| Maximum Fluid Working Pressure (psi) | 3500 |
| Minimum Air Inlet Pressure (MPa) | 0.7 |
| Minimum Air Inlet Pressure (psi) | 100 |
| Minimum Flow Rate (lb/min) | 4 |
| Model | GX-7 |
| Overall Height (in) | 9.5 |
| Overall Length (in) | 9 |
| Overall Width (in) | 4.5 |
| Pressure Type | High Pressure |
| Purge Method | Mechanical |
| Series | Direct Impingement |
| Spray Gun Mix Type | Impingement |
| Spray Pattern | Fan |
| Type | Spray Gun |
| Wetted Parts | Aluminum, Stainless Steel, Plated Carbon Steel, Fluorocarbon O-Rings |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPT |
| Compatible Material | Polyurea |
| Component A Inlet Size (in) | 1/2-20 |
| Component A Inlet Thread Type | UNF |
| Component B Inlet Size (in) | 9/16 |
| Component B Inlet Thread Type | UNF |
| Gun Activation | Manual |
| Gun Type | Airless Gun |
| Gun Weight (kg) | 1.9 |
| Includes | Mix Module, Tip |
| Maximum Air Inlet Pressure (MPa) | 0.86 |
| Maximum Air Inlet Pressure (bar) | 8.6 |
| Maximum Air Inlet Pressure (kPa) | 860 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Air Pressure (MPa) | 0.86 |
| Maximum Air Pressure (bar) | 8.6 |
| Maximum Air Pressure (kPa) | 860 |
| Maximum Air Pressure (psi) | 3500 |
| Maximum Flow Rate (kg/min) | 10 |
| Maximum Fluid Pressure (MPa) | 24 |
| Maximum Fluid Pressure (bar) | 240 |
| Maximum Fluid Pressure (kPa) | 24000 |
| Maximum Fluid Pressure (psi) | 3500 |
| Maximum Fluid Working Pressure (MPa) | 24 |
| Maximum Fluid Working Pressure (bar) | 240 |
| Maximum Fluid Working Pressure (psi) | 3500 |
| Minimum Air Inlet Pressure (MPa) | 0.7 |
| Minimum Air Inlet Pressure (bar) | 6.9 |
| Minimum Air Inlet Pressure (kPa) | 690 |
| Minimum Air Inlet Pressure (psi) | 100 |
| Minimum Flow Rate (kg/min) | 1.8 |
| Model | GX-7 |
| Overall Height (cm) | 24 |
| Overall Height (mm) | 240 |
| Overall Length (cm) | 23 |
| Overall Length (mm) | 230 |
| Overall Width (cm) | 11 |
| Overall Width (mm) | 110 |
| Pressure Type | High Pressure |
| Purge Method | Mechanical |
| Series | Direct Impingement |
| Spray Gun Mix Type | Impingement |
| Spray Pattern | Fan |
| Type | Spray Gun |
| Wetted Parts | Aluminum, Stainless Steel, Plated Carbon Steel, Fluorocarbon O-Rings |
Product Manuals
311321Z, Manual, GX-7A, GX-7 DI, and GX-7 400 Spray Guns, Instructions, English
(2 MB)
(English Only)
